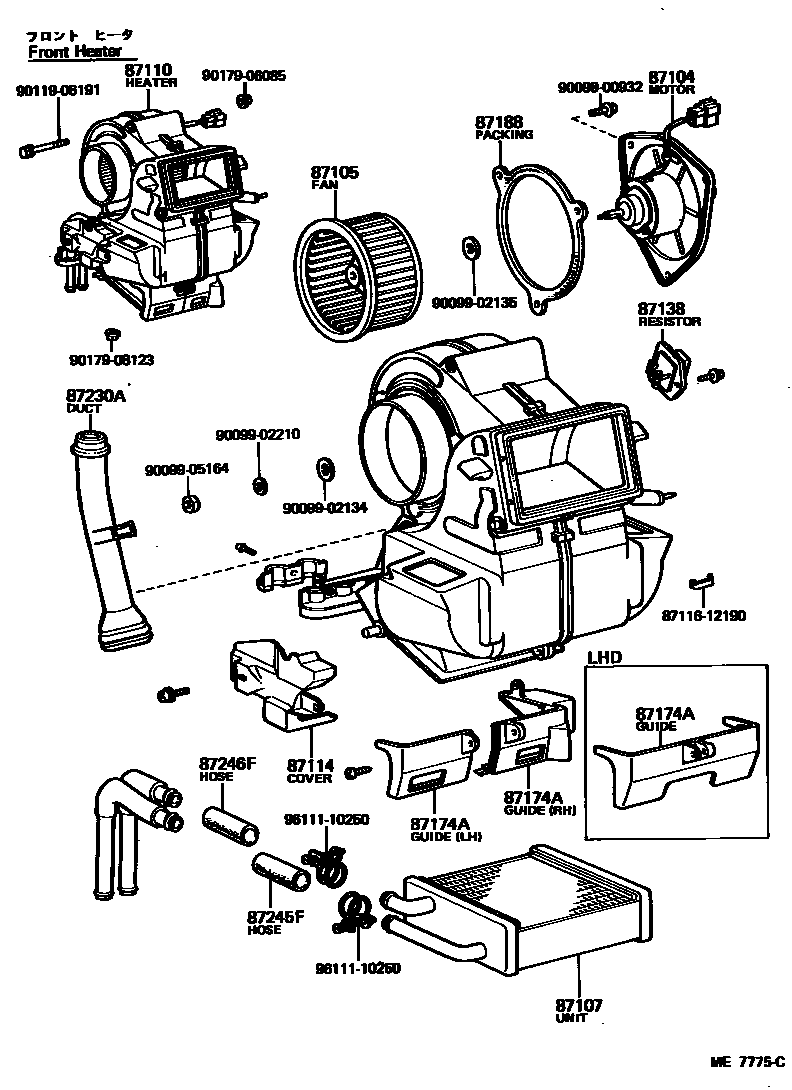

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-95400iBY3#198009-198507

main87104-95401iJY30,LY2#,3#,RY2#,3#197903-198507

12V

main87104-95402iBY3#198009-198507

W/COOLER

sub88550-95A06

main87104-95402iBY3#,JY30,LY2#,3#197903-198507

24V,HEAVY DUTY

sub88550-95A06

main87104-95403iJY30,LY2#,3#,RY21,32197903-198507

12V,W/COOLER

main87104-95403iRY2#,3#197903-198507

12V,HEAVY DUTY

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12030iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95400iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

sub87107-95401

main87107-95401iBY3#,JY30,LY2#,3#,RY21,32197903-198507

HEAVY DUTY

sub87107-95405

87110HEATER ASSY

main87110-95010iLY2#,3#,RY21,32197903-198507

12V

main87110-95013iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198507

24V,HEAVY DUTY

main87110-95017iRY2#,3#197903-198507

12V,HEAVY DUTY

main87110-95020iBY31198009-198507

main87110-95021iBY30198009-198308

W/SIDE DEFROSTER

main87110-95023iJY30198007-198308

12V,W/SIDE DEFROSTER

87114COVER, HEATER

main87173-12030iBY30,JY30,LY20,30,RY20,31197903-198507

87138RESISTOR, HEATER BLOWER

main87138-87003iJY30,LY2#,3#,RY2#,3#197903-198507

12V

main87138-87004iJY30,LY20,30,RY20,31197903-198507

12V,W/COOLER

main87138-87004iRY2#,3#197903-198507

12V,HEAVY DUTY

main87138-95400iBY3#198009-198507

main87138-95402iBY3#,JY30,LY2#,3#197903-198507

24V,HEAVY DUTY

sub87138-37100

main87138-95402iBY3#198009-198507

W/COOLER

sub87138-37100

87174AGUIDE, AIR HEATER

main87174-95010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

RH

main87175-95010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

LH

87188PACKING, HEATER BLOWER MOTOR

main87128-22010iBY30,JY30,LY20,30,RY20,31197903-198507

87230ADUCT ASSY, HEATER AIR

main87212-95010iLY30..ST;LY30..T2,VP,VPS,VT;BY30,JY30,LY20,RY20,31197903-198507

W/SIDE DEFROSTER

87245FHOSE, HEATER WATER, INLET F

main99552-30100iBY30,JY30,LY20,30,RY2#,3#197903-198507

*H,L=45

sub99556-30100

87246FHOSE, HEATER WATER, OUTLET F

main99552-30100iBY30,JY30,LY20,30,RY2#,3#197903-198507

*H,L=45

sub99556-30100

8711612190SPRING, HEATER CASE FASTENING

main87116-12190

9009900932

main90099-00932

9009902134

main90099-02134

9009902135

main90099-02135

9009902210

main90099-02210

9009905164

main90099-05164

9011906191

main90119-06191

9017906085

main90179-06085

9017908123

main90179-08123

9611110250

main96111-10250

21 parts on this diagram · 2 diagrams in section
