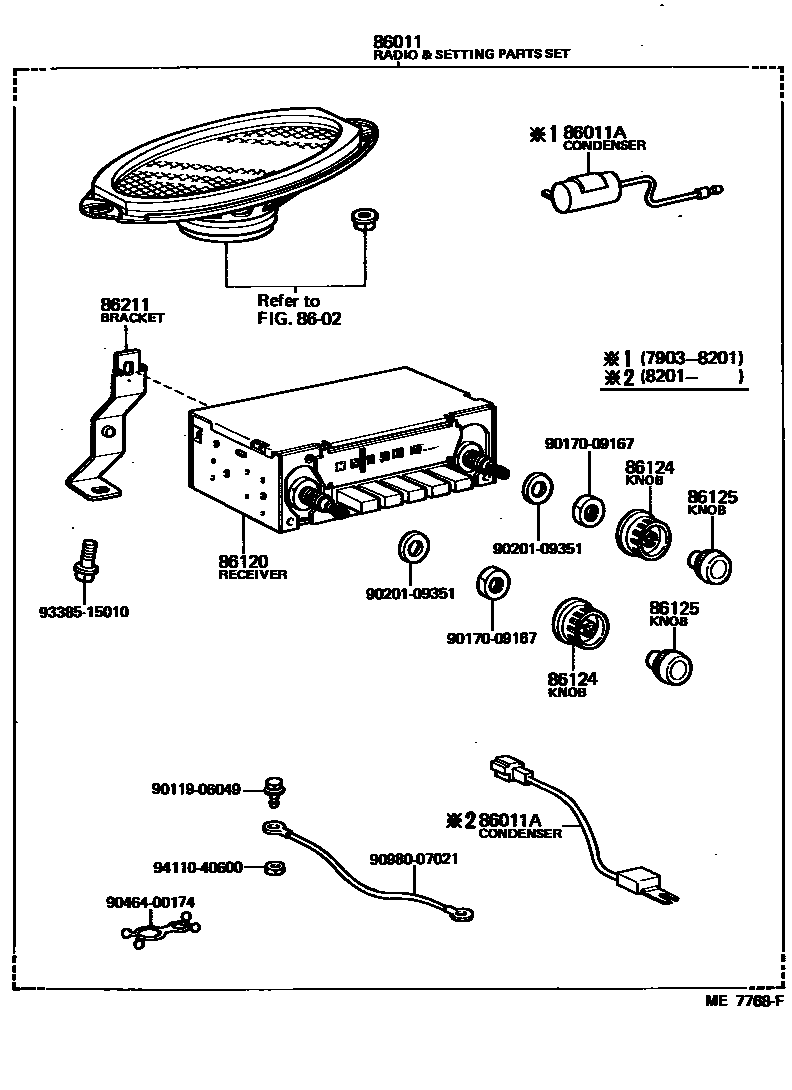

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011RADIO & SETTING PARTS SET

main86011-29175iJY30,LY2#,3#,RY2#,3#197903-198507

12V,AM

main86011-95011iBY3#,JY30,LY2#,3#197903-198507

24V,AM

86011ACONDENSER, RADIO SETTING

main90980-04011iBY30,JY30,LY20,30,RY20,31197903-198201

main90980-04040iBY3#,JY30,LY2#,3#,RY21,32198201-198507

8602

86120RECEIVER ASSY, RADIO

main86120-95400iBY3#,JY30,LY2#,3#197903-198507

24V,AM

main86120-95401iBY3#,JY30,LY2#,3#,RY21,32198204-198507

12V,24V,AM/FM

main86120-95A00iJY30,LY2#,3#,RY2#,3#197903-198507

12V,AM

main86120-95A02iBY30,JY30,LY20,30,RY21,32198201-198204

12V,24V,AM/FM

86124KNOB, RADIO RECEIVER CONTROL

main86124-95A00iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

AM OR AM/FM

86125KNOB, RADIO RECEIVER SWITCH

main86125-95A00iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

AM OR AM/FM

86211BRACKET, RADIO, NO.1

main86211-95010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

AM OR AM/FM

9011906049

main90119-06049

9017009167

main90170-09167

9020109351

main90201-09351

9046400174

main90464-00174

9098007021

main90980-07021

9338515010

main93385-15010

9411040600

main94110-40600

14 parts on this diagram · 2 diagrams in section
