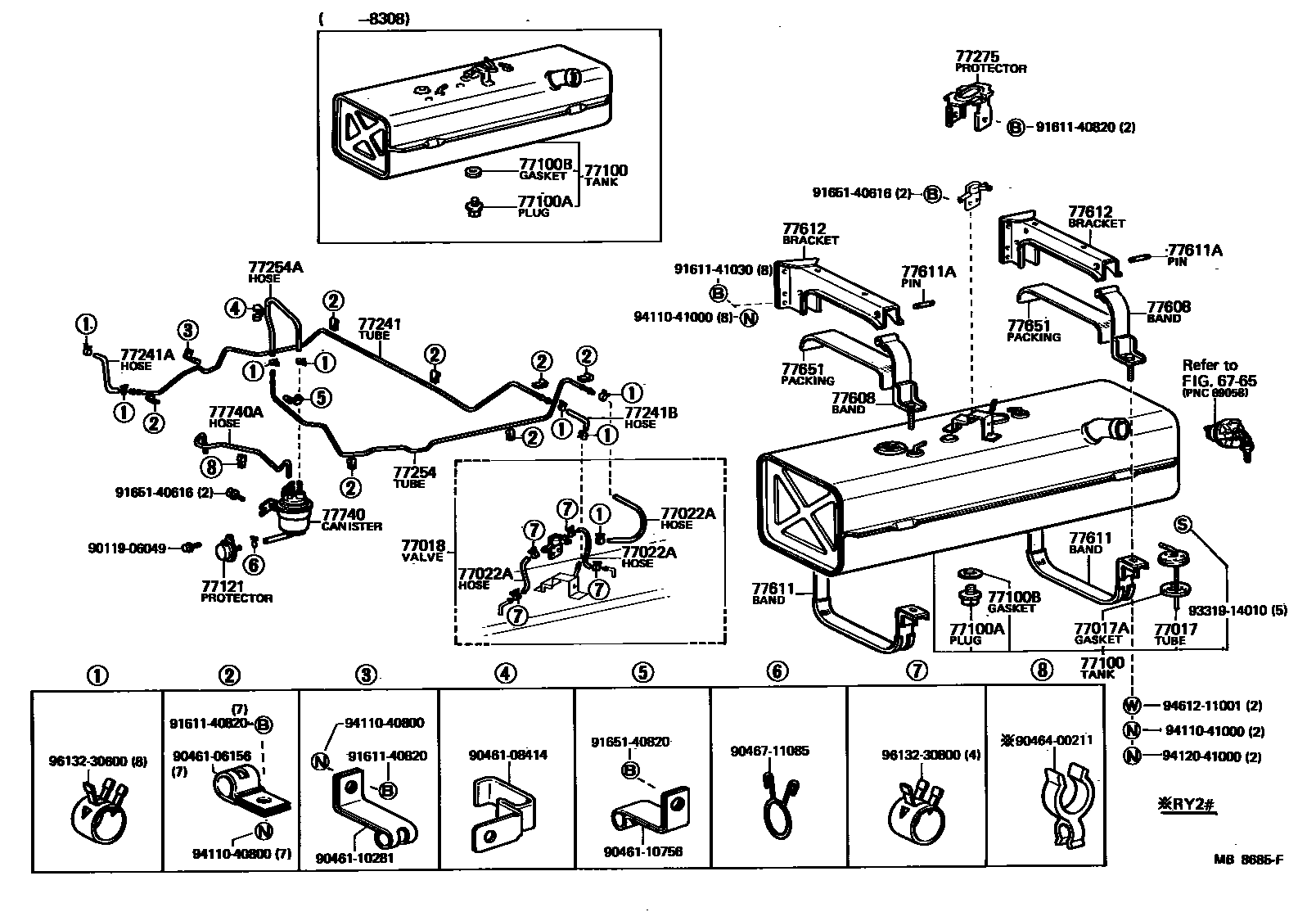

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

6765

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-25010iRY21,32198308-198507

main77017-25020iLY2#,31198308-198507

main77017-36020iBY31..T2198308-198507

main77017-36030iBY31..(DMP,T3,VPA)..WT198308-198507

main77017-36050iBY30..T3,VPA198305-198308

main77017-36070iBY30..T2198305-198308

main77017-36901iBY30..T3,VPA198302-198305

main77017-36905iBY30..T2198302-198305

77017AGASKET, FUEL TANK VENT

main77169-14020iLY2#,31,RY21,32198308-198507

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25080iLY2#,3#197903-198507

sub77018-60010

main77018-36051iRY2#,3#197903-198507

sub77018-60012

main77018-36061iJY30197903-198308

main77018-36071iBY30..T2198302-198308

main77018-36130iBY31..(DMP,T3,VPA)..WT198308-198507

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77259-36010iBY30..T3,VPA198302-198308

sub95332-08028

main95332-06030iLY2#,3#197903-198507

sub95333-06030

main95332-06040iBY3#,JY30,RY2#,3#197903-198507

sub95333-06040

main95332-08020×2iJY30,LY2#,3#,RY2#,3#197903-198507

sub95333-08020

main95332-08030×2iBY30198009-198302

sub95333-08030

77100TANK ASSY, FUEL

main77001-25130iRY2#,3#197903-198308

main77001-25140iLY20,30197903-197909

main77001-25141iLY20,30197909-198308

main77001-25150iJY30197903-198308

main77001-25190iLY2#,31198308-198507

60L

main77001-25200iLY31..WT..15T198308-198507

45L

main77001-25210iRY21,32198308-198507

main77001-36350iBY30..T3,VPA198201-198302

main77001-36370iBY30..T2198201-198302

sub93319-14010

main77001-36470iBY30198112-198201

sub93319-14010

main77001-36510iBY3#..T2198305-198507

main77001-36530iBY3#..(DMP,T3,VPA)..WT198305-198408

sub77168-36050

sub93319-14010

main77001-36670iBY31..ST198408-198507

main77001-36730iBY31..(DMP,T3,VPA)..WT198408-198507

main77001-36914iBY30..T3,VPA198302-198305

main77001-36916iBY30..T2198302-198305

77100APLUG(FOR FUEL TANK)

main90105-12018iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

77100BGASKET(FOR FUEL TANK)

main90430-12245iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

77121PROTECTOR, FUEL TUBE

main77243-36010iBY3#,JY30,LY2#,3#197903-198507

main77258-36010iRY2#,3#197903-198308

77241TUBE, FUEL MAIN, NO.1

main77205-36050iBY31..T2,VPA198308-198507

main77205-36070iBY31..(DMP,T3)..WT198308-198507

main77251-25100iRY2#;RY3#..TW1197903-198507

main77251-25110iRY3#..T1,T2,T3,VP,VPS,VT197903-198507

main77251-25120iLY3#..T1,T2,T3,VP,VPS,VT197903-198507

main77251-25130iJY30197903-198002

main77251-25131iJY30198002-198308

main77251-25150iLY2#;LY3#..TW197903-198507

main77251-36380iBY30..T2,VPA198009-198308

main77251-36431iBY30..T3198009-198204

main77251-36432iBY30..T3198204-198306

main77251-36433iBY30..T3198306-198507

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06020iRY2#,3#198001-198507

sub95333-06020

main95332-08020iBY30198009-198308

sub95333-08020

main95332-08030iBY31..T2198308-198507

sub95333-08030

main95332-08040iLY20,30197903-198308

sub95333-08040

main95332-08060iLY2#,31198308-198507

sub95333-08060

main95332-10017iJY30197903-198308

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95331-10020×2iJY30197903-198308

sub95332-10020

main95332-06020iRY2#,3#197903-198507

sub95333-06020

main95332-08020iLY2#,3#197903-198507

sub95333-08020

main95332-08030iBY31..T2198308-198507

sub95333-08030

main95332-08040iBY30..VPA198009-198308

sub95333-08040

main95332-08060iBY31..(DMP,T3)..WT198308-198507

sub95333-08060

77254TUBE, FUEL EMISSION, NO.1

main77263-25010iRY20;RY31..TW1197903-198005

main77263-25011iRY2#;RY3#..TW1198005-198507

main77263-25020iRY31..T1,T2,T3,VP,VPS,VT197903-198005

main77263-25021iRY3#..T1,T2,T3,VP,VPS,VT198005-198507

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main95332-06040iRY2#,3#197903-198507

sub95333-06040

77275PROTECTOR, FUEL EVAPORATIVE SEPARATOR

main77197-36010iJY30,LY2#,3#,RY2#,3#..DMP,T3197903-198507

77608BAND SUB-ASSY, FUEL TANK, NO.2

main77603-25010×2iJY30,LY2#,3#,RY21,32198201-198507

main77603-26011×2iJY30,LY20,30,RY20,31197903-198201

77611BAND, FUEL TANK

main77601-25090×2iJY30,LY2#,3#,RY2#,3#197903-198507

main77601-36090×2iBY3#..T2198201-198507

main77601-36100×2iBY30..T3,VPA198201-198302

main77601-36150×2iBY3#..(DMP,T3,VPA)..WT198302-198507

sub77601-37040

77611APIN (FOR FUEL TANK BAND)

main77629-25010×4iJY30,LY2#,3#,RY2#,3#197903-198507

main77629-36010×2iBY3#198009-198507

77612BRACKET SUB-ASSY, FUEL TANK

main77501-25010iLY2#,RY2#..T1,T2,T3,VP,VT197903-198507

FR

main77501-25020iLY20,3#,RY2#,3#..TW197903-198507

FR

main77501-25030iJY30197903-198308

FR

main77501-36021×2iBY30..T3198009-198204

main77501-36022×2iBY3#..(DMP,T3)..WT198204-198507

main77502-25010iLY2#,3#,RY21,32..T1,T2,T3,VP,VPS,VT198201-198507

RR

main77633-36111×2iBY3#..VPA198009-198507

sub77633-36112

main77633-36120×2iBY3#..T2198201-198507

sub77633-36121

77651PACKING, FUEL TANK BRACKET

main77651-25040×2iJY30,LY20,30,RY20,31197903-198201

main77651-25050×2iJY30,LY2#,3#,RY21,32198201-198507

sub77651-26040

main77651-36050×2iBY30198009-198201

main77651-36070×2iBY30..T2198201-198302

main77651-36100×2iBY3#..(DMP,T3,VPA)..WT198302-198507

main77651-36110×2iBY31..ST198302-198507

77740CANISTER ASSY, CHARCOAL

main77740-25030iRY2#,3#197903-198507

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-19995iRY2#,3#197903-198507

sub90999-92004

9011906049

main90119-06049

9046106156

main90461-06156

9046108414

main90461-08414

9046110281

main90461-10281

9046110756

main90461-10756

9046400211

main90464-00211

9046711085

main90467-11085

9161140820

main91611-40820

9161141030

main91611-41030

9165140616

main91651-40616

9165140820

main91651-40820

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9412041000

main94120-41000

9461211001

main94612-11001

9613230600

main96132-30600

9613230800

main96132-30800

40 parts on this diagram · 5 diagrams in section
