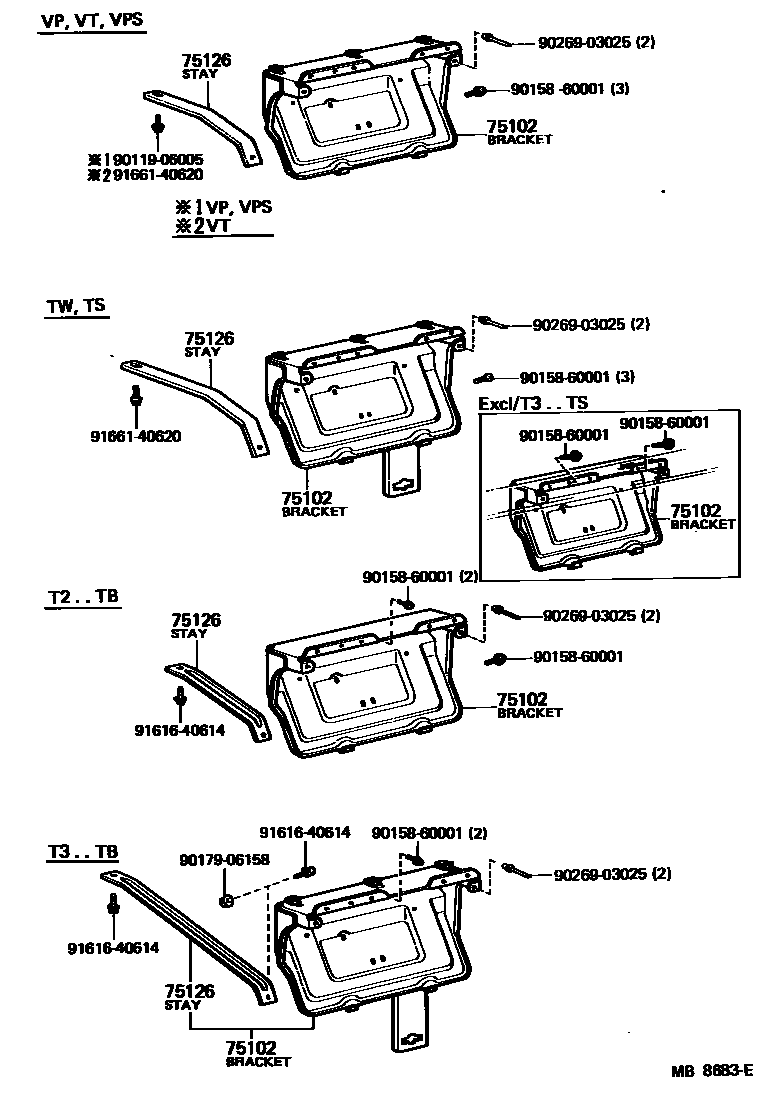

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1 0003 1

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-92200iLY2#,3#,RY2#,3#..TB..ST197903-198507

main66490-92240iJY30..TB..ST197903-198507

main66490-95019iBY3#..T3..TB..WT197903-198507

sub66490-25030

main66490-95020iJY30..T3..TS..CBU197903-198308

main66490-95021iLY2#,3#,RY2#,3#..T3..TS..CBU197903-198507

main66490-95021iJY30..T3..TS..CBU198201-198308

COLD SPEC

main75102-36010iBY31,JY30..DMP198004-198507

sub75102-92800

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-95017iBY31,JY30,LY2#,3#,RY2#,3#..T1197903-198507

sub66407-25050

main66407-95018iJY30,LY20,30,RY20,31..T2..TS197903-198201

main66407-95019iBY30,JY30,LY2#,3#,RY2#,3#..T3..TS..CBU197903-198507

main66407-95020iJY30,LY2#,3#,RY21,32..TS..WT..CBU198201-198507

main66409-92220iLY3#..TW2197903-198507

main66409-92260iBY30..TB198009-198108

sub66493-92260

sub90179-06158

main66493-92200iLY2#,3#,RY2#,3#..TB..ST197903-198507

main66493-92240iJY30..TB..ST197903-198507

main66493-92261iBY3#..T3..TB..WT198108-198507

9011906005

main90119-06005

9015860001

main90158-60001

9017906158

main90179-06158

9026903025

main90269-03025

9161640614

main91616-40614

9166140620

main91661-40620

8 parts on this diagram · 3 diagrams in section
