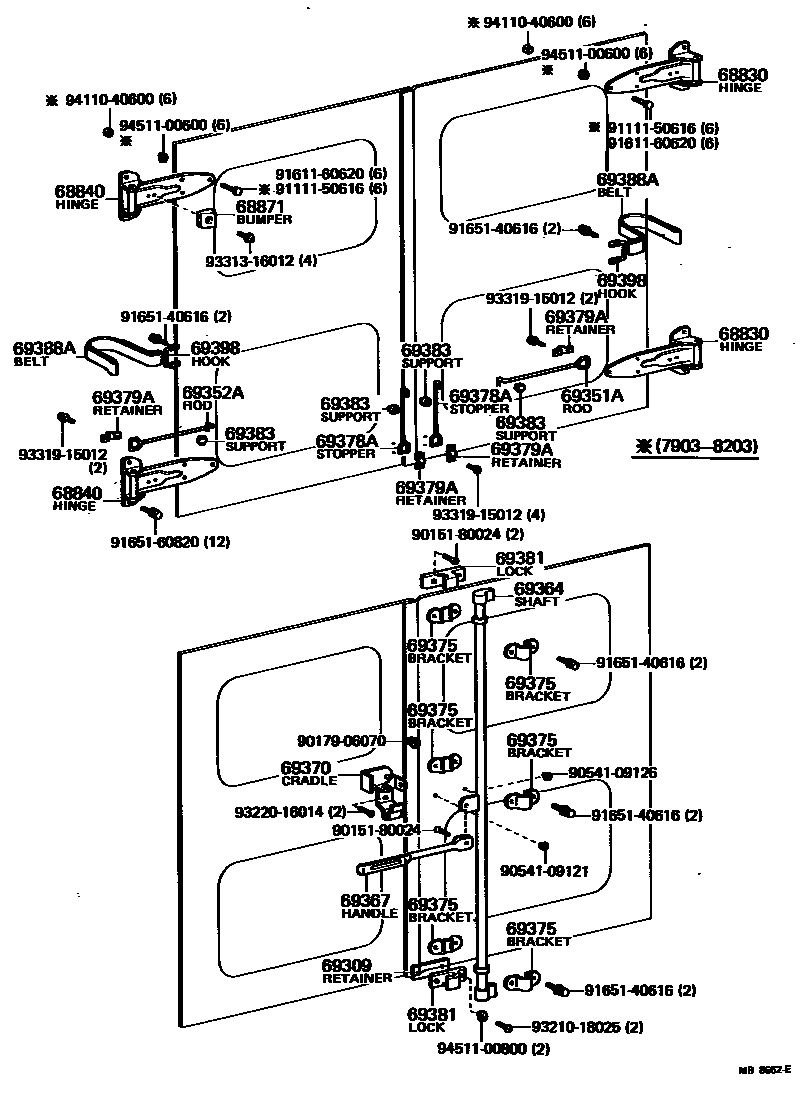

BACK DOOR LOCK & HINGE

68830HINGE ASSY, BACK DOOR, RH

main68810-92515iLY20,30,RY20,31..VP,VPS,VT197903-198107

sub68810-92516

main68810-92516iLY20,3#,RY2#,3#..VP,VPS,VT198107-198507

68840HINGE ASSY, BACK DOOR, LH

main68820-92515iLY20,30,RY20,31..VP,VPS,VT197903-198107

sub68820-92516

main68820-92516iLY20,3#,RY2#,3#..VP,VPS,VT198107-198507

68871BUMPER, BACK DOOR RUBBER

main68871-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

69309RETAINER SUB-ASSY, BACK DOOR LOCK FEMALE

main69309-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

69351AROD, OPEN STOPPER, RH

main69351-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

69352AROD, OPEN STOPPER, LH

main69352-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

69364SHAFT ASSY, BACK DOOR LOCK

main69360-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

69367HANDLE, BACK DOOR LOCK SHAFT

main69367-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

69370CRADLE ASSY, BACK DOOR LOCK

main69370-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

69375BRACKET, BACK DOOR LOCK SHAFT

main69375-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

OUTER

main69376-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

INNER

69378ASTOPPER, BACK DOOR

main69378-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

69379ARETAINER, BACK DOOR STOPPER

main69379-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

69381LOCK, BACK DOOR FEMALE

main69381-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

UPR

main69382-92515iLY20,30,RY20,31..VP,VPS,VT197903-198201

LWR

main69382-92516iLY20,3#,RY21,32..VP,VPS,VT198201-198507

LWR

69383SUPPORT, BACK DOOR STOPPER

main69383-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

69388ABELT, OPEN STOPPER

main69388-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

69398HOOK, OPEN STOPPER

main69398-92515iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

9015180024

main90151-80024

9017906070

main90179-06070

9054109121

main90541-09121

9054109126

main90541-09126

9111150616

main91111-50616

9161160620

main91611-60620

9165140616

main91651-40616

9165160820

main91651-60820

9321018025

main93210-18025

9322016014

main93220-16014

9331316012

main93313-16012

9331915012

main93319-15012

9411040600

main94110-40600

9451100600

main94511-00600

9451100800

main94511-00800

31 parts on this diagram · 1 diagram in section
