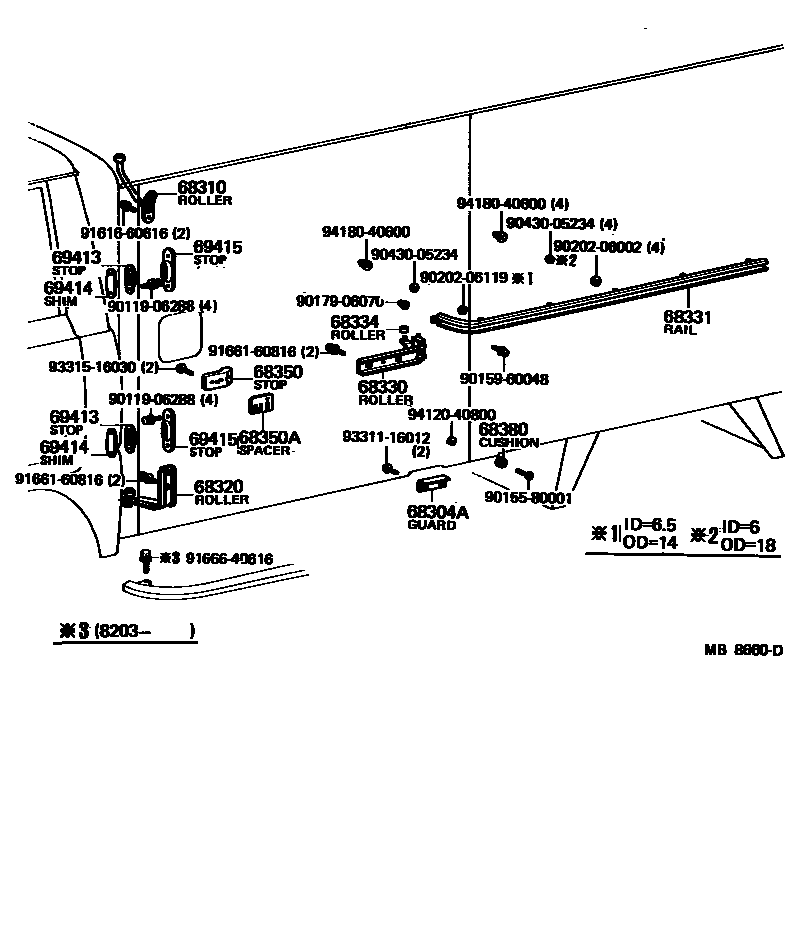

SLIDE ROLLER & RAIL

68304AGUARD, SLIDE DOOR LOWER RAIL

main68402-92561iLY3#,RY3#..VPS197903-198507

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68320-92561iLY3#,RY3#..VPS197903-198507

68320ROLLER ASSY, SLIDE DOOR, LOWER

main68360-92605iLY30,RY31..VPS197903-198011

sub68360-92606

main68360-92606iLY3#,RY3#..VPS198011-198507

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68380-92605iLY3#,RY3#..VPS197903-198502

main68390-92601iLY31..VPS198502-198507

68331RAIL, SLIDE DOOR, CENTER

main68302-92561iLY3#,RY3#..VPS197903-198507

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68334-95700iLY3#,RY3#..VPS197903-198507

68350STOPPER ASSY, SLIDE DOOR OPEN

main69405-95A00iLY3#,RY3#..VPS197903-198507

68350ASPACER, SLIDE DOOR OPEN STOPPER

main69411-95A00iLY3#,RY3#..VPS197903-198507

68380CUSHION ASSY, SLIDE DOOR

main53382-20011iLY3#,RY3#..VPS197903-198507

sub53382-90A00

69413STOP, SLIDE DOOR DOWN MALE

main69413-95700iLY3#,RY3#..VPS197903-198507

69414SHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iLY3#,RY3#..VPS197903-198507

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-95A00iLY3#,RY3#..VPS197903-198507

9011906288

main90119-06288

9015580001

main90155-80001

9015960048

main90159-60048

9017906070

main90179-06070

9020206002

main90202-06002

9020206119

main90202-06119

9043005234

main90430-05234

9161660616

main91616-60616

9166160816

main91661-60816

9166640616

main91666-40616

9331116012

main93311-16012

9331516030

main93315-16030

9412040800

main94120-40800

9418040600

main94180-40600

26 parts on this diagram · 1 diagram in section
