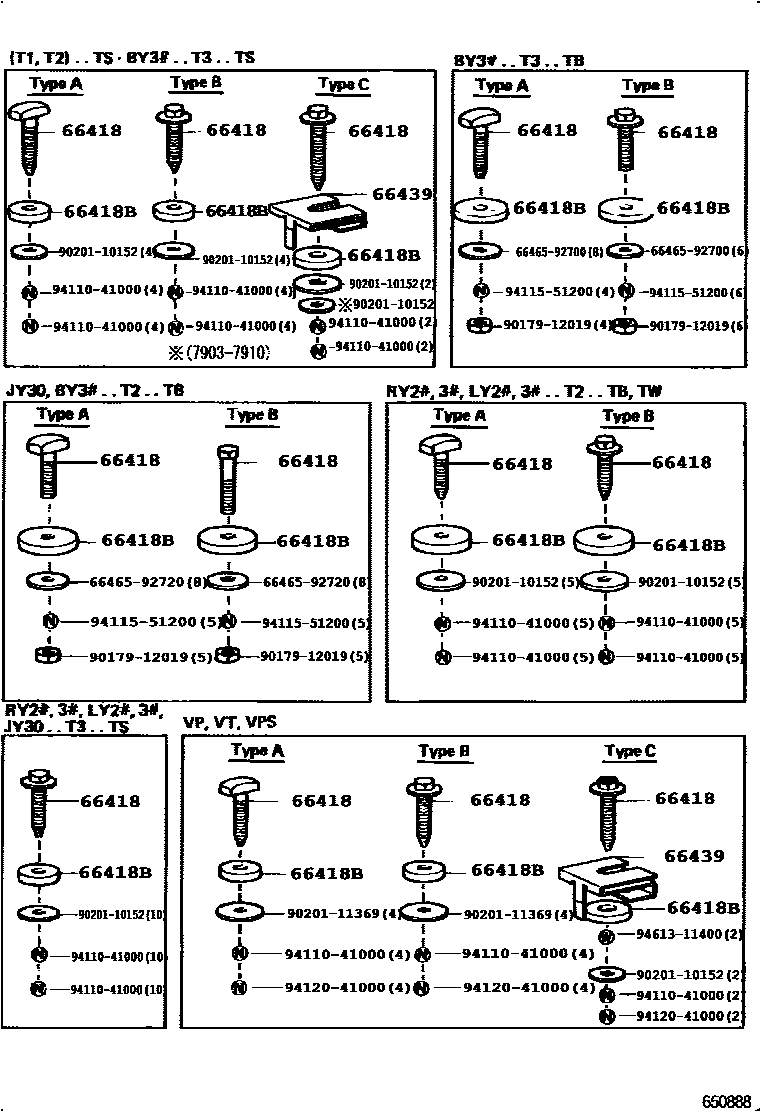

REAR BODY MOUNTING

0001 1 0003 1

66418BOLT, MOUNTING

main66418-92220iLY2#,3#,RY2#,3#..TB..WT..CBU197903-198507

TYPE A

main66418-92605iLY20,3#,RY21,32..VP,VPS,VT198210-198507

TYPE A

main66418-92720iBY3#..T2197903-198507

TYPE A

main66418-95400iLY20,3#,RY2#,3#..TW1197903-198507

TYPE A

main90119-10004iLY20,3#,RY2#,3#..TW1197903-198507

TYPE B

sub90119-10091

main90119-10004iBY3#..TS198009-198507

TYPE B & C

sub90119-10091

main90119-10091iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

TYPE C

main90119-10102iLY2#,3#,RY2#,3#..TB..WT..CBU197903-198507

TYPE B

main91162-51250iBY3#..T3..TB..WT197903-198507

TYPE B

sub91162-61250

66418BSHIM, MOUNTING

main66441-92220iLY3#..TW2197903-198507

sub90564-15142

main66441-92250iBY3#..TB..WT197903-198507

main66442-95017iLY20,3#,RY2#,3#..VP,VPS,VT197903-198507

TYPE C

main90564-12001iLY20,3#,RY2#,3#..TW1197903-198410

sub90564-12013

main90564-12001iJY30,LY20,30,RY20,31..(T1,T2)..TS197903-198507

TYPE A & B

sub90564-12013

main90564-12013iLY20,31,RY21,32..TW1198410-198507

66439SHIM, SUPPORT

main66439-95400iBY3#..TS197903-198507

TYPE C

6646592700WASHER, PLATE(FOR DECK MOUNTING)

main66465-92700

6646592720WASHER, PLATE(FOR DECK MOUNTING)

main66465-92720

9017912019

main90179-12019

9020110152

main90201-10152

9020111369

main90201-11369

9411041000

main94110-41000

9411551200

main94115-51200

9412041000

main94120-41000

9461311400

main94613-11400

12 parts on this diagram · 2 diagrams in section
