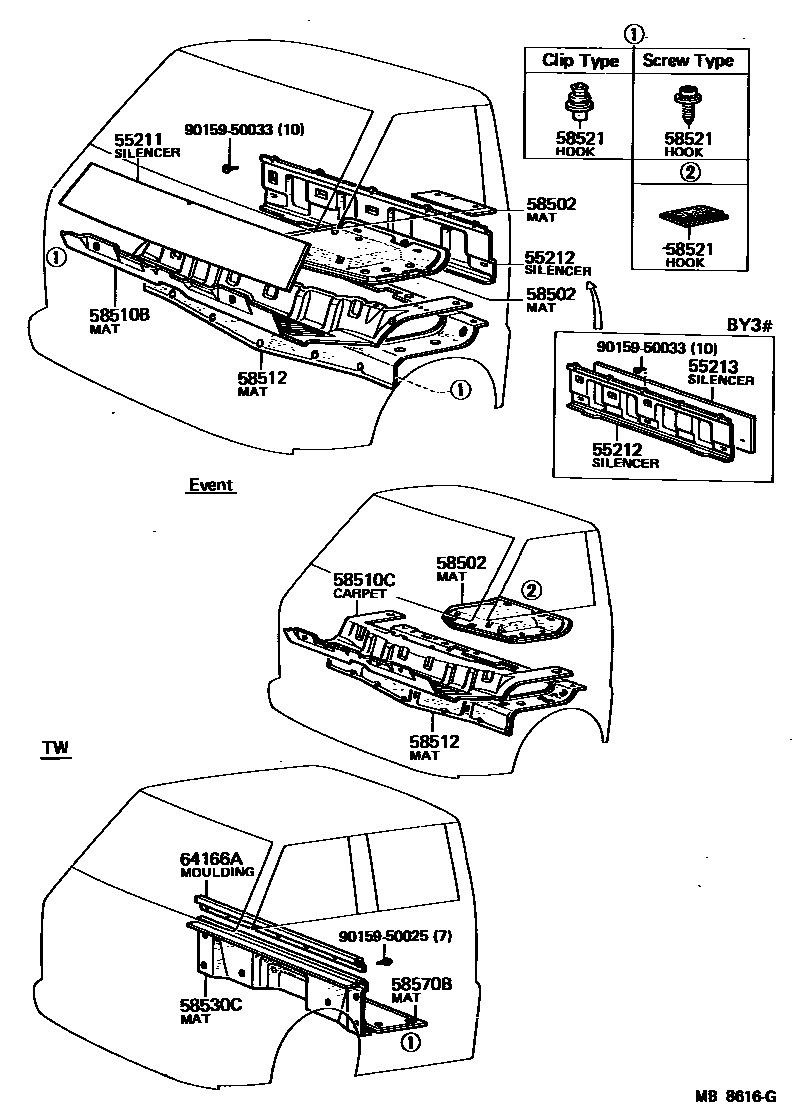

FLOOR MAT & SILENCER PAD

55211SILENCER, FRONT PANEL

main55211-95013iJY30,LY20,30,RY20,31197903-198002

main55211-95014iBY30,JY30,LY20,30,RY20,31198002-198201

main55211-95015iBY3#,JY30,LY2#,3#,RY21,32198201-198507

55212SILENCER SUB-ASSY, BACK PANEL

main55207-95011iJY30,LY20,30..DMP,T1,T2,T3,VP,VPS,VT197903-198304

main55207-95012iBY30198009-198304

main64190-95010iJY30,LY2#,3#..DMP,T1,T2,T3,VP,VPS,VT198304-198507

main64190-95011iBY3#198304-198507

55213SILENCER, BACK PANEL

main55212-95010iBY3#198009-198507

58502MAT ASSY, ENGINE SERVICE HOLE COVER

main58504-95011iRY20,31197903-198201

FR

main58504-95013iBY30,JY30,LY20,30197903-198201

FR

main58504-95014iJY30..WT..IV;JY30..TB..WT;LY30..WT..15T198002-198002

EVENT

main58504-95015iRY31..WT..15T198002-198002

EVENT

main58504-95016iRY21,32198201-198507

FR

main58504-95017iBY30,JY30,LY20,30198201-198308

FR

main58504-95019iBY31,LY2#,31198308-198507

FR

main58576-95010iBY30,JY30,LY20,30,RY20,31..DMP,T1,T2,T3,VP,VPA,VPS,VT197903-198201

RR

main58576-95013iBY3#,JY30,LY2#,3#,RY21,32198201-198507

RR

58510BMAT, FRONT FLOOR, FRONT

main58501-95012iRY20,31197903-198009

T=11.2

main58501-95013iJY30,LY20,30197903-198009

T=11.2

main58501-95015iRY20,31197903-198009

DELUXE,T=13

main58501-95016iJY30,LY20,30197903-198009

DELUXE,T=13

main58501-95018iRY20,31198009-198201

T=12.4

main58501-95019iBY30,JY30,LY20,30198009-198201

T=11.2

main58501-95022iBY30,JY30198009-198201

DELUXE,T=13

main58501-95023iRY21,32198201-198308

T=12

main58501-95024iLY20,30198201-198308

T=11.2

main58501-95026iBY30,JY30198201-198308

DELUXE,T=13

main58501-95028iRY21,32198308-198507

T=12

main58501-95029iBY31,LY2#,31198308-198507

DELUXE,T=13

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58501-95017iJY30..WT..IV;JY30..TB..WT;LY30,RY31..WT..15T198002-198002

EVENT

58512MAT, SEAT FLOOR

main58509-95010iJY30,LY20,30197903-198009

main58509-95011iJY30..WT..IV;JY30..TB..WT;LY30..WT..15T198002-198002

EVENT

main58509-95012iBY30,JY30,LY20,30198009-198201

main58509-95013iBY30,JY30,LY20,30198201-198308

main58509-95014iBY31,LY2#,31198308-198507

58521HOOK, MALE, NO.1

main90530-04007×4iLY20,3#,RY2#,3#..TW197903-198507

SCREW TYPE

main90530-06001iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

CLIP TYPE

main90530-21008×4iJY30..WT..IV;JY30..TB..WT;LY30,RY31..WT..15T198002-198002

EVENT

58530CMAT, FRONT FLOOR, REAR

main58505-95011iLY20,30,RY20,31..TW197903-198201

main58505-95014iLY20,3#,RY21,32..TW198201-198507

58570BMAT ASSY, REAR FLOOR

main58551-95012iLY20,30,RY20,31..TW197903-198201

main58551-95013iLY20,3#,RY21,32..TW198201-198408

main58551-95014iLY20,31,RY21,32..TW198408-198507

64166AMOULDING, FRAME BACK

main64166-95010iLY20,30,RY20,31..TW197903-198201

main64166-95011iLY20,3#,RY21,32..TW198201-198507

9015950025

main90159-50025

9015950033

main90159-50033

13 parts on this diagram · 1 diagram in section
