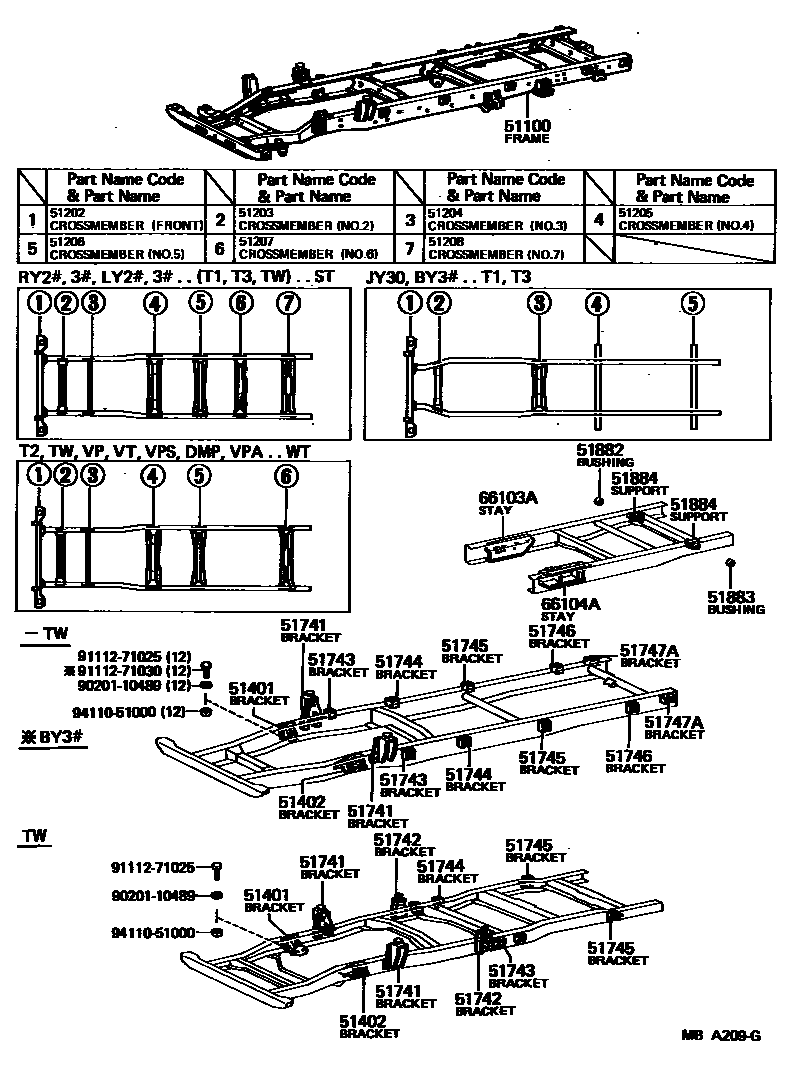

FRAME
51100FRAME ASSY
W/PS
W/PS
W/PS
W/PS
W/PS
W/PS
51202CROSSMEMBER SUB-ASSY, FRAME, NO.1
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
51208CROSSMEMBER SUB-ASSY, FRAME, NO.7
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51741BRACKET, REAR BODY MOUNTING, NO.1
RH
LH
51742BRACKET, BODY MOUNTING, NO.2
RH
LH
51743BRACKET, BODY MOUNTING, NO.3
RH
LH
51744BRACKET, BODY MOUNTING, NO.4
51745BRACKET, BODY MOUNTING, NO.5
51746BRACKET, BODY MOUNTING, NO.6
51747ABRACKET, BODY MOUNTING, NO.7
51882BUSHING, VESSEL HINGE, RH
51883BUSHING, VESSEL HINGE, LH
51884SUPPORT, VESSEL HINGE SHAFT
RH
LH
66103ASTAY SUB-ASSY, TRUNNION, RH
66104ASTAY SUB-ASSY, RUNNION, LH
9020110489
main90201-10489
9111271025
main91112-71025
9111271030
main91112-71030
9411051000
main94110-51000
26 parts on this diagram · 1 diagram in section
