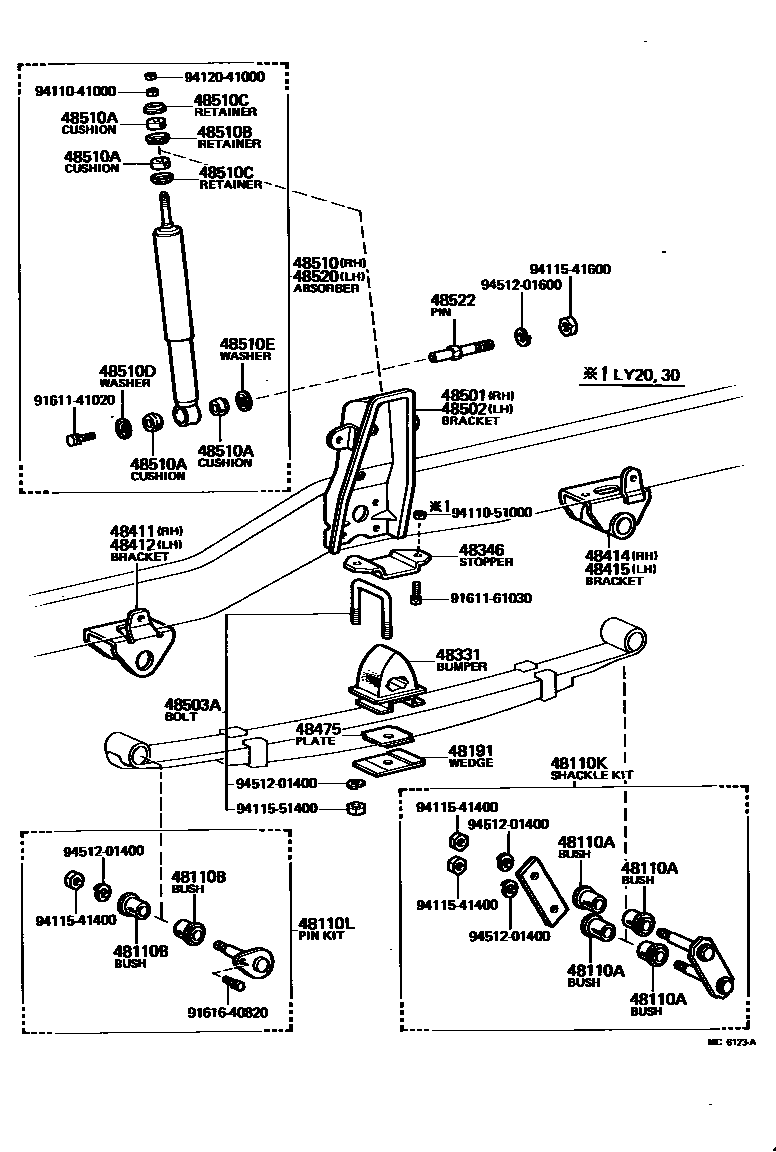

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

48110SPRING ASSY, FRONT, RH

main48110-25130iLY20..TW1197903-198507

main48110-25141iRY20..TW1197903-197905

sub48110-25320

main48110-25150iLY2#,3#,RY2#,3#..ST..15T197903-198507

main48110-25160iLY20,RY2#..WT..125197903-198507

main48110-25220iJY30..WT197903-198004

sub48110-25221

main48110-25221iJY30..WT..20T198004-198308

main48110-25230iLY30,RY31..TW1197903-197905

sub48110-25290

main48110-25250iRY3#..WT;RY2#..VP,VT;RY2#..WT..15T197903-198507

main48110-25260iLY30..WT;LY20..VP,VT;LY20..WT..15T197903-198507

main48110-25280iJY30..ST197903-198507

sub48110-25350

main48110-25290iLY20,RY2#..ST..125197903-198507

main48110-25310iRY2#..TW1197905-198507

sub48110-25320

main48110-25330iJY30..15T198004-198308

main48110-25400iBY31..DMP198308-198507

main48110-25430iLY31,RY32..(T2,TW)..TS..IV198408-198507

HRASH ROAD PACKAGE

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-18005iLY20,30,RY20,31197903-198507

main90385-18025iJY30197903-197909

48110BBUSH(FOR FRONT SPRING PIN)

main90385-18005iLY2#,3#,RY2#,3#197903-198507

48110KSHACKLE KIT, FRONT SPRING

main04481-25030iLY20,30,RY20,31197903-198012

sub04481-25031

main04481-25031iLY2#,3#,RY2#,3#198012-198507

sub04481-25050

main04481-36041iJY30;BY30..VPA197903-198012

sub04481-36042

main04481-36042iJY30;BY3#..T2,VPA198012-198507

main04481-36051iBY30..T3198009-198012

sub04481-36052

main04481-36052iBY3#..(DMP,T3)..WT198012-198507

sub04481-36060

48110LPIN KIT, FRONT SPRING

main04482-25010iLY20,30,RY20,31197903-198012

sub04482-25011

main04482-25011iLY2#,3#,RY2#,3#198012-198507

sub04482-25020

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-25010iBY3#;JY30..WT197903-198507

main48192-36020iJY30..ST197903-198308

main48193-36010iLY2#,3#,RY2#,3#..WT197903-198507

48331BUMPER, FRONT SPRING, NO.1

main48304-25010iJY30197903-198308

main48304-36021iLY2#,3#,RY2#,3#197903-198507

main48304-36030iBY3#198009-198507

sub48304-36080

48346STOPPER, BUMPER, FRONT

main48035-25010iJY30197903-198308

LH

main48346-25060iLY20,RY2#..ST..125;LY20,3#,RY2#,3#..TW1197903-198507

main48346-25070iLY30..10T;LY20,RY2#..15T;LY20,RY2#..VP,VT;LY30,RY3#..T1,T2,T3,VP,VPS,VT197903-198507

main48346-25080iJY30197903-198308

RH

main48346-25090iLY20,RY2#..WT..125197903-198507

sub48346-25091

main48346-25110iBY3#..(DMP,T3)..WT198009-198507

main48346-25120iBY3#..T2,VPA198009-198507

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48411-25050iLY2#,3#,RY2#,3#197903-198507

sub48411-25051

main48411-36070iBY3#,JY30197903-198507

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48411-25050iLY2#,3#,RY2#,3#197903-198507

sub48411-25051

main48412-36070iBY3#,JY30197903-198507

48414BRACKET, FRONT SPRING(FOR REAR RH)

main48413-36020iBY31..ST197903-198507

main48433-25040iLY2#,3#,RY2#,3#197903-198507

main48433-36030iBY3#..(DMP,T3)..WT198009-198507

48415BRACKET, FRONT SPRING(FOR REAR LH)

main48413-36020iJY30;BY3#..T2,VPA197903-198507

main48434-25030iLY2#,3#,RY2#,3#197903-198507

main48434-36030iBY3#..(DMP,T3)..WT198009-198507

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

main48502-25010iLY2#,3#,RY2#,3#197903-198507

main48512-25060iBY3#,JY30197903-198507

48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

main48502-25010iLY2#,3#,RY2#,3#197903-198507

main48512-25060iBY3#,JY30197903-198507

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90118-14170iLY2#,3#,RY2#,3#197903-198507

L=75

sub90117-14005

main90118-14181iLY2#,3#,RY2#,3#197903-198507

L=81,W/DISTANCE PLATE

sub90117-14013

main90118-16058iBY3#,JY30..TR197903-198507

L=100

sub90117-16093

sub90170-16139

sub94621-11600

main90118-16067iBY31,JY30..DMP198004-198507

L=105

sub90118-16214

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29095iLY2#,3#,RY2#,3#..T2,TW,VP,VPS,VT197903-198507

sub48511-29096

main48511-29105iJY30..ST197903-198308

sub48511-29106

main48511-29115iBY3#;JY30..WT197903-198507

sub48511-29116

main48511-29125iLY2#,3#,RY2#,3#..T1,T3197903-198507

sub48511-29126

48510ACUSHION, FRONT SHOCK ABSORBER

main90385-16007iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

LWR

main90948-01003iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

UPR

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02007iJY30,LY20,30,RY20,31197903-197905

main90948-02017iBY3#,JY30,LY2#,3#,RY2#,3#197905-198507

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBY3#,JY30197903-198507

main90948-03012iLY2#,3#,RY2#,3#197903-198507

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29095iLY2#,3#,RY2#,3#..T2,TW,VP,VPS,VT197903-198507

sub48511-29096

main48511-29105iJY30..ST197903-198308

sub48511-29106

main48511-29115iBY3#;JY30..WT197903-198507

sub48511-29116

main48511-29125iLY2#,3#,RY2#,3#..T1,T3197903-198507

sub48511-29126

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25010iLY2#,3#,RY2#,3#197903-198507

main48522-36030iBY3#,JY30197903-198507

9161141020

main91611-41020

9161161030

main91611-61030

9161640820

main91616-40820

9411041000

main94110-41000

9411051000

main94110-51000

9411541400

main94115-41400

9411541600

main94115-41600

9411551400

main94115-51400

9412041000

main94120-41000

9451201400

main94512-01400

9451201600

main94512-01600

35 parts on this diagram · 6 diagrams in section
