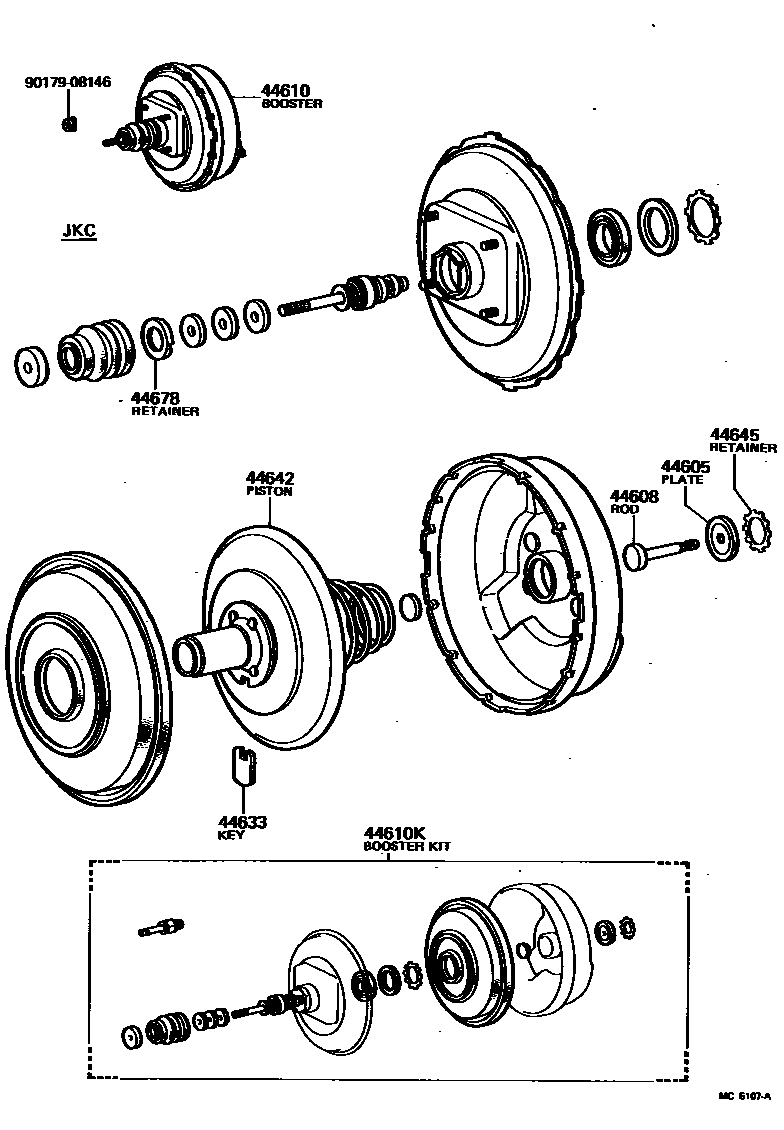

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iLY2#,3#¥710197903-198507

sub44605-10080¥620

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-35100iBY3#,JY30,RY2#,3#¥940197903-198507

main44608-14040iLY20..125;LY20..TW1¥1,630197903-198507

main44608-22090iLY21,31¥2,150197903-198507

44610BOOSTER ASSY, BRAKE

main44610-25070iBY3#,JY30¥46,300197903-198507

main44610-25080iLY21,31¥46,900197903-198507

main44610-25090iLY20..125;LY20..TW1¥40,300197903-198507

main44610-25100iRY3#;RY2#..15T;RY2#..VP,VT¥46,900197903-198507

main44610-25110iRY2#..125;RY2#..TW1197903-198507

44610KBOOSTER KIT, BRAKE

main04443-25050iBY3#,JY30¥13,000197903-198507

main04443-25060iLY21,31¥14,500197903-198507

main04443-25070iLY20..125;LY20..TW1197903-198507

main04443-25080iRY3#;RY2#..15T;RY2#..VP,VT¥12,900197903-198507

main04443-25090iRY2#..125;RY2#..TW1197903-198507

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iLY2#,3#¥260197903-198507

44642PISTON, BRAKE BOOSTER

main44642-14170iRY2#..125;RY2#..TW1¥7,800197903-198507

main44642-20140iLY20..125;LY20..TW1¥15,400197903-198507

main44642-25080iLY30;LY20..15T;LY20..VP,VT¥17,800197903-198507

main44642-30030iRY2#..15T;RY2#..VP,VT;BY3#,JY30,RY3#¥10,200197903-198507

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iBY3#,JY30,RY2#,3#¥440197903-198507

main44645-22020iLY2#,3#¥220197903-198507

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iLY2#,3#¥300197903-198507

9017908146

main90179-08146¥180

9 parts on this diagram · 8 diagrams in section
