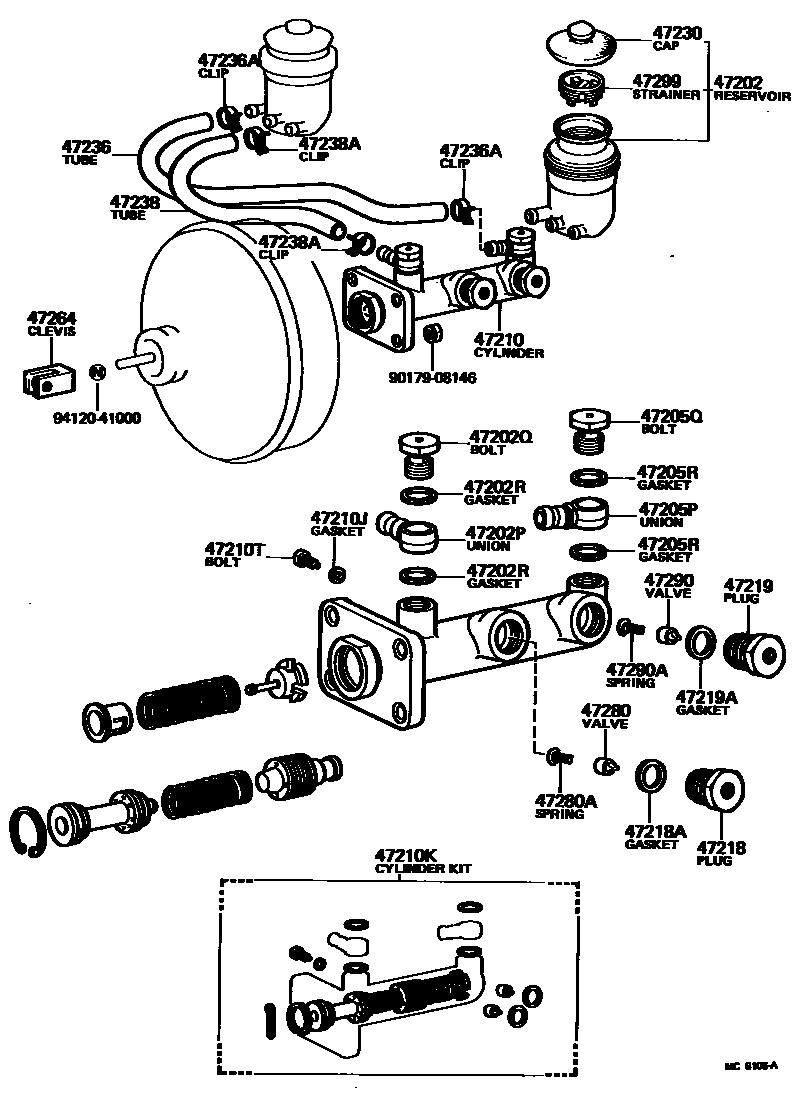

BRAKE MASTER CYLINDER

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-25010iBY30,JY30,LY20,30,RY20,31197907-198012

sub47220-25011

main47220-25011iBY30,JY30,LY20,30,RY20,31198012-198101

sub47220-25012

main47220-25012iBY3#,JY30,LY2#,3#,RY2#,3#198101-198507

main47220-26021iJY30,LY20,30,RY20,31197903-197905

sub47220-26022

main47220-26022iJY30,LY20,30,RY20,31197905-197907

sub47220-26023

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-13137iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47205PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90405-13137iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47205QBOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)

main90401-16002iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47205RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90430-16242iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-25060iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47210KCYLINDER KIT, BRAKE MASTER

main04493-25030iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-25010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-15001iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-25010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-15001iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main31440-35010iBY30,JY30,LY20,30,RY20,31197903-198101

sub47230-20040

main47230-25020iBY3#,JY30,LY2#,3#,RY2#,3#198101-198507

47236TUBE, RESERVOIR BRAKE

main47234-25040iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16002iBY31,LY2#,31,RY21,32198408-198507

sub96134-51500

main90467-16141iBY3#,JY30,LY2#,3#,RY2#,3#197903-198408

47238HOSE, MASTER CYLINDER BRIDGE

main47235-25040iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47238ACLAMP, HOSE(FOR MASTER CYLINDER BRIDGE HOSE)

main90467-16002iBY31,LY2#,31,RY21,32198408-198507

sub96134-51500

main90467-16141iBY3#,JY30,LY2#,3#,RY2#,3#197903-198408

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-26020iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-30020iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47280ASPRING, COMPRESSION

main90504-05004iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47281-30020iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47290ASPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)

main90504-05004iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-22010iJY30,LY20,30,RY20,31197903-197907

main47299-25010iBY3#,JY30,LY2#,3#,RY2#,3#198101-198507

main47299-36010iBY30,JY30,LY20,30,RY20,31197907-198101

9017908146

main90179-08146

9412041000

main94120-41000
