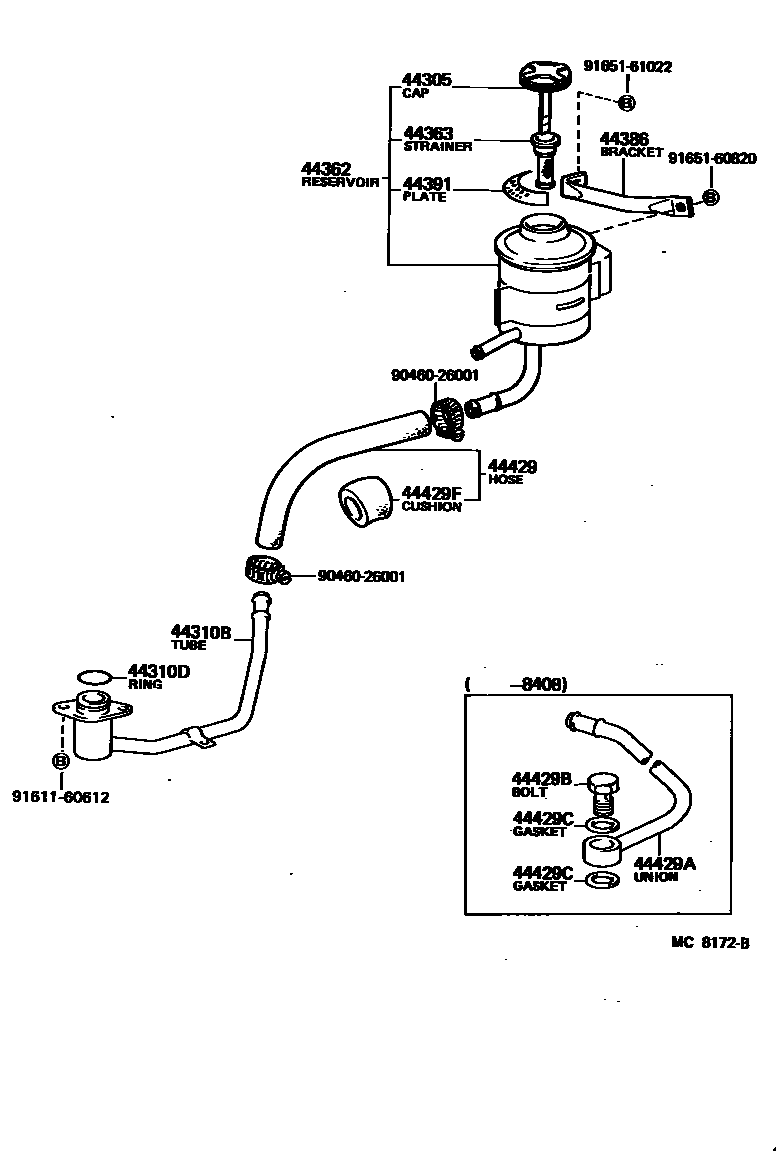

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44037-36041iBY3#198201-198507

sub44037-36080

main44305-30020iLY21,31198308-198507

sub44305-22040

44310PUMP ASSY, VANE

main44320-25010iBY30198201-198305

sub44320-25011

main44320-25011iBY3#198305-198408

main44320-25012iBY31198408-198507

main44320-25020iLY21,31198308-198507

44310BUNION(FOR VANE PUMP)

main44426-25010iBY31198408-198507

44310DRING, O(FOR VANE PUMP UNION)

main96711-19019iBY31198408-198507

44362RESERVOIR, OIL(FOR VANE PUMP)

main44360-25010iLY21,31198308-198507

main44360-36031iBY3#198201-198507

44363STRAINER, OIL(FOR VANE PUMP)

main44363-36040iBY3#198201-198507

44386BRACKET(FOR VANE PUMP OIL RESERVOIR)

main44386-36011iBY3#198201-198507

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30020iLY21,31198308-198507

main44391-36010iBY3#198201-198507

sub44391-36020

44429HOSE, RESERVOIR TO OIL PUMP

main44348-25010iLY21,31198308-198507

main44348-36012iBY3#198201-198507

44429AUNION(FOR RESERVOIR TO OIL PUMP)

main90405-16006iBY3#198201-198408

44429BBOLT, UNION(FOR RESERVOIR TO OIL PUMP UNION)

main90401-22003iBY3#198201-198408

44429CGASKET(FOR RESERVOIR TO OIL PUMP UNION)

main90430-22001iBY3#198201-198408

44429FCUSHION(FOR RESERVOIR TO OIL PUMP HOSE)

main90540-22001iBY3#198201-198507

9046026001

main90460-26001

9161160612

main91611-60612

9165160820

main91651-60820

9165161022

main91651-61022

17 parts on this diagram · 4 diagrams in section
