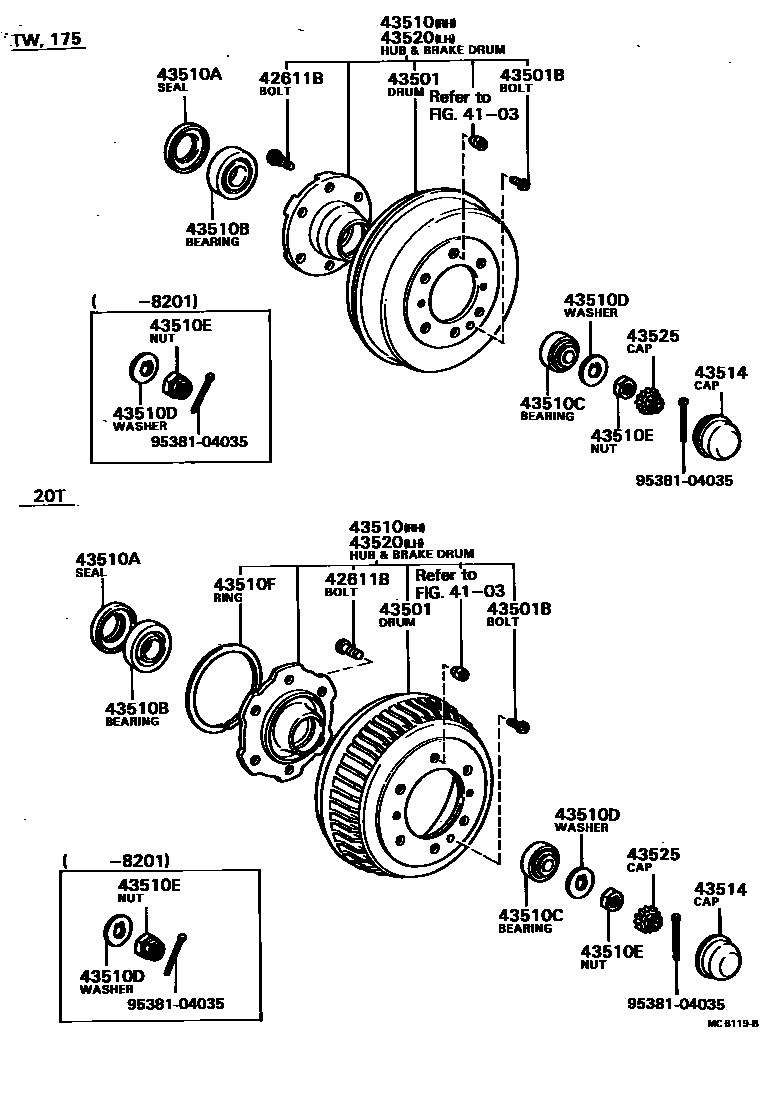

FRONT AXLE HUB

0001 1 0002 1 0005 1

4103

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02024×6iJY30..20T197903-198308

RH

main90942-02025×6iBY31..ST198308-198507

LH

main90942-02038×12iLY2#,3#,RY2#,3#197903-198507

main90942-02039×6iJY30..15T198004-198201

RH

main90942-02040×6iJY30..15T198004-198201

LH

main90942-02045×5iBY31,JY30..DMP198201-198507

RH

main90942-02046×5iBY31,JY30..DMP198201-198507

LH

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-25010×2iLY2#,3#,RY2#,3#197903-198507

main43512-36020×2iJY30..20T197903-198006

main43512-36030×2iJY30..15T198004-198201

main43512-36040×2iBY3#..(DMP,T3,VPA)..WT198009-198309

main43512-36041×2iBY31..(DMP,T3,VPA)..WT198309-198408

main43512-36060×2iJY30..20T198006-198308

main43512-36100×2iBY31..(DMP,T3,VPA)..WT198408-198507

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10015×2iJY30..20T197903-198206

main90113-10035×2iBY31..ST198308-198507

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-25030iLY2#,3#,RY2#,3#197903-198507

main43510-36050iJY30..20T197903-198006

main43510-36051iJY30..20T198006-198308

main43510-36060iJY30..15T198004-198201

main43510-36070iJY30..15T198201-198308

main43510-36071iBY31..(DMP,T3,VPA)..WT198309-198408

main43510-36110iBY31..T2198408-198507

main43510-36130iBY31..(DMP,T3,VPA)..WT198408-198507

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50003×2iLY2#,3#,RY2#,3#197903-198507

main90311-68001×2iBY3#,JY30197903-198507

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90366-35004×2iLY2#,3#,RY2#,3#197903-198507

main90368-42045×2iBY3#,JY30197903-198507

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-22007×2iLY2#,3#,RY2#,3#197903-198507

sub90366-22002

main90368-28001×2iBY3#,JY30197903-198507

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-23004×2iLY2#,3#,RY2#,3#197903-198507

main90214-27001×2iBY3#,JY30197903-198507

43510ENUT (FOR STEERING KNUCKLE)

main90170-22003×2iLY2#,3#,RY21,32198201-198507

main90170-26001×2iBY3#,JY30198009-198507

main90171-22017×2iLY20,30,RY20,31197903-198201

main90171-26001×2iJY30197903-198009

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-99065×2iJY30..20T197903-198308

43514CAP, FRONT HUB GREASE

main43514-25010×2iLY2#,3#,RY21,32198201-198507

main43514-36010×2iLY20,30,RY20,31197903-198201

main43514-36030×2iBY3#,JY30197903-198507

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-25030iLY2#,3#,RY2#,3#197903-198507

main43520-36050iJY30..20T197903-198006

main43520-36051iBY3#..T2198201-198408

main43520-36060iJY30..15T198004-198201

main43520-36070iBY3#..(DMP,T3,VPA)..WT198009-198309

main43520-36071iBY31..(DMP,T3,VPA)..WT198309-198408

main43520-36110iBY31..T2198408-198507

main43520-36130iBY31..(DMP,T3,VPA)..WT198408-198507

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-25010×2iLY2#,3#,RY21,32198201-198507

main43525-36010×2iBY3#,JY30198009-198507

9538104035

main95381-04035

15 parts on this diagram · 3 diagrams in section
