REAR AXLE SHAFT & HUB

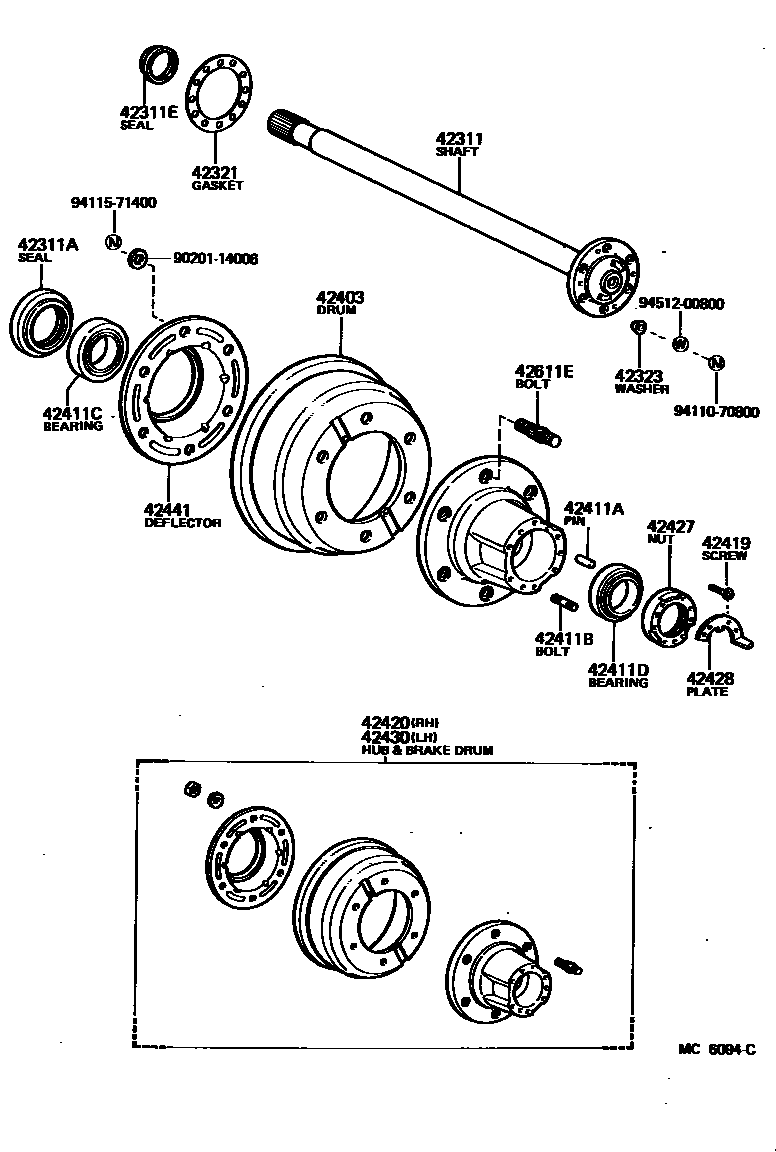

0001 1 0002 1 0003 1 0004 1 0005 1

42311SHAFT, REAR AXLE

main42311-25030iLY2#,3#,RY2#,3#..ST197903-198507

main42311-25040iLY20,30,RY2#,3#..WT197903-198212

main42311-26040iLY2#,3#,RY21,32..WT198212-198507

sub42311-25070

main42311-36050iBY31,JY30..ST197903-198507

sub42311-36051

main42311-36070iBY31,JY30..DMP198004-198507

sub42311-36071

main42311-36090iBY3#,JY30..T2197903-198507

sub42311-36091

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main42404-36010iBY3#,JY30197903-198412

main90311-47001iLY2#,3#,RY2#,3#..ST197903-198507

main90311-62001iLY2#,3#,RY2#,3#..WT197903-198507

main90311-75003iBY31198412-198507

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001iLY2#,3#,RY2#,3#..WT197903-198507

main90310-38033iBY3#,JY30197903-198507

42321GASKET, REAR AXLE SHAFT

main42321-36010iBY3#,JY30197903-198408

main42321-36030iBY31198408-198507

sub42321-36040

main43422-60010iLY2#,3#,RY2#,3#..WT197903-198507

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010iBY3#,JY30197903-198507

main42323-60010iLY2#,3#,RY2#,3#..WT197903-198507

42403DRUM SUB-ASSY, REAR BRAKE

main42431-25030iLY20,30,RY20,31..WT197903-197906

sub42431-26020

main42431-25040iLY2#,3#,RY2#,3#..ST197903-198507

main42431-25060iJY30..WT..20T197903-198507

main42431-26020iLY20,30,RY2#,3#..WT197906-198308

sub42431-26040

main42431-26040iLY2#,31,RY21,32..WT198308-198507

main42431-36050iJY30..15T198004-198201

main42431-36070iJY30..15T198009-198309

sub42431-36071

main42431-36071iBY31..(DMP,T3,VPA)..WT198309-198408

sub42431-36120

main42431-36120iBY31..(DMP,T3,VPA)..WT198408-198507

main43512-36020iBY31,JY30..ST197903-198507

42411APIN, STRAIGHT (FOR REAR AXLE HUB)

main90250-07057iLY2#,3#,RY2#,3#..WT197903-198507

main90250-10055iBY3#,JY30197903-198507

42411BBOLT, STUD (FOR REAR AXLE HUB)

main90116-08325iLY2#,3#,RY2#,3#..WT197903-198507

main90116-10191iBY3#,JY30197903-198507

42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

main90368-49084iLY2#,3#,RY2#,3#..WT197903-198507

main90368-57010iBY3#,JY30197903-198507

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90368-45087iLY2#,3#,RY2#,3#..WT197903-198507

main90368-50008iBY3#,JY30197903-198408

main90368-52043iBY31198408-198507

42419SCREW, REAR AXLE BEARING LOCK NUT

main42419-60011iLY2#,3#,RY21,32..WT198212-198507

main93311-16012iLY20,30,RY2#,3#..WT197903-198507

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-25050iLY20,30,RY20,31..WT197903-197906

sub42420-26040

main42420-25070iJY30..WT..20T197903-198408

sub42420-25071

main42420-25071iBY31..T2198408-198507

main42420-26040iLY20,30,RY2#,3#..WT197906-198212

main42420-26050iLY20,30,RY21,32..WT198212-198305

sub42420-26060

main42420-26060iLY2#,3#,RY21,32..WT198305-198507

sub42420-26090

main42420-36050iBY31,JY30..ST197903-198507

main42420-36060iJY30..15T198004-198201

main42420-36080iBY3#..(DMP,T3,VPA)..WT198009-198309

sub42420-36081

main42420-36081iBY31..(DMP,T3,VPA)..WT198309-198408

sub42420-36130

main42420-36130iBY31..(DMP,T3,VPA)..WT198408-198507

sub42420-37040

42427NUT, REAR AXLE BEARING LOCK

main42427-25010iLY20,30,RY2#,3#..WT197903-198212

main42427-36010iBY3#,JY30197903-198408

main42427-36030iBY31198408-198507

main42427-60021iLY2#,3#,RY21,32..WT198212-198507

42428PLATE, REAR AXLE LOCK NUT

main42428-25010iLY20,30,RY2#,3#..WT197903-198212

main42428-36010iBY3#,JY30197903-198408

main42428-36020iBY31198408-198507

main42428-60011iLY2#,3#,RY21,32..WT198212-198507

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-25010iLY20,30,RY20,31..WT197903-197906

sub42430-26010

main42430-25030iJY30..WT..20T197903-198408

sub42430-25031

main42430-25031iBY31..T2198408-198507

main42430-26010iLY20,30,RY2#,3#..WT197906-198212

main42430-26020iLY20,30,RY21,32..WT198212-198308

sub42430-26030

main42430-26030iLY2#,31,RY21,32..WT198308-198507

sub42430-26090

main42430-36050iBY31,JY30..ST197903-198507

main42430-36060iJY30..15T198004-198201

main42430-36080iBY3#..(DMP,T3,VPA)..WT198009-198309

sub42430-36081

main42430-36081iBY31..(DMP,T3,VPA)..WT198309-198408

sub42430-36130

main42430-36130iBY31..(DMP,T3,VPA)..WT198408-198507

sub42430-37040

42441DEFLECTOR, BRAKE DRUM OIL

main42441-25010iLY2#,3#,RY2#,3#..ST197903-198507

main42441-25020iLY2#,3#,RY2#,3#..WT197903-198507

main42441-36020iBY3#,JY30..T2197903-198408

main42441-36050iBY31..T2198408-198507

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02024iBY31,JY30..ST197903-198507

RH

main90942-02025iBY31,JY30..ST197903-198507

LH

main90942-02030iLY2#,3#,RY2#,3#..ST197903-198507

sub90942-02077

main90942-02039iBY3#,JY30..T2197903-198408

RH

main90942-02040iBY3#,JY30..T2197903-198408

LH

main90942-02041iLY2#,3#,RY2#,3#..WT197903-198507

RH

sub90942-02110

main90942-02042iLY2#,3#,RY2#,3#..WT197903-198507

LH

sub90942-02111

main90942-02045iBY3#..(T3,VPA)..WT198009-198507

RH

main90942-02046iBY3#..(T3,VPA)..WT198009-198507

LH

main90942-02050iBY31..T2198408-198507

RH

main90942-02051iBY31..T2198408-198507

LH

9020114006

main90201-14006

9411070800

main94110-70800

9411571400

main94115-71400

9451200800

main94512-00800

21 parts on this diagram · 5 diagrams in section
