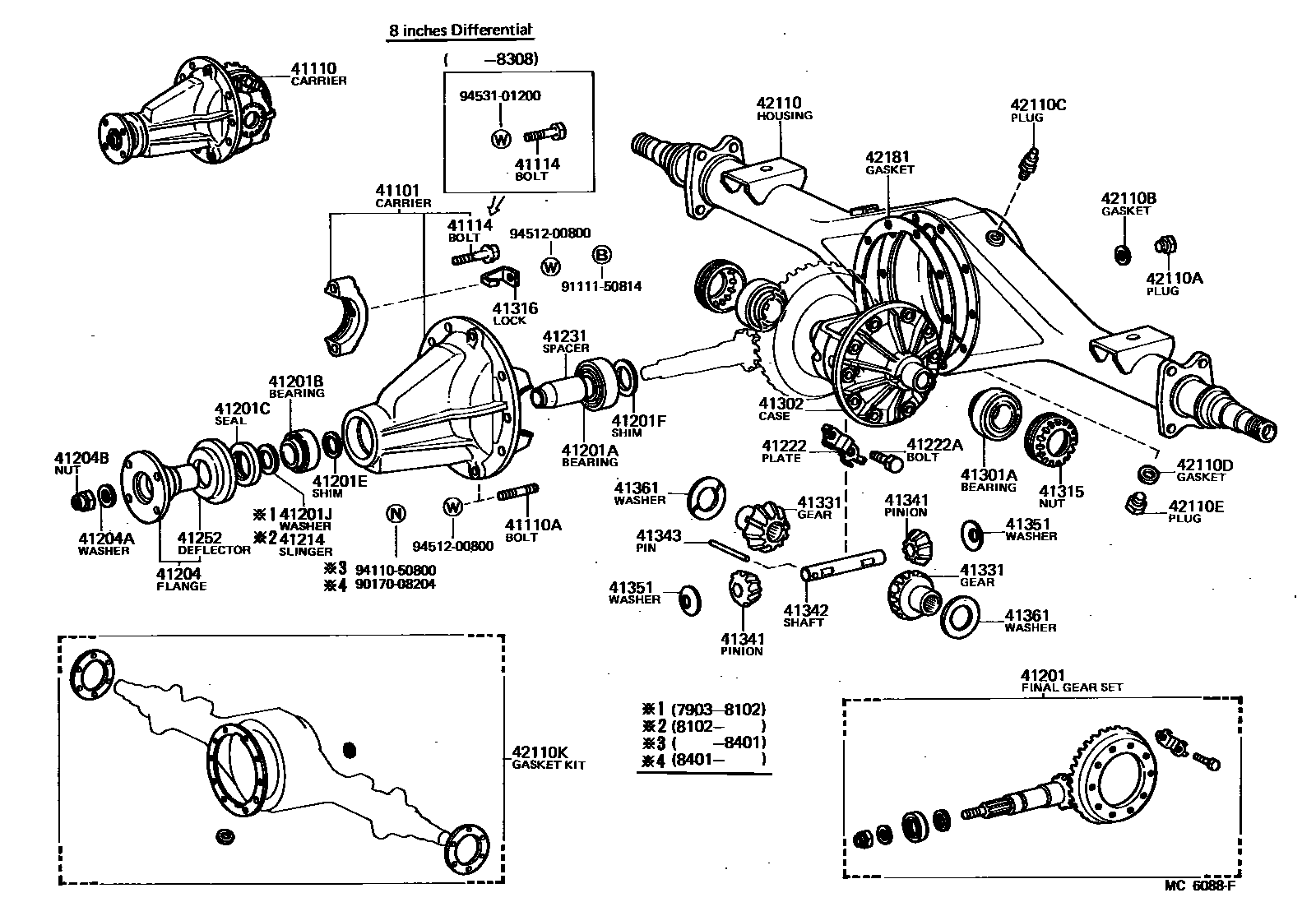

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-25010iLY2#,3#,RY3#..ST197903-198411

sub41101-25H00

main41101-25011iLY2#,31,RY32..ST198411-198507

sub41101-60070

main41101-35011iRY2#..ST197903-198411

sub41101-35H00

main41101-35012iRY21..ST198411-198507

sub41101-35013

main41101-35020iRY2#..WT197903-198308

sub41101-35040

main41101-35030iLY2#,31,RY32..WT198308-198507

sub41101-35031

sub90116-08329

main41101-35040iRY21..WT198308-198507

sub41101-35041

sub90116-08329

main41101-36030iBY3#,JY30197903-198507

sub41101-37010

main41101-61010iLY20,30,RY3#..WT197903-198308

sub41101-35030

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-25041iRY2#..ST197903-198308

R=37:6=6.167

main41110-25042iRY21..ST198308-198411

R=37:6=6.167

sub41110-25043

main41110-25043iRY21..ST198411-198507

R=37:6=6.167

main41110-25080iLY20,30..WT197903-198308

R=39:10=3.900

sub41110-35100

main41110-25081iLY20..WT198308-198507

R=39:10=3.900

sub41110-25082

main41110-25090iRY3#..WT197903-198308

R=39:10=3.900

sub41110-25091

main41110-25091iLY21,31,RY32..WT198308-198408

R=39:10=3.900

sub41110-25094

sub90116-08329

sub90116-08334

main41110-25092iLY21,31,RY32..WT198408-198507

sub41110-25093

main41110-25100iLY20,30..ST197903-198308

R=37:7=5.286

main41110-25101iLY20..ST198308-198411

R=37:7=5.286

sub41110-25102

main41110-25102iLY20..ST198411-198507

sub41110-25103

main41110-25110iLY21,31,RY3#..ST197903-198408

R=37:7=5.286

main41110-25111iLY21,31,RY32..ST198408-198411

R=37:7=5.286

sub41110-25112

main41110-25112iLY21,31,RY32..ST198411-198507

R=37:7=5.286

main41110-25120iBY30..T2198201-198308

R=37:8=4.625

main41110-35032iRY2#..WT197903-198308

R=39:8=4.875

sub41110-35081

main41110-35190iRY21..WT198308-198507

R=39:8=4.875

sub41110-35191

main41110-36230iBY30..T3,VPA197903-198408

R=39:8=4.875

main41110-36240iJY30..ST197903-198308

R=39:7=5.571

main41110-36260iBY31,JY30..DMP198004-198408

R=37:6=6.167

main41110-36290iBY31..T1,T3,VPA198308-198408

R=43:8=5.375

main41110-36390iBY31..T2198408-198507

sub41110-36391

main41110-36410iBY31..T1,T3,VPA198408-198507

sub41110-36460

main41110-36440iBY31..DMP198408-198507

sub41110-36540

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08179iLY2#,3#,RY21,32..WT198305-198507

main90116-08180iLY2#,3#,RY21,32..WT198305-198507

main90116-08196iLY20,30,RY2#,3#..WT197903-198305

sub90116-08333

main90116-08226iLY20,30,RY2#,3#..WT197903-198305

main90116-10082iBY31197903-198507

main90116-10103iLY2#,3#,RY2#,3#..ST197903-198507

main90116-10104iLY2#,3#,RY2#,3#..ST197903-198507

sub90116-10075

main90116-10107iLY2#,3#,RY2#,3#..ST197903-198507

sub90116-10076

main90119-10283iBY31198408-198507

sub90119-10069

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main41114-35010iLY2#,3#,RY2#,3#..ST197903-198411

*12-1.5PX67-21

main90101-12376iLY20,30,RY2#,3#..WT197903-198308

*12-1.25PX59-25

main90101-16005iBY3#,JY30197903-198408

*16-1.5PX86-26

sub90105-16022

main90105-12053iLY2#,31,RY21,32..WT198308-198507

*12-1.25PX56-30

main90105-16022iBY31198408-198507

*16-1.5PX86-26

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29365iLY20,30,RY3#..WT197903-198308

R=39:10

sub41201-29366

main41201-29366iLY20..WT198308-198507

R=39:10

sub41201-29516

main41201-29375iLY2#,3#,RY3#..ST197903-198411

R=37:7

sub41201-29557

main41201-29435iBY30..T2198201-198308

R=37:8

sub41201-29436

main41201-29515iLY21,31,RY32..WT198408-198507

R=39:10

sub41201-29516

main41201-29555iLY21,31,RY32..ST198408-198411

R=37:7

sub41201-29557

main41201-29556iLY2#,31,RY32..ST198411-198501

R=37:7

sub41201-29557

main41201-29557iLY2#,31,RY32..ST198501-198507

sub41201-29558

sub41204-35040

sub41214-26011

main41201-39305iBY30..T3,VPA197903-198507

R=39:8

sub41201-39306

main41201-39315iJY30..ST197903-198308

sub41201-39605

main41201-39335iBY31,JY30..DMP198004-198507

sub41201-39785

main41201-39355iRY2#..ST197903-198411

R=37:6

sub41201-39357

main41201-39356iRY21..ST198411-198501

R=37:6

sub41201-39357

main41201-39357iRY21..ST198501-198507

main41201-39396iRY2#..WT197903-198507

R=39:8

sub41201-39696

main41201-39455iBY31..T1,T3,VPA198308-198507

sub41201-39525

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40001iBY3#,JY30197903-198507

sub90366-40100

main90366-40004iLY2#,3#,RY2#,3#..ST198101-198507

sub90366-40059

main97609-32307iLY2#,3#,RY2#,3#..WT197903-198507

main97619-30308iLY20,30,RY20,31..ST197903-198101

sub90366-40004

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30008iLY2#,3#,RY2#,3#..WT197903-198507

main90366-30011iLY2#,3#,RY2#,3#..ST198101-198507

main90366-35023iBY3#,JY30197903-198507

main97619-30306iLY20,30,RY20,31..ST197903-198101

sub90366-30038

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38133iLY2#,3#,RY21,32..WT197903-198507

sub90311-38047

main90311-38134iLY2#,3#,RY21,32..ST198303-198507

sub90311-38047

main90311-48135iBY3#,JY30197903-198507

sub90311-48019

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-30035iLY20,30,RY2#,3#197903-198411

main90564-30063iLY20,30,RY2#,3#..WT197903-198308

T=0.45

main90564-30193iLY20,30,RY2#,3#..WT197903-198308

T=0.3

main90564-30194iLY20,30,RY2#,3#..WT197903-198308

T=0.35

main90564-30195iLY20,30,RY2#,3#..WT197903-198308

T=0.4

main90564-35019iBY3#,JY30197903-198507

main90564-35020iBY3#,JY30197903-198507

main90564-35021iBY3#,JY30197903-198507

main90564-35022iBY3#,JY30197903-198507

main90564-35023iBY3#,JY30197903-198507

main90564-35024iBY3#,JY30197903-198507

main90564-35025iBY3#,JY30197903-198507

main90564-35026iBY3#,JY30197903-198507

main90564-35027iBY3#,JY30197903-198507

main90564-35028iBY3#,JY30197903-198507

main90564-35029iBY3#,JY30197903-198507

main90564-35030iBY3#,JY30197903-198507

main90564-35031iBY3#,JY30197903-198507

main90564-35032iBY3#,JY30197903-198507

main90564-35033iBY3#,JY30197903-198507

main90564-35034iBY3#,JY30197903-198507

main90564-35035iBY3#,JY30197903-198507

main90564-35036iBY31198408-198507

main90564-35037iBY31198408-198507

main90564-35038iBY31198408-198507

main90564-35039iBY31198408-198507

main90564-35040iBY31198408-198507

41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)

main90201-35497iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35498iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35499iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35500iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35501iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35502iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35503iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35504iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35505iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35506iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35507iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35508iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35509iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35510iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35511iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35512iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35513iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35514iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35515iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35516iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35517iLY2#,3#,RY2#,3#..WT197903-198507

main90201-35518iLY2#,3#,RY2#,3#..WT197903-198507

main90201-40551iBY3#,JY30197903-198507

sub90564-40004

main90201-40552iBY31;LY2#,31,RY21,32..ST197903-198507

sub90564-40007

main90201-40553iBY31;LY2#,31,RY21,32..ST197903-198507

sub90564-40009

main90201-40554iBY31;LY2#,31,RY21,32..ST197903-198507

sub90564-40011

main90201-40555iBY3#,JY30197903-198507

sub90564-40013

main90201-40556iBY3#,JY30197903-198507

sub90564-40015

main90201-40557iBY31;LY2#,31,RY21,32..ST197903-198507

sub90564-40017

main90201-40558iBY31;LY2#,31,RY21,32..ST197903-198507

sub90564-40019

main90201-40559iBY3#,JY30197903-198507

sub90564-40021

main90201-40560iBY31;LY2#,31,RY21,32..ST197903-198507

sub90564-40023

main90201-40561iBY31;LY2#,31,RY21,32..ST197903-198507

sub90564-40025

main90564-68001iLY2#,3#,RY2#,3#..ST197903-198411

main90564-68002iLY2#,3#,RY2#,3#..ST197903-198411

main90564-68003iLY2#,3#,RY2#,3#..ST197903-198411

main90564-68004iLY2#,3#,RY2#,3#..ST197903-198411

main90564-68005iLY2#,3#,RY2#,3#..ST197903-198411

41201JWASHER, PLATE (FOR FRONT BEARING FRONT)

main90201-28002iLY20,30,RY20,31..WT197903-198102

sub41214-26010

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-26011iLY20,30,RY2#197903-198308

main41204-35040iLY20,RY21198308-198507

main41204-36031iBY30,JY30197903-198010

sub41204-36032

sub41214-36010

main41204-36032iBY3#,JY30198010-198408

main41204-36050iBY31198408-198507

main41204-60010iLY21,31,RY3#197903-198408

main41204-60030iLY21,31,RY32198408-198507

sub41204-60050

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-20005iLY2#,3#,RY2#,3#197903-198507

main90201-22007iLY2#,31,RY21,32..ST198411-198507

main90201-23002iBY3#,JY30197903-198507

41204BNUT (FOR REAR DRIVE PINION)

main90179-20001iLY2#,3#,RY2#,3#197903-198507

main90179-22003iBY3#,JY30197903-198507

main90179-22011iLY2#,31,RY21,32..ST198411-198507

sub90179-22016

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iLY2#,31,RY21,32..ST198102-198507

main41214-30010iLY20,30,RY2#,3#..ST197903-198303

sub41214-40010

main41214-36010iBY3#,JY30198010-198408

sub41214-36030

main41214-36030iBY31198408-198507

sub41214-37010

main41214-40010iLY2#,3#,RY21,32..ST198303-198411

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iLY2#,3#,RY2#,3#..WT197903-198507

main41222-36020iBY3#,JY30197903-198507

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main41226-35010iLY2#,3#,RY2#,3#..ST197903-198507

main90101-11353iLY2#,3#,RY2#,3#..WT197903-198507

main90101-14315iBY3#,JY30197903-198507

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-36040iBY3#,JY30197903-198507

main41231-39010iLY20,30,RY2#,3#..WT197903-198308

main41231-40010iLY2#,31,RY21,32..WT198308-198507

main41231-60020iLY2#,31,RY21,32..ST198411-198507

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main37341-30010iLY2#,3#,RY2#,3#197903-198408

OD=92

main41252-35010iLY2#,31,RY21,32198408-198507

OD=88

sub41252-35020

main41252-36010iBY3#,JY30197903-198507

sub41252-37020

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45066iLY2#,3#,RY2#,3#197903-198507

main90368-52043iBY3#,JY30197903-198507

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iBY3#,JY30197903-198507

main41311-35030iLY20,30,RY2#,3#..WT197903-198208

sub41311-40020

main41311-36010iLY2#,3#,RY2#,3#..ST197903-198507

sub41311-60070

sub41343-60030

sub90368-50024

main41311-40020iLY2#,3#,RY21,32..WT198208-198507

sub41311-40021

sub90105-11063

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iLY2#,3#,RY2#,3#..ST197903-198507

main41315-35010iLY2#,3#,RY2#,3#..WT197903-198507

main41315-36011iBY3#,JY30197903-198507

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iLY2#,3#,RY2#,3#197903-198507

main41316-36011iBY3#,JY30197903-198507

SINGLE TYPE

main41317-36011iBY3#,JY30197903-198507

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-35010iLY2#,3#,RY2#,3#..WT197903-198408

N=16

sub41331-35011

main41331-35011iLY2#,31,RY21,32..WT198408-198507

N=16

main41331-35020iLY2#,3#,RY2#,3#..ST197903-198507

N=16

main41331-36020iBY3#,JY30197903-198507

N=16

41341PINION, REAR DIFFERENTIAL

main41341-35020iLY2#,31,RY21,32..WT198408-198507

N=10

main41341-39020iLY2#,3#,RY2#,3#..WT197903-198408

N=10

sub41341-35020

sub41351-30052

main41341-55012iBY3#,JY30;LY2#,3#,RY2#,3#..ST197903-198507

N=10

sub41341-55013

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iLY2#,3#,RY2#,3#..WT197903-198507

main41342-55010iLY2#,3#,RY2#,3#..ST197903-198507

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main41343-55010iLY2#,3#,RY2#,3#..ST197903-198507

main90250-06085iLY2#,3#,RY2#,3#..WT197903-198507

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30051iLY2#,3#,RY2#,3#..WT197903-198408

T=1.0

main41351-30052iLY2#,31,RY21,32..WT198408-198507

T=0.6

main41351-35011iBY3#,JY30;LY2#,3#,RY2#,3#..ST197903-198507

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-40021iLY2#,3#,RY2#,3#..WT197903-198507

main41361-60010iBY3#,JY30;LY2#,3#,RY2#,3#..ST197903-198507

sub41361-60011

main41361-60020iBY3#,JY30;LY2#,3#,RY2#,3#..ST197903-198507

sub41361-60021

main41361-60030iBY3#,JY30;LY2#,3#,RY2#,3#..ST197903-198507

sub41361-60031

main41361-60040iBY3#,JY30;LY2#,3#,RY2#,3#..ST197903-198507

sub41361-60041

main41362-40021iLY2#,3#,RY2#,3#..WT197903-198507

main41363-40021iLY2#,3#,RY2#,3#..WT197903-198507

42110HOUSING ASSY, REAR AXLE

main42110-25100iLY20,30,RY20,31..ST197903-198201

main42110-25110iLY20,30,RY20,31..WT197903-198201

main42110-25120iJY30..WT..20T197903-198201

sub42110-25121

sub42427-36030

sub42428-36020

sub90368-52043

main42110-25130iRY21,32..ST198201-198507

main42110-25140iLY2#,3#..ST198201-198309

main42110-25150iLY20,30,RY21,32..WT198201-198212

main42110-25151iLY20,30,RY21,32..WT198212-198308

main42110-25170iJY30..WT..20T198201-198308

main42110-25180iLY2#,31,RY21,32..WT198308-198507

main42110-25210iBY31..ST198408-198507

main42110-25220iBY31..T2198408-198507

main42110-25300iBY31..(T3,VPA)..WT198502-198507

sub42110-36670

main42110-36250iJY30..ST197903-198201

sub42110-36251

sub42427-36030

sub42428-36020

sub90368-52043

main42110-36280iJY30..15T198004-198201

main42110-36290iBY30..VPA198009-198201

sub42110-36291

sub42427-36030

sub42428-36020

sub90368-52043

main42110-36300iBY30..T3198009-198201

sub42110-36301

sub42427-36030

sub42428-36020

sub90368-52043

main42110-36530iBY31,JY30..ST198201-198408

sub42110-36531

sub42427-36030

sub42428-36020

sub90368-52043

main42110-36580iBY31,JY30..DMP198201-198408

sub42110-36581

sub42427-36030

sub42428-36020

sub90368-52043

main42110-36590iBY3#..T2198201-198408

sub42110-36591

sub42427-36030

sub42428-36020

sub90368-52043

main42110-36670iBY31..(T3,VPA)..WT198408-198502

sub42110-36880

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iLY20,30,RY20,31197903-198507

main90930-03044iBY30,JY30197903-198201

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

42110KGASKET KIT, DIFFERENTIAL CARRIER

main04412-25030iLY2#,3#,RY2#,3#..WT197903-198507

sub04412-25031

main04412-25050iBY31198408-198507

sub04412-25051

main04412-35040iLY2#,3#,RY2#,3#..ST197903-198507

main04412-36030iBY3#,JY30197903-198408

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-35010iLY2#,3#,RY2#,3#..WT197903-198507

main42181-36010iLY2#,3#,RY2#,3#..ST197903-198507

sub42181-60060

main42181-36030iBY3#,JY30197903-198507

sub42181-36060

9017008204

main90170-08204

9111150814

main91111-50814

9411050800

main94110-50800

9451200800

main94512-00800

9453101200

main94531-01200

42 parts on this diagram · 3 diagrams in section
