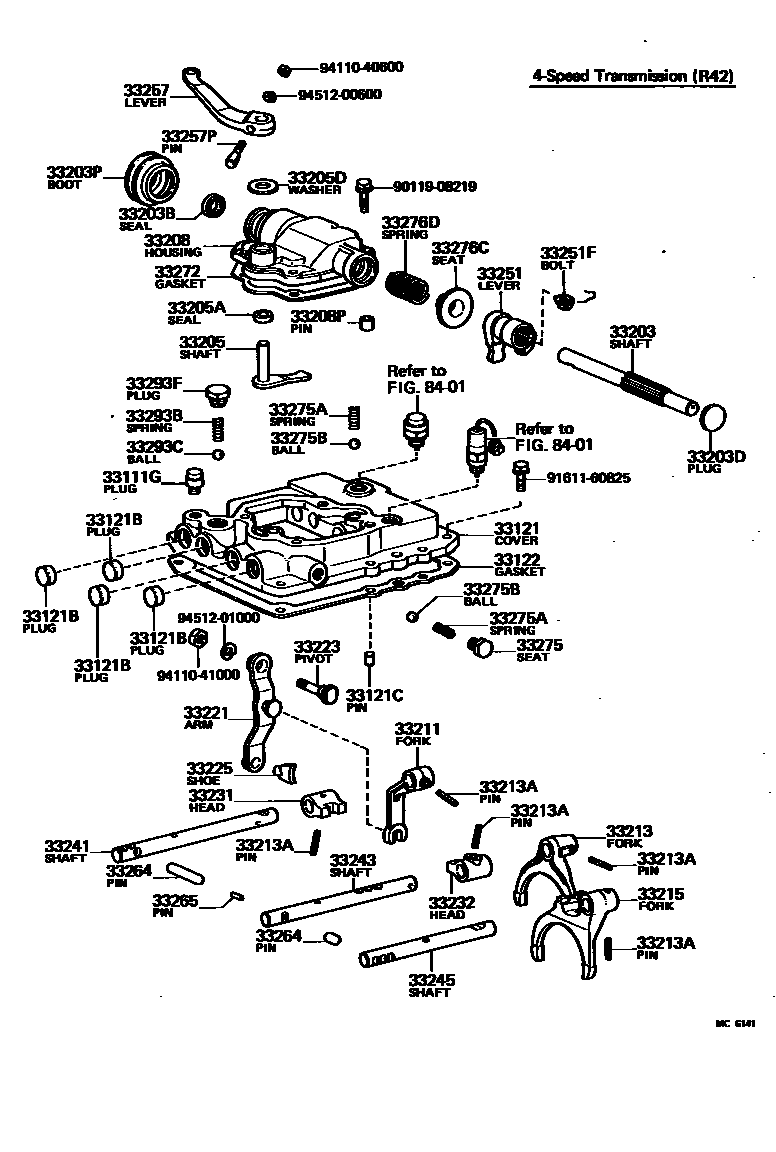

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03065iBY30,JY30197903-198101

main90930-03072iLY20,30,RY20,31197903-198101

sub90930-03075

main90930-03075iBY30,JY30,LY20,30,RY2#,3#198101-198211

main90930-03085iBY3#,JY30,LY2#,3#,RY21,32198211-198507

main90930-03090iBY31198402-198507

33121COVER, MANUAL TRANSMISSION CASE

main33121-25020iRY21197903-198507

main33121-25030iLY2#,3#197903-198507

main33121-36040iBY31..DMP198308-198408

main33121-36080iJY30;BY3#..TR197903-198507

main33121-36090iBY31..DMP198408-198507

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main90331-16050iBY3#,JY30197903-198507

sub96411-11600

main90331-19003iLY2#,3#,RY2#,3#197903-198507

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-25010iLY2#,3#,RY2#,3#197903-198507

main33122-36011iBY31..DMP198308-198507

main33122-36020iJY30;BY3#..TR197903-198507

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-25013iLY2#,3#,RY2#,3#197903-198507

main33261-36012iBY31..DMP198308-198507

main33261-36040iJY30;BY3#..TR197903-198507

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90312-17001iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)

main90331-20001iJY30197903-197907

sub90331-20044

main90331-20044iJY30;BY3#..TR197907-198507

main96411-12500iBY31..DMP198308-198507

sub96411-42500

main96412-12800iLY2#,3#,RY2#,3#197903-198507

33203PBOOT, DUST(FOR SHIFT LEVER SHAFT)

main33531-25010iLY2#,3#,RY2#,3#197903-198507

main33531-36020iJY30;BY3#..TR197903-198507

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-36031iBY31..DMP198308-198507

main33205-36050iJY30;BY3#..TR197903-198507

main33262-25010iLY2#,3#,RY2#,3#197903-198507

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13151iJY30197903-198004

main90201-13228iLY2#,3#,RY2#,3#197903-198507

sub90201-13012

main94612-11300iBY3#,JY30198004-198507

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33271-25011iLY2#,3#,RY2#,3#197903-198507

main33271-36060iBY30198201-198308

main33271-36060iBY31..TR198308-198507

W/EXH BRAKE

main33271-36070iBY31..TR197903-198507

sub33271-36060

sub90341-16013

main33271-36090iBY31..DMP198308-198507

W/EXH BRAKE

main33271-36100iBY31..DMP198308-198507

sub33271-36090

sub90341-16013

33208PPIN, RING(FOR SHIFT LEVER SHAFT HOUSING)

main90253-11001iLY2#,3#,RY2#,3#197903-198507

33211FORK, REVERSE SHIFT

main33211-25010iLY2#,3#,RY2#,3#197903-198507

main33211-36011iBY31..DMP198308-198507

main33211-36020iJY30;BY3#..TR197903-198507

33213FORK, 1ST & 2ND SHIFT

main33212-36011iJY30;BY3#..TR197903-198507

main33212-36020iBY31..DMP198308-198507

main33213-35011iLY2#,3#,RY2#,3#197903-198507

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iLY2#,3#197903-198507

L=22

main90254-05016iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

L=25.5

33215FORK, 3RD & 4TH SHIFT

main33213-25010iLY2#,3#,RY2#,3#197903-198507

main33213-36020iJY30;BY3#..TR197903-198507

main33213-36030iBY31..DMP198308-198507

33221ARM, REVERSE SHIFT

main33201-25010iLY2#,3#,RY2#,3#197903-198507

sub33201-25011

main33201-36030iBY31..DMP198308-198507

main33201-36040iJY30;BY3#..TR197903-198507

33223PIVOT, SHIFT ARM

main33223-35011iLY2#,3#,RY2#,3#197903-198507

sub33223-35012

main33223-36010iBY30,JY30197903-198206

sub33223-36020

main33223-36020iBY3#,JY30198206-198507

33225SHOE, SHIFT ARM

main33225-36010iLY2#,3#,RY2#,3#197903-198507

sub33225-36011

main33225-36030iBY3#,JY30197903-198507

33231HEAD, REVERSE SHIFT

main33202-36030iJY30;BY3#..TR197903-198507

main33202-36040iBY31..DMP198308-198507

main33231-25010iRY2#,3#197903-198507

main33232-25011iLY2#,3#197903-198507

33232HEAD, 1ST & 2ND SHIFT

main33231-25010iLY2#,3#,RY2#,3#197903-198507

main33232-36020iBY31..DMP198308-198507

main33232-36040iJY30;BY3#..TR197903-198507

33241SHAFT, REVERSE SHIFT FORK

main33241-25010iRY2#,3#197903-198507

main33241-25021iLY2#,3#197903-198507

main33241-36021iJY30;BY3#..TR197903-198507

main33241-36030iBY31..DMP198308-198408

main33241-36050iBY31..DMP198408-198507

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-25010iLY2#,3#,RY2#,3#197903-198507

main33242-36030iBY31..DMP198308-198507

sub33242-36031

main33242-36040iJY30;BY3#..TR197903-198507

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-25010iLY2#,3#,RY2#,3#197903-198507

main33243-36020iJY30;BY3#..TR197903-198507

main33243-36031iBY31..DMP198308-198507

33251LEVER, SHIFT & SELECT

main33251-25010iLY2#,3#,RY2#,3#197903-198507

main33251-36013iBY31..DMP198308-198507

main33251-36030iBY31..TR198308-198507

W/EXH BRAKE

main33251-36030iBY30198201-198308

main33251-36050iBY30,JY30197903-198507

sub33251-36030

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main33218-35010iBY30,JY30,LY2#,3#,RY2#,3#197903-198507

33257LEVER, SELECT OUTER

main33257-25020iLY2#,3#,RY2#,3#197903-198507

main33257-36040iBY31..DMP198308-198507

main33257-36050iJY30;BY3#..TR197903-198507

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90360-10003iLY2#,3#197903-198507

main90361-10008iJY30;BY3#,LY2#,3#,RY2#,3#..TR197903-198507

L=15,OD=9.5

main90361-10009iLY2#,3#,RY2#,3#197903-198507

L=38.9,OD=9.5

main90361-10037iBY31..DMP198308-198507

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05034iBY30,JY30,LY20,30,RY2#,3#197903-198408

main90361-05001iBY3#,JY30198209-198507

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-25010iLY2#,3#,RY2#,3#197903-198507

main33272-36011iBY31..DMP198308-198507

main33272-36020iJY30;BY3#..TR197903-198507

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90250-10215iBY3#,JY30197903-198507

main90341-12055iLY2#,3#,RY2#,3#197903-198507

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14029iLY2#,3#,RY2#,3#197903-198507

sub90501-16115

main90501-14237iJY30;BY3#..TR197903-198507

main90501-14772iBY31..DMP198308-198507

33275BBALL, SHAFT DETENT

main90360-10003iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-10004iBY31..DMP198308-198507

main90341-12055iLY2#,3#197903-198507

33276CSEAT, SELECT SPRING

main33276-25011iLY2#,3#,RY2#,3#197903-198507

33276DSPRING, COMPRESSION (FOR SELECT LEVER SHAFT)

main90501-26012iLY2#,3#,RY2#,3#197903-198507

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14029iLY2#,3#,RY2#,3#197903-198507

sub90501-16115

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iLY2#,3#,RY2#,3#197903-198507

33293FPLUG (FOR REVERSE RESTRICT BALL HOLDER)

main90341-18005iLY2#,3#,RY2#,3#197903-198507

8401

9011908219

main90119-08219

9161160825

main91611-60825

9411040600

main94110-40600

9411041000

main94110-41000

9451200600

main94512-00600

9451201000

main94512-01000

49 parts on this diagram · 4 diagrams in section
