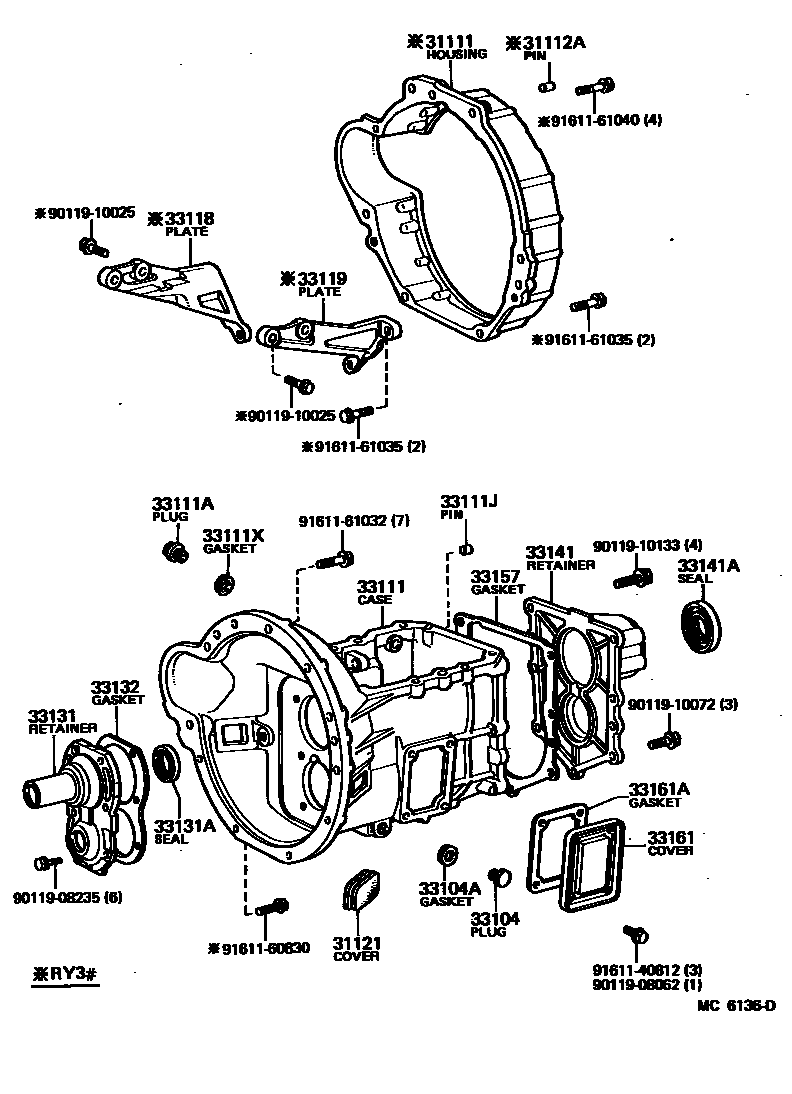

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31111HOUSING, CLUTCH

main31111-25020iJY30197903-198004

sub31111-25021

main31111-25021iJY30198004-198308

main31111-36050iBY3#198009-198408

main31111-36170iBY31198408-198507

main31112-25010iLY2#,3#197903-198507

main31112-25020iRY3#197903-198507

31112APIN, DOWEL CLUTCH HOUSING

main90250-10052iLY2#,3#,RY3#197903-198507

31121COVER, CLUTCH HOUSING, NO.1

main31121-25021iLY2#,3#,RY2#,3#197903-198507

main31121-36040iBY3#198009-198507

sub31121-36110

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iBY3#,JY30197903-198507

main90341-18081iLY2#,3#,RY2#,3#197903-198507

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iBY30,JY30,LY20,30,RY20,31197903-198108

main90430-18007iBY3#,JY30,LY2#,3#,RY2#,3#198108-198408

sub90430-18008

main90430-18008iBY31,LY2#,31,RY21,32198408-198507

33111CASE, MANUAL TRANSMISSION

main33101-36021iJY30197903-198006

main33101-36022iBY30,JY30198006-198101

sub33101-36023

main33101-36023iJY30;BY3#..TR198101-198507

main33111-25050iRY2#,3#197903-198507

main33111-25060iLY2#,3#197903-198507

main33111-36080iBY31..DMP198308-198507

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iBY30,JY30,LY20,30,RY2#,3#197903-198304

main90341-18006iJY30;BY3#,LY2#,3#,RY21,32..TR198304-198507

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10214iBY31..DMP197903-198507

main90250-12146iBY3#,JY30197903-198507

main90250-12216iBY3#,JY30197903-198507

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iBY30,JY30,LY20,30,RY20,31197903-198108

main90430-18007iBY3#,JY30,LY2#,3#,RY2#,3#198108-198408

sub90430-18008

main90430-18008iBY31,LY2#,31,RY21,32198408-198507

33118PLATE, STIFFENER, RH(MTM)

main33118-25010iJY30197903-198308

main33118-25020iLY2#,3#197903-198507

main33118-25030iRY3#197903-198507

main33118-36010iBY3#198009-198408

sub33118-36020

main33118-36020iBY31198408-198507

33119PLATE, STIFFENER, LH(MTM)

main33119-25010iJY30197903-198308

main33119-25020iLY2#,3#197903-198507

main33119-25031iRY3#197903-198507

main33119-36010iBY3#198009-198408

main33119-36020iBY31198408-198507

33131RETAINER, BEARING, FRONT(MTM)

main33131-35011iLY2#,3#,RY2#,3#197903-198507

main33131-36011iBY31..DMP198308-198507

main33131-36022iBY30,JY30197903-198110

sub33131-36023

main33131-36023iJY30;BY3#..TR198110-198507

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-28004iBY31..DMP197903-198507

main90311-32106iJY30;BY3#..TR197903-198507

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-25010iLY2#,3#,RY2#,3#197903-198507

main33132-36010iBY31..DMP198308-198507

main33132-36022iJY30;BY3#..TR197903-198507

33141RETAINER, TRANSMISSION BEARING, REAR

main33103-36011iBY31..DMP198308-198408

main33141-25020iRY2#,3#197903-198308

sub33141-25021

sub33404-35010

sub33482-29035

sub33482-39035

sub33482-39095

sub33482-39105

sub33482-39115

sub33485-30020

main33141-25021iRY21,32198308-198507

main33141-25030iLY20,30197903-198308

sub33141-25031

sub33404-35010

sub33482-29035

sub33482-39035

sub33485-30020

sub90363-30039

sub90560-30004

main33141-25031iLY2#,31198308-198507

main33141-36090iBY31..DMP198408-198507

33141ASEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)

main90311-38093iLY2#,3#,RY2#,3#197903-198507

main90311-45001iBY3#,JY30197903-198507

33157GASKET, TRANSMISSION CASE, NO.2

main33142-25010iLY2#,3#,RY2#,3#197903-198507

main33142-36020iJY30;BY3#..TR197903-198507

main33142-36030iBY31..DMP198308-198507

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-25010iLY2#,3#,RY2#,3#197903-198507

main33161-36010iBY31..DMP197903-198507

main33161-36030iBY31..TR198408-198507

33161AGASKET, TRANSMISSION POWER TAKE-OFF COVER(MTM)

main33162-25010iLY2#,3#,RY2#,3#197903-198507

main33162-36020iBY3#,JY30197903-198507

main33162-36040iBY31..TR198408-198507

9011908062

main90119-08062

9011908235

main90119-08235

9011910025

main90119-10025

9011910072

main90119-10072

9011910133

main90119-10133

9161140812

main91611-40812

9161160830

main91611-60830

9161161032

main91611-61032

9161161035

main91611-61035

9161161040

main91611-61040

29 parts on this diagram · 6 diagrams in section
