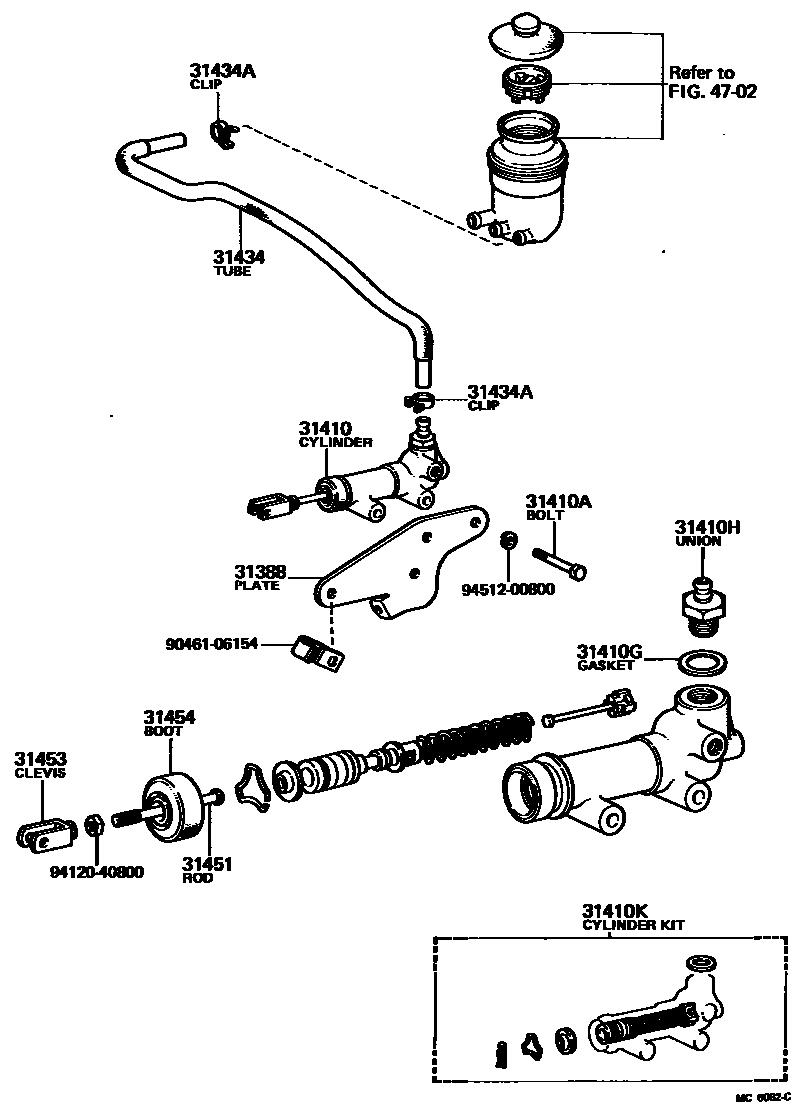

CLUTCH MASTER CYLINDER

31388SUPPORT, CLUTCH MASTER CYLINDER

main55107-95015iBY30,JY30,LY20,30,RY20,31197903-198507

main55107-95016iBY30198201-198308

W/EXHAUST BRAKE

31410CYLINDER ASSY, CLUTCH MASTER

main31420-36030iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

sub31420-36031

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91121-40870iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

sub91131-40870

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90404-16307iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

31410KCYLINDER KIT, CLUTCH MASTER

main04311-14010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

sub04311-14011

31434TUBE, CLUTCH RESERVOIR

main31434-25030iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-14010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

sub31453-35010

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

4702

9046106154

main90461-06154

9412040800

main94120-40800

9451200800

main94512-00800

15 parts on this diagram · 1 diagram in section
