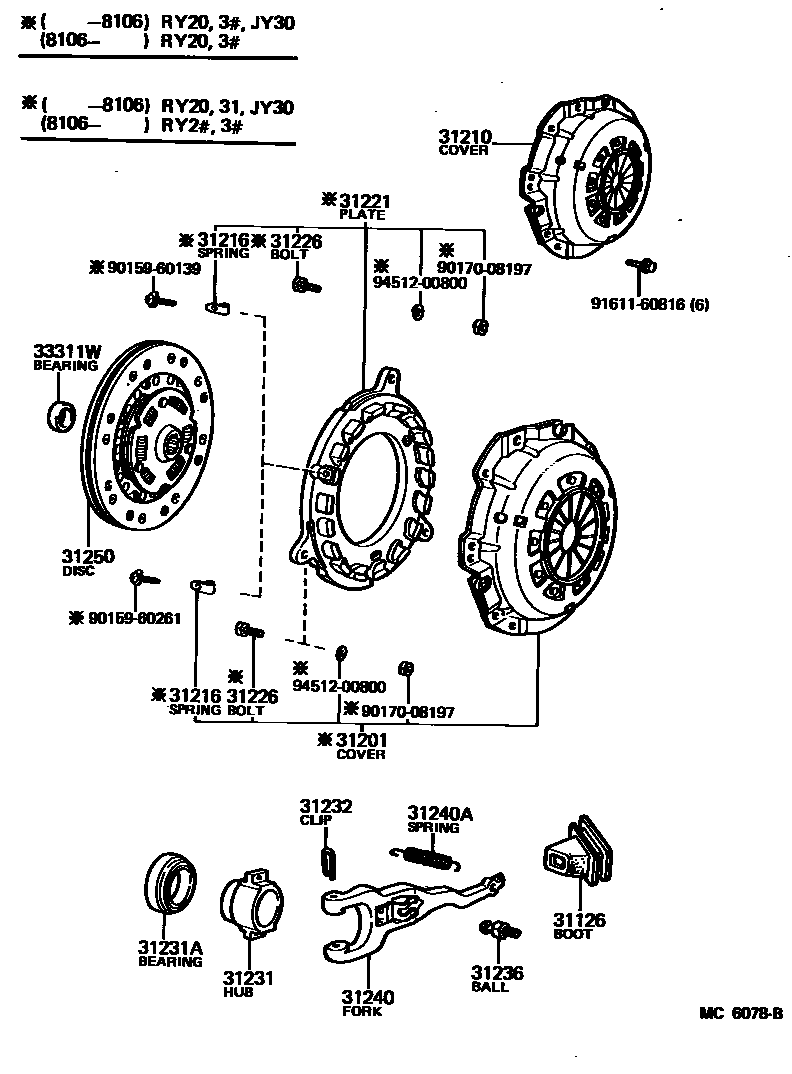

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iBY3#,JY30197903-198507

main31126-25021iLY2#,3#,RY2#,3#197903-198507

31201COVER SUB-ASSY, CLUTCH

main31201-19095iLY21,31198308-198507

sub31201-14110

main31201-29075iJY30,LY20,30,RY31197903-197908

sub31201-29076

main31201-29076iLY20,30,RY31197908-198101

sub31201-29085

main31201-29085iLY20,30,RY3#198101-198507

sub31201-26010

main31201-29095iBY3#..TR198009-198408

sub31210-25050

main31201-39045iRY20197903-197908

sub31201-39046

main31201-39046iRY20197908-198004

sub31201-39047

main31201-39047iRY2#198004-198507

main31201-39076iJY30198004-198010

sub31201-39077

main31201-39077iJY30198010-198106

sub31201-39078

main31201-39115iBY31..DMP198308-198408

31210COVER ASSY, CLUTCH

main31210-14110iJY30198106-198208

sub31210-14111

main31210-14111iJY30198208-198308

sub31210-14121

main31210-14130iLY21,31198308-198507

sub31210-35090

main31210-25040iJY30198004-198106

sub31210-14110

main31210-25050iBY3#..TR198009-198408

sub31210-36100

main31210-35040iRY20197903-197908

sub31210-35041

main31210-35041iRY20197908-198004

sub31210-35042

main31210-35042iRY2#198004-198507

sub31210-22120

main31210-36027iJY30,LY20,30,RY31197903-197908

sub31210-36028

main31210-36028iLY20,30,RY31197908-198101

sub31210-36029

main31210-36029iLY20,30,RY3#198101-198507

sub31210-36200

main31210-36090iBY31..DMP198308-198408

main31210-36100iBY31198408-198507

31216SPRING, CLUTCH RETRACTING

main31216-30010iJY30197903-198507

main31216-36010iBY3#198009-198507

31221PLATE, CLUTCH PRESSURE

main31221-29045iJY30198004-198106

sub31210-14110

main31221-39045iRY2#197903-198507

sub31221-35020

main31221-39056iJY30,LY20,30,RY31197903-198507

sub31221-36025

main31221-39075iBY3#..TR198009-198408

sub31210-36100

main31221-39125iBY31..DMP198308-198507

sub31221-36090

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022iLY2#,31,RY21,32197903-198507

main90101-08350iJY30197903-198308

sub90101-08022

main90109-08081iBY3#198009-198507

31231HUB, CLUTCH RELEASE BEARING

main31231-20030iJY30197903-197904

sub31231-20031

main31231-20031iJY30197904-198004

main31231-20051iLY20,30,RY20,31197903-197904

sub31231-20052

main31231-20052iLY20,30,RY20,31197904-198009

main31231-25010iJY30198004-198308

main31231-30080iLY2#,3#,RY2#,3#198009-198507

main31231-36062iBY3#198009-198507

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40003iJY30,LY20,30,RY20,31197903-198004

sub90363-40010

main90363-40008iJY30198004-198010

main90363-40010iLY20,30,RY20,31198004-198009

main90363-40019iLY20,30,RY2#,3#198009-198211

sub90363-40022

main90363-40022iJY30198211-198507

main90363-45001iBY30198009-198110

main90363-45002iBY3#198110-198507

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010iJY30197903-198308

main31232-30010iLY20,30,RY20,31197903-198507

main31232-30020iLY2#,3#,RY2#,3#198009-198507

31236BALL, RELEASE FORK

main31236-25010iLY2#,3#,RY2#,3#197903-198507

main31236-30030iJY30197903-198004

main31236-30040iBY3#,JY30198004-198507

31240FORK ASSY, CLUTCH RELEASE

main31204-20020iLY20,30197903-198007

sub31204-26010

main31204-20031iRY20,31197903-198009

main31204-25010iBY3#,JY30198004-198507

main31204-25020iRY2#,3#198009-198507

main31204-26010iLY2#,3#198007-198507

main31204-36030iJY30197903-198004

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-14041iRY2#,3#198111-198507

main90506-16004iBY3#,JY30,LY2#,3#197903-198507

main90506-16466iRY20,31197903-198111

31250DISC ASSY, CLUTCH

main31250-14110iRY20..WT198109-198201

sub31250-25090

main31250-22101iLY2#,3#198105-198507

sub31250-22102

main31250-25020iRY20..WT197903-198109

sub31250-14110

main31250-25030iRY31197903-198006

sub31250-25031

main31250-25031iRY3#198006-198507

sub31250-22121

main31250-25060iJY30,LY20,30197903-197908

sub31250-25061

main31250-25061iJY30,LY20,30197908-198004

sub31250-25062

main31250-25062iLY20,30198004-198006

sub31250-25063

main31250-25063iLY20,30198006-198008

sub31250-35080

main31250-25070iLY20,30198008-198105

sub31250-22101

main31250-25080iJY30198004-198006

sub31250-25081

main31250-25081iJY30198006-198308

sub31250-25082

main31250-25090iRY21198201-198312

sub31250-25091

main31250-25091iRY21198312-198507

sub31250-35062

main31250-25100iRY20..ST198107-198201

sub31250-35061

main31250-28011iRY20..ST197903-198107

sub31250-25100

main31250-36113iBY30198009-198210

sub31250-60090

main31250-36161iBY3#198210-198408

sub31250-36230

main31250-36230iBY31198408-198507

sub31250-36231

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBY3#,JY30,LY2#,3#,RY2#,3#198002-198507

sub90363-12024

main97143-06201iJY30,LY20,30,RY20,31197903-198011

9015960139

main90159-60139

9015960261

main90159-60261

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

19 parts on this diagram · 3 diagrams in section
