IGNITION COIL & SPARK PLUG / GLOW PLUG

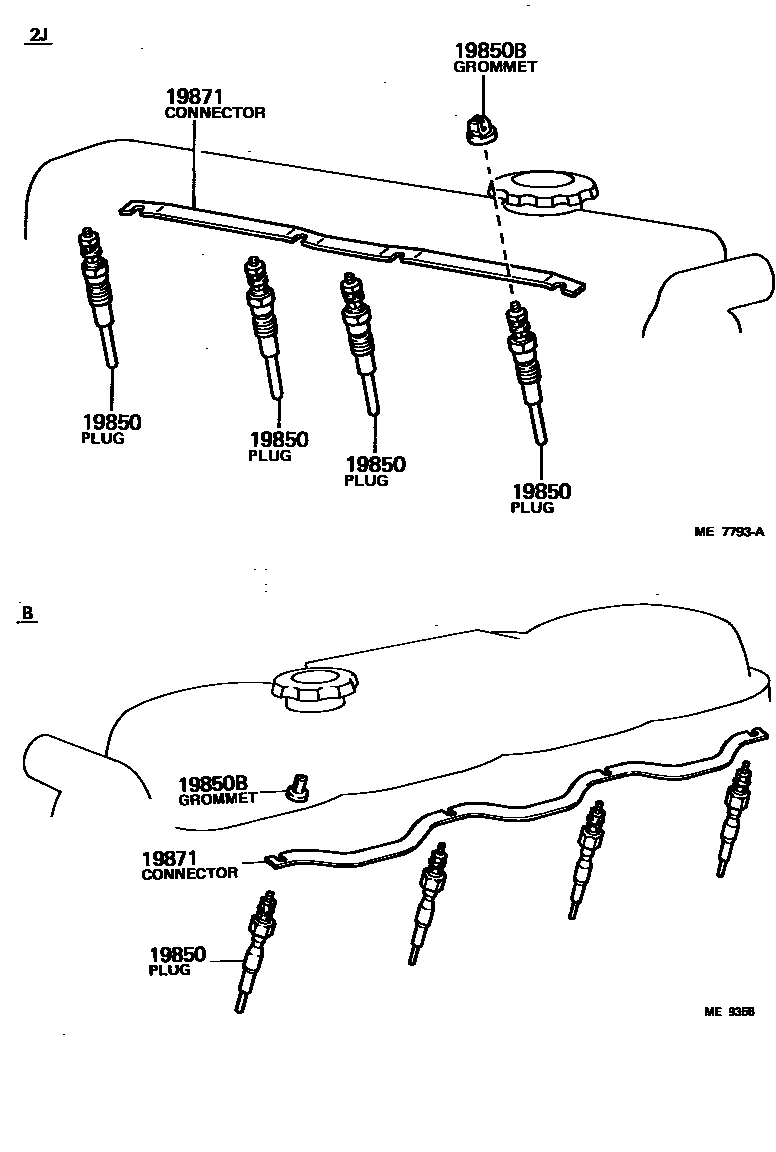

Parts diagram
19850PLUG ASSY, GLOW
main19850-48010i197903-198008
*12V-10.5V
sub19850-68010
sub90189-04024
main19850-48020i197903-198008
COLD SPEC,*24V-23V
sub19850-68020
sub90189-04024
main19850-54010i197903-198004
*12V-11V
sub19850-54090
sub90179-04019
main19850-54020i197903-198003
COLD SPEC,*24V-23V
main19850-54030i198004-198201
*12V-11V
sub19850-54031
main19850-54040i198003-198201
COLD SPEC,*24V-23V
sub19850-54020
sub90170-05001
sub90189-06004
main19850-54050i198201-198507
main19850-54060i198201-198507
COLD SPEC,*24V-16V
main19850-68010i198008-198201
main19850-68020i198009-198201
main19850-68020i198008-198201
main19850-68050i198201-198308
sub19850-68051
main19850-68060i198201-198507
main19850-68060i198201-198308
19850BGROMMET, SCREW(FOR GLOW PLUG)
main90189-04024i198004-198507
main90189-05011i197903-198008
NO.4
main90189-06004i197903-198004
main90189-06004i197903-198008
NO.1,NO.2,NO.3
19871CONNECTOR, GLOW PLUG NO.1
main19871-48010i197903-198308
main19871-54010i197903-198507
sub19871-54011
main19871-56020i198009-198507

3 parts on this diagram · 2 diagrams in section
