WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

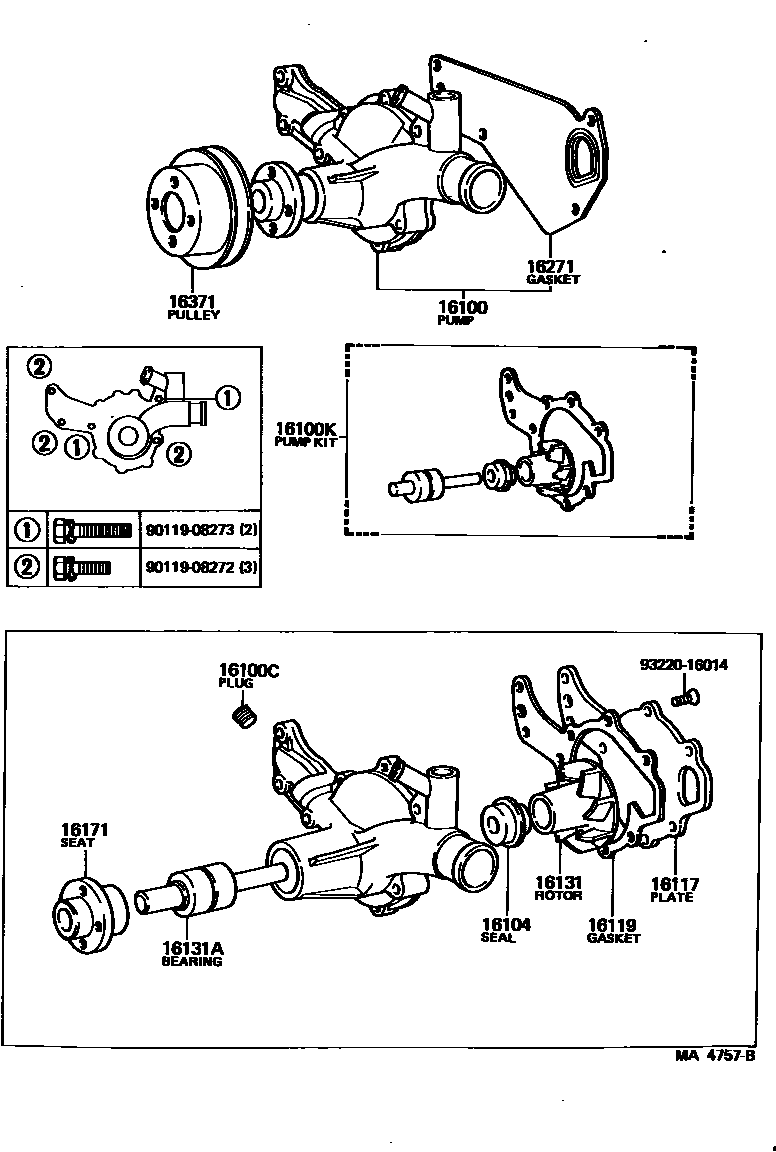

16100PUMP ASSY, ENGINE WATER

main16100-39116i12R..RY2#197903-198507

main16100-49207i2J..JY30197903-197904

sub16100-49208

main16100-49208i2J..JY30197904-198308

main16100-49415i5R..RY3#197903-198507

sub16100-49416

main16100-59047iL..LY20,30197903-198008

sub16100-59049

main16100-59049iL..LY20,30198008-198105

sub16100-59125

main16100-59065iB..BY30198009-198308

sub16100-59075

main16100-59096iB..BY31198308-198408

main16100-59125iL..LY20,30198105-198108

sub16100-59215

main16100-59126iL..LY20,30198108-198210

sub16100-59127

main16100-59127iL..LY20,30198210-198507

sub16100-59128

main16100-59137i2L..LY21,31198308-198507

sub16100-59138

main16100-59145iB..BY31198408-198507

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010iB..BY3#198009-198507

16100KPUMP KIT, WATER

main04161-31023i12R..RY2#197903-198507

main04161-48011i2J..JY30197903-198308

main04161-56050iB..BY31198308-198408

sub04161-56051

main04161-56060iB..BY30198009-198308

sub04161-56061

main04161-56090iB..BY31198408-198507

sub04161-56091

16104SEAL SET, WATER PUMP

main16104-15020iB..BY31198408-198507

main16104-41110i2J..JY30197903-198308

sub16104-41111

main16104-41111i12R,5R..RY2#,3#197911-198410

16117PLATE, WATER PUMP

main16117-31031i12R..RY2#197903-198507

main16117-44010i5R..RY3#197903-198507

main16117-48010i2J..JY30197903-198308

main16117-56040iB..BY3#198009-198507

16119GASKET, WATER PUMP BODY

main16119-44010i5R..RY3#197903-198507

sub16119-44011

main16119-56040iB..BY3#198009-198507

sub16119-56041

main16124-31031i12R..RY2#197903-198507

sub16124-31032

16131ROTOR, WATER PUMP

main16131-31031i12R..RY2#197903-198507

main16131-44070i5R..RY3#197903-198507

main16131-48013i2J..JY30197903-198507

main16131-56020iB..BY3#198009-198408

main16131-56030iB..BY31198408-198507

16131ABEARING, WATER PUMP

main90369-30003i12R..RY2#197903-198507

WPB16124BR-3-R

sub90369-30022

main90369-30028i2J..JY30197903-198408

main90369-30060iB..BY31198408-198507

sub90369-30061

main90369-30063i5R..RY3#197903-198507

16171SEAT, WATER PUMP PULLEY

main16171-24031i12R,5R..RY2#,3#197903-198507

main16171-38022iB..BY31198408-198507

main16171-47010i2J..JY30197903-198308

main16171-54010iL..LY20,30197903-198408

main16171-54011iL,2L..LY2#,3#198108-198507

main16171-56010iB..BY30198009-198308

16271GASKET, WATER PUMP

main16271-31010i12R..RY2#197903-198507

main16271-44010i5R..RY31197903-198101

sub16271-44020

main16271-44020i5R..RY3#198101-198507

sub16271-44021

main16271-48010i2J..JY30197903-198308

sub16271-48011

main16271-54010iL..LY20,30197903-198008

main16271-54011iL..LY20,30198008-198105

sub16271-54012

main16271-54012iL,2L..LY2#,3#198105-198507

sub16271-54013

main16271-56020iB..BY3#198009-198507

sub16271-56030

16371PULLEY, FAN

main16371-31022i12R..RY2#197903-198507

main16371-44010i5R..RY3#197903-198507

main16371-46011i2J..JY30197903-198308

main16371-54010iL..LY20,30197903-198507

main16371-54020i2L..LY21,31198308-198507

main16371-56020iB..BY30198009-198211

sub16371-56021

main16371-56021iB..BY30198211-198308

main16371-56030iB..BY31198308-198408

main16371-56050iB..BY31198408-198507

9011908272

main90119-08272

9011908273

main90119-08273

9322016014

main93220-16014
