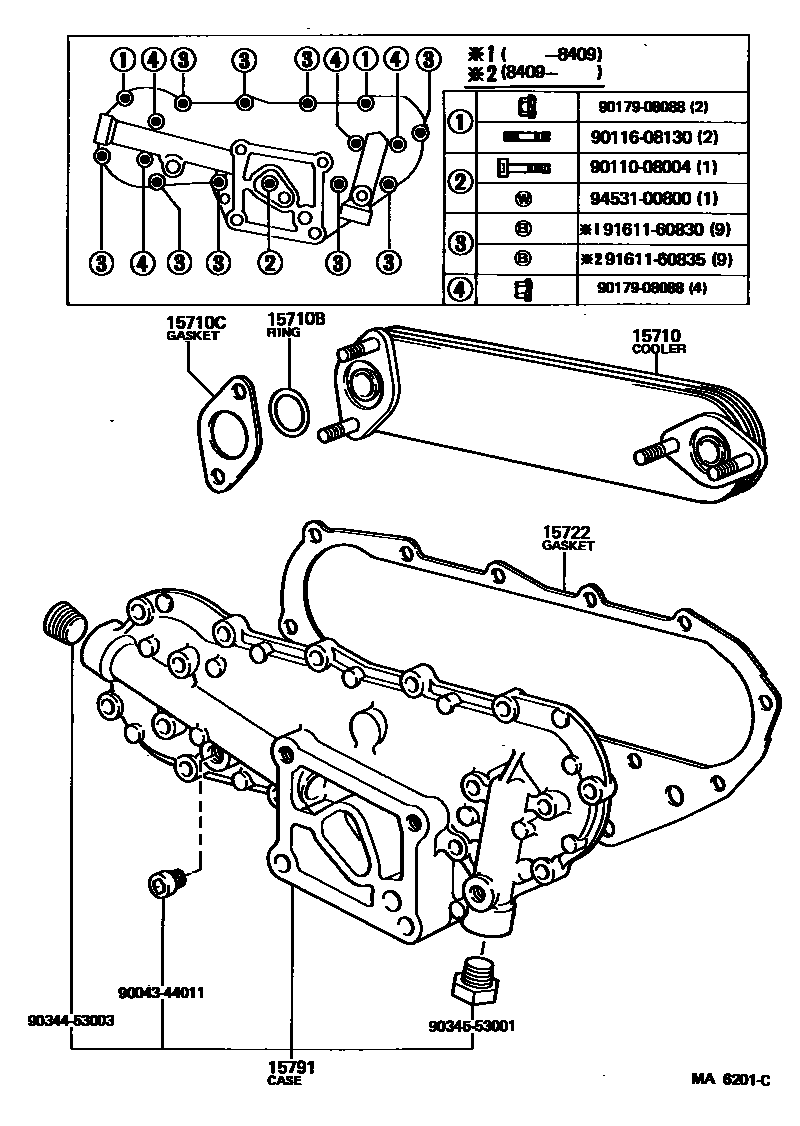

ENGINE OIL COOLER

0001 1 0002 1 0003 1 MA3699B,MA3073A

15710COOLER ASSY, OIL

main15710-48011i2J..JY30197903-198308

3200 KCAL

sub15710-48020

main15710-48020i2J..JY30197903-198201

3600 KCAL

main15710-54020iL..LY20,30197903-198011

sub15710-54021

main15710-54021iL..LY20,30198011-198507

main15710-54030i2L..LY21,31198308-198507

main15710-56030iB..BY3#198009-198408

sub15710-56031

main15710-56031iB..BY31198408-198507

15710BRING, O(FOR OIL COOLER)

main90301-20001iB..BY3#198009-198507

main90301-21176i2J..JY30197903-198308

15710CGASKET(FOR OIL COOLER)

main90430-18012i2J..JY30197903-198308

main90923-05009iL..LY20,30197903-198205

main90923-05014iB..BY3#198009-198507

sub90923-05018

main90923-05015iL,2L..LY2#,3#198205-198507

sub15785-54010

15722GASKET, OIL COOLER

main15725-56010iB..BY3#198009-198403

sub15725-56011

main15725-56011iB..BY31198403-198507

sub15725-56020

15791CASE, OIL COOLER

main15701-56010iB..BY3#198009-198403

sub15701-56011

main15701-56011iB..BY31198403-198507

9004344011

main90043-44011

9011008004

main90110-08004

9011608130

main90116-08130

9017908088

main90179-08088

9034453003

main90344-53003

9034553001

main90345-53001

9161160830

main91611-60830

9161160835

main91611-60835

9453100800

main94531-00800

14 parts on this diagram · 3 diagrams in section
