ABS & VSC

42141AATTACHMENT, SKID CONTROL WIRE, NO.1

main42141-37010iXZU282¥250201203

82251BWIRE, SPEED SENSOR, REAR

main82251-37590iXZU282¥6,800201203

8401

88263ARELAY, SKID CONTROL

main88263-36040iXZU282¥4,700201203-201212

88263ERELAY, SKID CONTROL NO.2

main88263-36050iXZU282¥3,890201203-201212

89420ESENSOR ASSY, VACUUM

main89420-37010iXZU282¥9,400201203-201212

89540COMPUTER ASSY, SKID CONTROL

main89540-37110iXZU282¥198,000201203

89542SENSOR, SPEED, FRONT RH

main89542-37110iXZU282¥21,700201203-201212

89543SENSOR, SPEED, FRONT LH

main89543-37110iXZU282¥21,700201203-201212

89544SENSOR, SKID CONTROL

main89544-36030iXZU282¥9,200201203-201212

9012908007

main90129-08007¥90

9015960303

main90159-60303¥70

9155180620

main91551-80620¥60

91641C0612

main91641-C0612¥110

9165140616

main91651-40616¥60

91651B0825

main91651-B0825¥120

9413000802

main94130-00802¥90

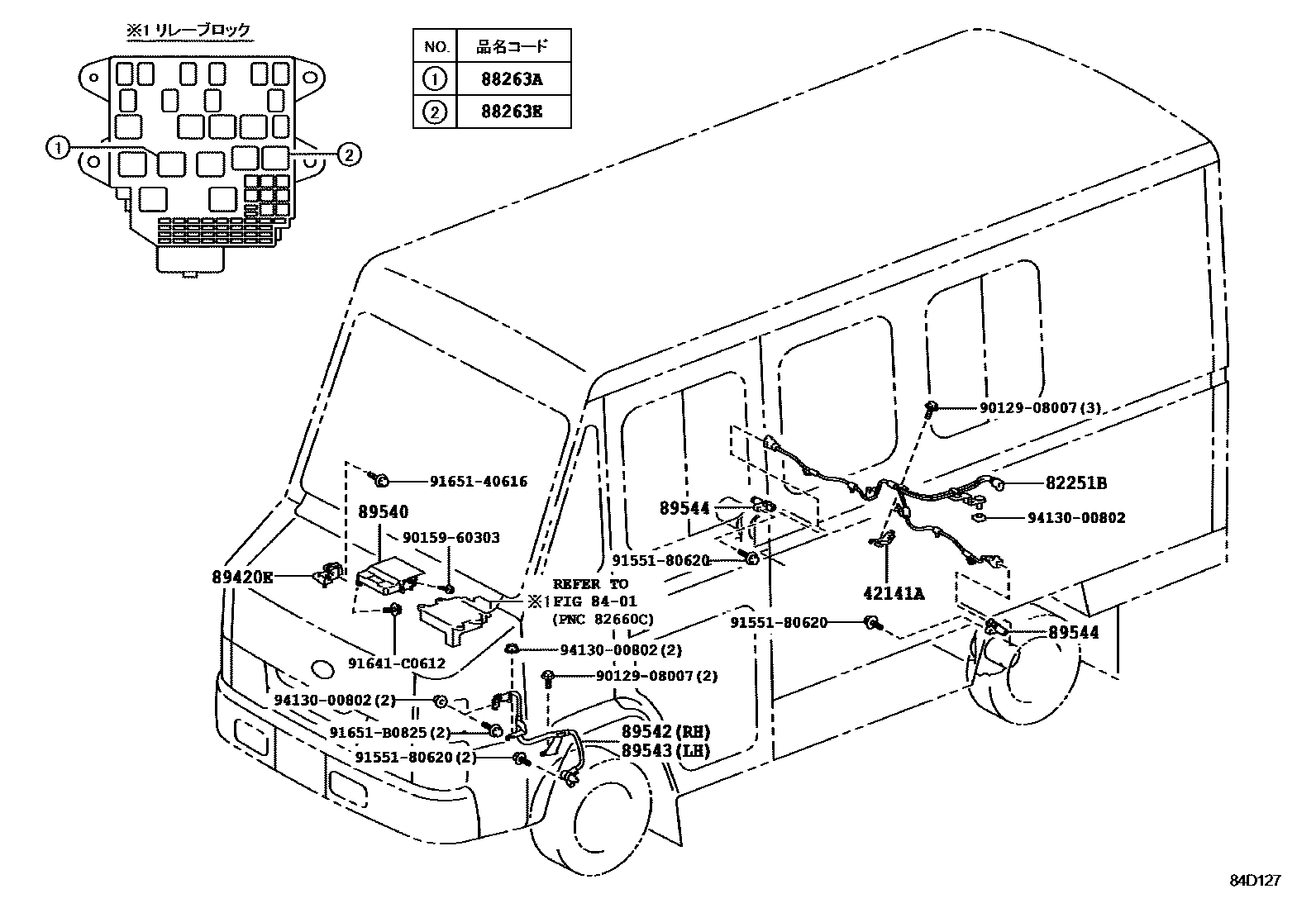

17 parts on this diagram · 1 diagram in section
