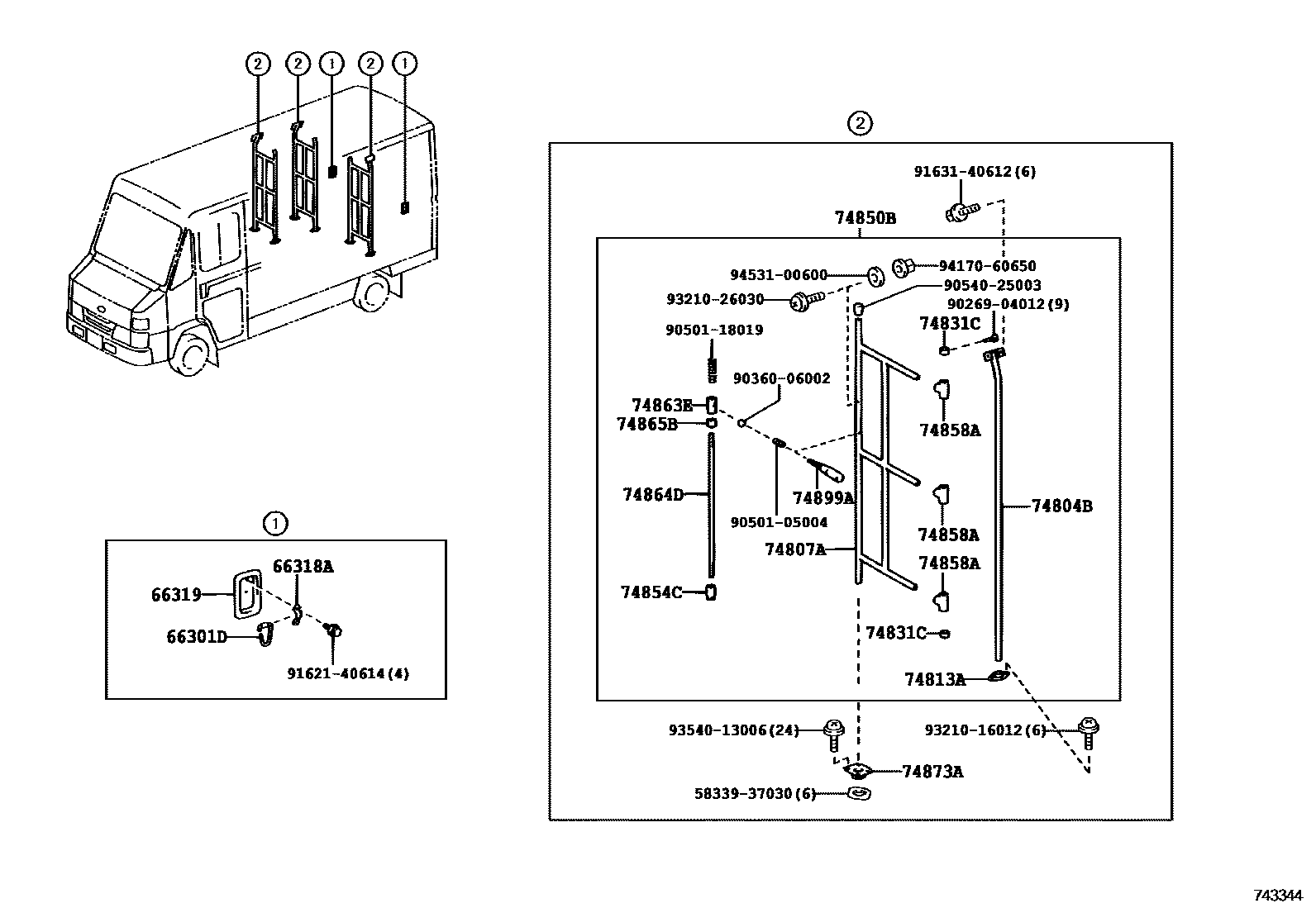

SEPARATOR & SEPARATOR CURTAIN

0001 1 0002 1���������

66301DHOOK SUB-ASSY, ROPE

main66301-90A00iXZU282¥500201203

66318ABAND, ROPE HOOK

main66318-90A00iXZU282¥110201203

66319PLATE, ROPE HOOK

main66319-90D01iXZU282¥1,090201203

74804BBAR SUB-ASSY, SEPARATOR VERTICAL, LH

main74804-37030iXZU282¥7,200201203

74807ABAR SUB-ASSY, REAR SEPARATOR

main74807-90D04iXZU282¥13,300201203

74813ABRACKET, SEPARATOR

main74813-90740iXZU282¥3,820201203

74831CPIPE, FRONT PROTECTOR, CENTER

main74831-90D00iXZU282¥590201203

74850BSEPARATOR SUB-ASSY, REAR

main74850-37010iXZU282¥61,000201203

74854CSTOP, SEPARATOR

main74854-90D02iXZU282¥1,720201203

74858ABRACKET, SEPARATOR BAR, UPPER

main74858-90D00iXZU282¥770201203

74863EROD, SEPARATOR

main74863-90D01iXZU282¥1,790201203

74864DSHAFT, SEPARATOR

main74864-90D01iXZU282¥1,820201203

74865BCOVER, CENTER PROTECTOR

main74865-90D01iXZU282¥260201203

74873ABRACKET, SEPARATOR, LOWER, NO.1

main74836-37010iXZU282¥450201203

74899AHANDLE, SEPARATOR

main74899-90D00iXZU282¥1,790201203

5833937030PACKING, INSPECTION HOLE

main58339-37030¥1,000

9026904012

main90269-04012¥210

9036006002

main90360-06002¥110

9050105004

main90501-05004¥160

9050118019

main90501-18019¥390

9054025003

main90540-25003¥260

9162140614

main91621-40614¥80

9163140612

main91631-40612¥120

9321016012

main93210-16012¥160

9321026030

main93210-26030¥120

9354013006

main93540-13006¥200

9417060650

main94170-60650¥70

9453100600

main94531-00600¥120

28 parts on this diagram · 2 diagrams in section
