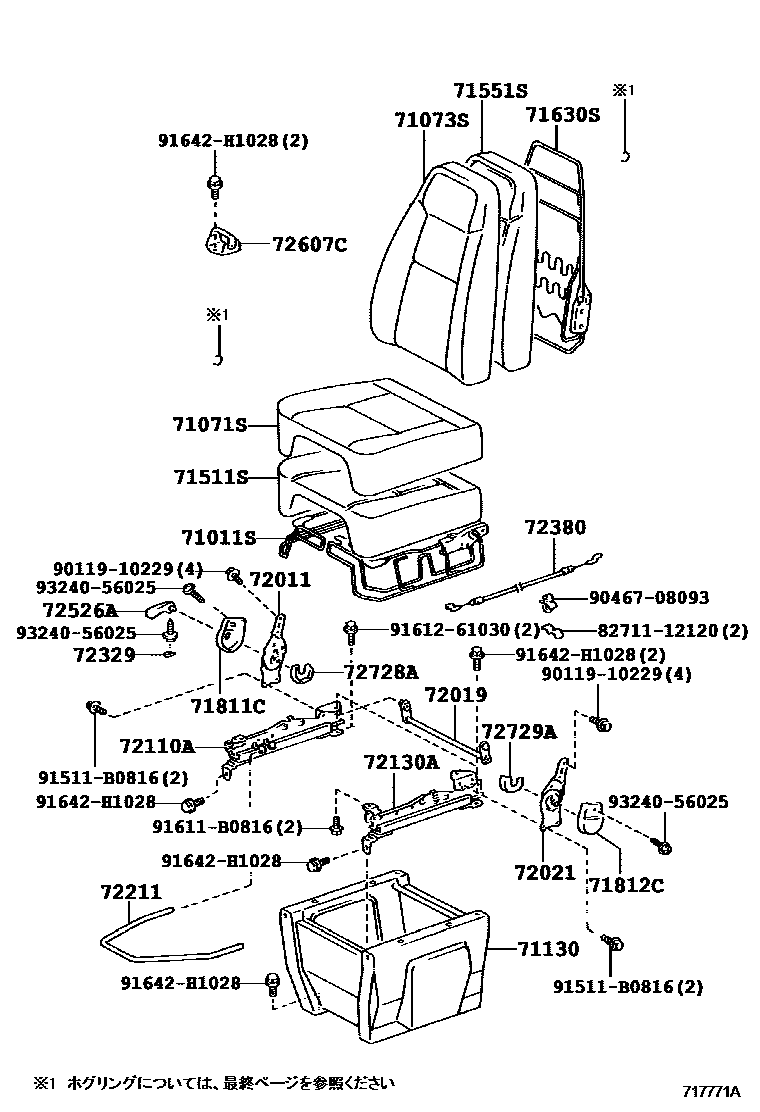

SEAT & SEAT TRACK
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71130LEG ASSY, FRONT SEAT, RH
BLUISH GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71811CCOVER, RECLINING ADJUSTER, RH
71812CCOVER, RECLINING ADJUSTER, LH
72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72019RETAINER SUB-ASSY, SEAT TRACK, REAR RH
72021ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72110ATRACK ASSY, FRONT SEAT, OUTER RH
72130ATRACK ASSY, FRONT SEAT, INNER RH
72211HANDLE, SEAT TRACK ADJUSTING
72329COVER, SEAT ADJUSTER BOLT
72380CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
72607CSTRIKER SUB-ASSY, FRONT SEAT CUSHION LOCK
72728APROTECTOR, FRONT SEAT RECLINING, INNER RH
72729APROTECTOR, FRONT SEAT RECLINING, INNER LH
8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12120
9011910229
main90119-10229
9046708093
main90467-08093
91511B0816
main91511-B0816
91611B0816
main91611-B0816
9161261030
main91612-61030
91642H1028
main91642-H1028
9324056025
main93240-56025
29 parts on this diagram · 3 diagrams in section
