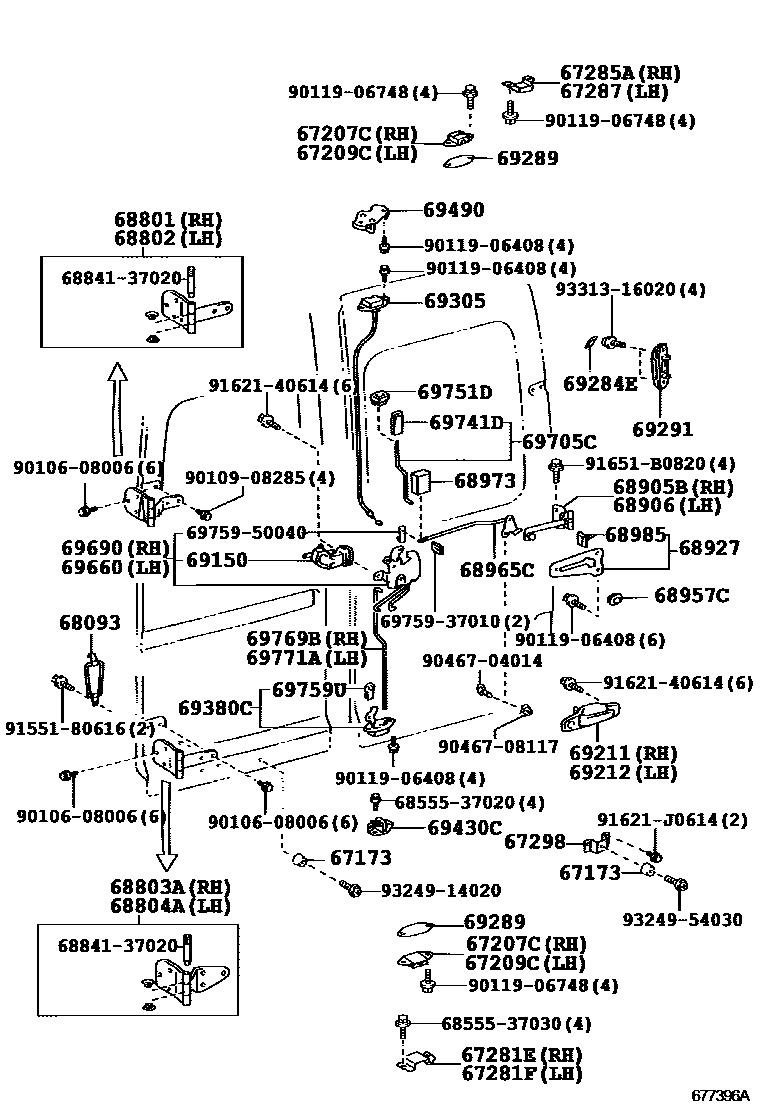

BACK DOOR LOCK & HINGE

67173CUSHION, BACK DOOR

main90540-04004iXZU282201203

main90541-03010iXZU282201203

67207CSTOPPER SUB-ASSY, BACK DOOR

main67207-37010×2iXZU282201203

67209CSTOPPER SUB-ASSY, BACK DOOR, NO.3

main67209-37010×2iXZU282201203

67281ESTOPPER, BACK DOOR DOWN MALE

main67281-37012iXZU282201203

67281FSTOPPER, BACK DOOR, LOWER

main67281-37022iXZU282201203

67285AANTI-RATTLE, BACK DOOR, RH

main67285-37011iXZU282201203

67287ANTI-RATTLE, BACK DOOR, LH

main67285-37011iXZU282201203

67298BRACKET, BACK DOOR STOPPER, NO.1

main67298-37010-A0iXZU282201203-201212

WHITE,058

main67298-37010-A1iXZU282201203-201212

YAMATOUNYU COBALT GR,9A7

68093STAY SUB-ASSY, BACK DOOR, NO.2

main68093-37010iXZU282201203

main68094-37020iXZU282201203

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-37011iXZU282201203

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68802-37011iXZU282201203

68803AHINGE SUB-ASSY, BACK DOOR, LOWER RH

main68803-37012iXZU282201203

68804AHINGE SUB-ASSY, BACK DOOR, LOWER LH

main68804-37022iXZU282201203

68905BSTAY SUB-ASSY, BACK DOOR, RH

main68905-37011iXZU282201203

68906STAY SUB-ASSY, BACK DOOR, LH

main68906-37011iXZU282201203

68927BASE, BACK DOOR STAY

main68091-37010iXZU282201203

main68092-37010iXZU282201203

68957CHOLDER, BACK DOOR STAY

main68957-37010×2iXZU282201203-201212

68965CSHAFT, BACK DOOR STAY

main68907-37010iXZU282201203

main68908-37010iXZU282201203

68973CUSHION, BACK DOOR STAY

main68973-37010×2iXZU282201203

68985STOPPER, BACK DOOR UPPER STAY

main68984-37010×2iXZU282201203

69150ACTUATOR ASSY, BACK DOOR LOCK

main85470-37021×2iXZU282201203

69211HANDLE, BACK DOOR OUTSIDE, RH

main69090-37010iXZU282201203

69212HANDLE, BACK DOOR OUTSIDE, LH

main69190-37010iXZU282201203

69284EPLUG, SLIDE DOOR INSIDE HANDLE

main69284-95J00-C0×4iXZU282201203-201212

BLACK,TRIM1#

69289SHIM, BACK DOOR STOPPER

main69289-90A00iXZU282201203

69291HANDLE ASSY, BACK DOOR INSIDE

main69205-37030-C0iXZU282201203-201212

main69206-37030-C0iXZU282201203-201212

69305LOCK SUB-ASSY, BACK DOOR, UPPER

main69350-37010×2iXZU282201203

69380CLOCK ASSY, BACK DOOR, LOWER

main69380-37010×2iXZU282201203

69430CSTRIKER ASSY, BACK DOOR LOCK

main69450-37011×2iXZU282201203

69490STRIKER ASSY, BACK DOOR LOCK

main69470-37010×2iXZU282201203

69660CONTROL ASSY, BACK DOOR LOCK REMOTE, LH

main69670-37021iXZU282201203

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-37021iXZU282201203

69705CLINK SUB-ASSY, BACK DOOR LOCK CONTROL

main69705-37010-C0×2iXZU282201203-201212

BLACK,TRIM1#

69741DKNOB, DOOR LOCK CONTROL(FOR BACK DOOR)

main69741-90K00-C0×2iXZU282201203-201212

BLACK,TRIM1#

sub69741-89102

sub69741-12040

sub69741-89104

69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)

main69751-12020-C0×2iXZU282201203-201212

BLACK,TRIM1#

sub69751-20031

69759USNAP, BACK DOOR LOCK CONTROL LINK

main69759-24010×2iXZU282201203

69769BROD, BACK DOOR LOWER LOCK CONTROL

main69769-37010iXZU282201203

69771AROD, BACK DOOR LOWER LOCK CONTROL, NO.1

main69771-37010iXZU282201203

6855537020BOLT, DOOR STAY

main68555-37020

6855537030BOLT, DOOR STAY

main68555-37030

6884137020COVER, TORSION BAR, RH

main68841-37020

6975937010SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-37010

6975950040SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-50040

9010608006

main90106-08006

9010908285

main90109-08285

9011906408

main90119-06408

9011906748

main90119-06748

9046704014

main90467-04014

9046708117

main90467-08117

9155180616

main91551-80616

9162140614

main91621-40614

91621J0614

main91621-J0614

91651B0820

main91651-B0820

9324914020

main93249-14020

9324954030

main93249-54030

9331316020

main93313-16020

56 parts on this diagram · 1 diagram in section
