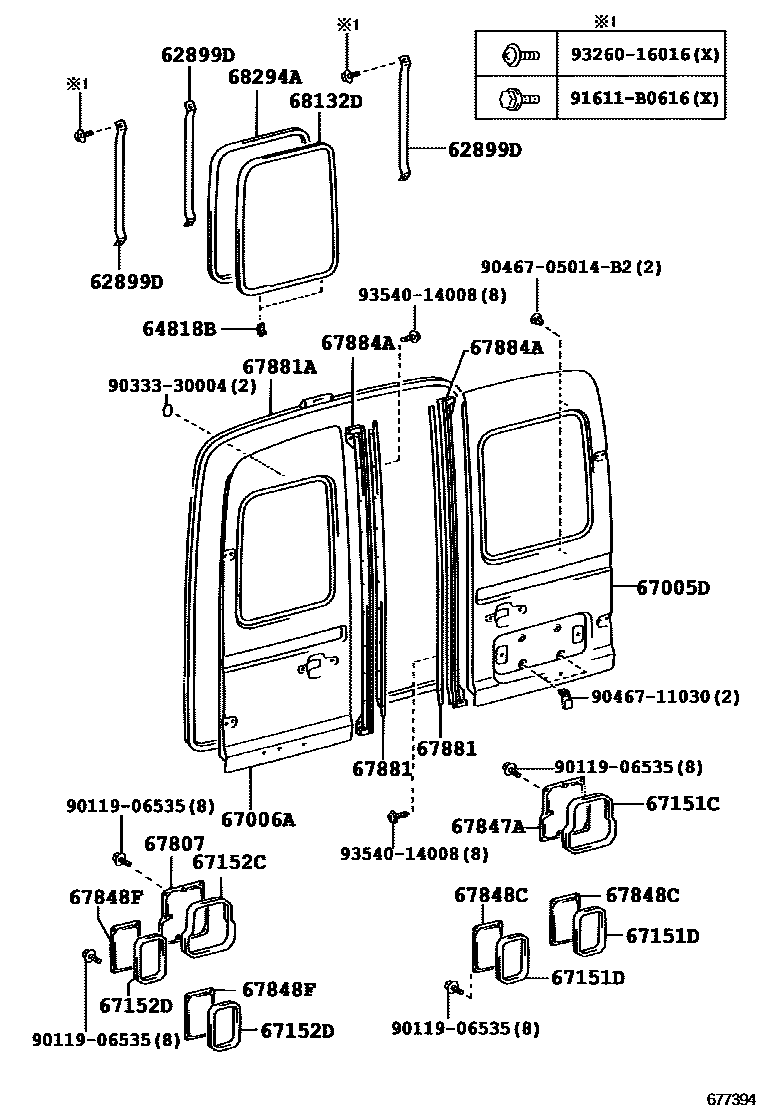

BACK DOOR PANEL & GLASS

62899DBAR, BACK DOOR WINDOW GUARD

main62899-37010×3iXZU282201203

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-13020×2iXZU282201203

67005DPANEL SUB-ASSY, BACK DOOR, RH

main67005-37073iXZU282201203

67006APANEL SUB-ASSY, BACK DOOR, LH

main67006-37033iXZU282201203

67151CPACKING, BACK DOOR SERVICE HOLE COVER, NO.1

main69838-37011iXZU282201203

67151DPACKING, BACK DOOR SERVICE HOLE COVER, NO.2

main69838-37011×2iXZU282201203

67152CPACKING, BACK DOOR SERVICE HOLE, NO.1

main69838-37011iXZU282201203

67152DPACKING, BACK DOOR SERVICE HOLE, NO.2

main69838-37011×2iXZU282201203

67807COVER SUB-ASSY, BACK DOOR SERVICE HOLE

main67847-37010iXZU282201203

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-37010iXZU282201203

67848CCOVER, BACK DOOR SERVICE HOLE, NO.2

main67848-37010×2iXZU282201203

67848FCOVER, BACK DOOR SERVICE HOLE, NO.2

main67848-37010×2iXZU282201203

67881PLATE, BACK DOOR WEATHERSTRIP SET

main67889-37010iXZU282201203

main67889-37020iXZU282201203

67881AWEATHERSTRIP, BACK DOOR

main67881-37011iXZU282201203

67884AWEATHERSTRIP, BACK DOOR, CENTER

main67884-37011×2iXZU282201203

68132DGLASS, BACK DOOR, LH

main68132-37041iXZU282201203

68294ADAM, BACK DOOR GLASS ADHESIVE

main68294-13040iXZU282201203-201206

9011906535

main90119-06535

9033330004

main90333-30004

9046705014B2

main90467-05014B2

9046711030

main90467-11030

91611B0616

main91611-B0616

9326016016

main93260-16016

9354014008

main93540-14008

24 parts on this diagram · 1 diagram in section
