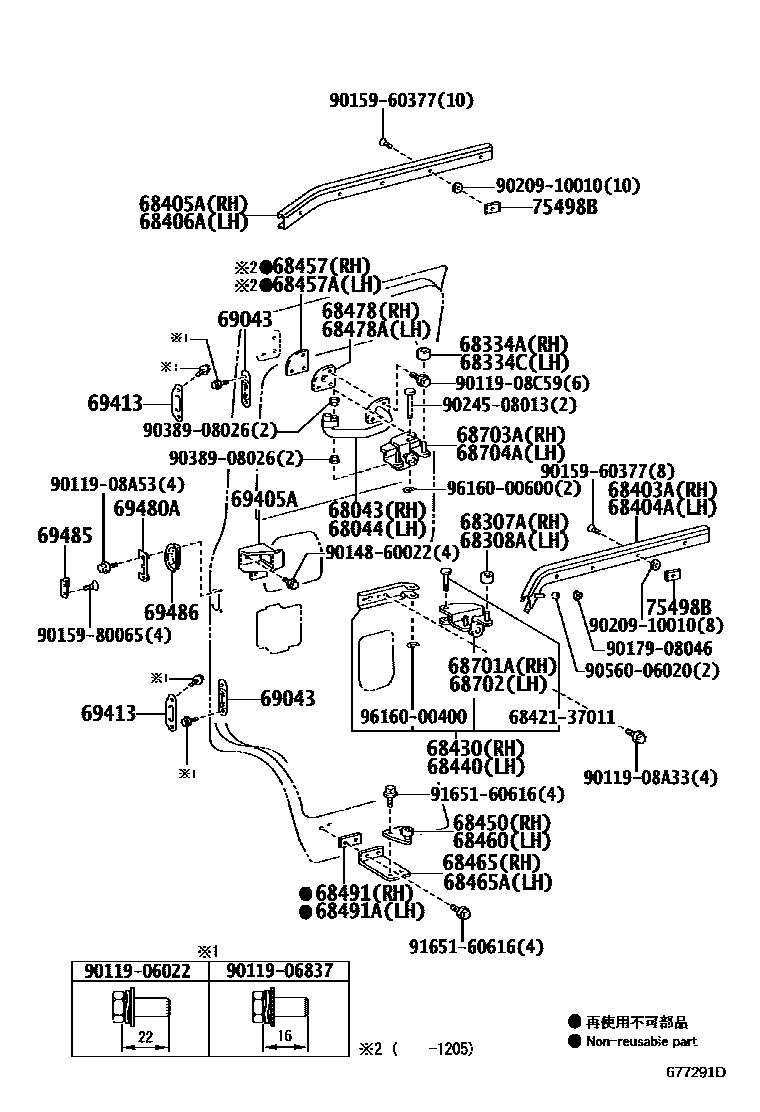

SLIDE ROLLER & RAIL
68043ARM SUB-ASSY, FRONT SLIDE DOOR UPPER ROLLER, RH
68044ARM SUB-ASSY, FRONT SLIDE DOOR UPPER ROLLER, LH
68307AROLLER SUB-ASSY, SLIDE DOOR
68308AROLLER SUB-ASSY, SLIDE DOOR
68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE
68334CROLLER, SLIDE DOOR CENTER GUIDE
68403ARAIL SUB-ASSY, FRONT SLIDE DOOR, CENTER RH
68404ARAIL SUB-ASSY, FRONT SLIDE DOOR, CENTER LH
68405ARAIL SUB-ASSY, FRONT SLIDE DOOR, UPPER RH
68406ARAIL SUB-ASSY, FRONT SLIDE DOOR, UPPER LH
68430ROLLER ASSY, FRONT SLIDE DOOR, CENTER RH
68440ROLLER ASSY, FRONT SLIDE DOOR, CENTER LH
68450ROLLER ASSY, FRONT SLIDE DOOR, LOWER RH
68457BASE, FRONT SLIDE DOOR CUSHION
68457ABASE, FRONT SLIDE DOOR CUSHION
68460ROLLER ASSY, FRONT SLIDE DOOR, LOWER LH
68465BRACKET, FRONT SLIDE DOOR LOWER ROLLER
68465ABRACKET, FRONT SLIDE DOOR LOWER ROLLER, LH
68478PLATE, FRONT SLIDE DOOR ARM STOPPER
68478APLATE, FRONT SLIDE DOOR ARM STOPPER
68491PACKING, FRONT SLIDE DOOR LOWER ROLLER
68491APACKING, FRONT SLIDE DOOR LOWER ROLLER
68701AHINGE SUB-ASSY, FRONT SLIDE DOOR, CENTER RH
68702HINGE SUB-ASSY, FRONT SLIDE DOOR, CENTER LH
68703AHINGE SUB-ASSY, FRONT SLIDE DOOR, UPPER RH
68704AHINGE SUB-ASSY, FRONT SLIDE DOOR, UPPER LH
69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
69413STOP, SLIDE DOOR DOWN MALE
69480AHOOK ASSY, SLIDE DOOR FRONT LOCK
69485BRACKET, SLIDE DOOR FRONT LOCK STRIKER
69486COVER, SLIDE DOOR FRONT LOCK STRIKER
75498BSEAL, OUTSIDE MOULDING, NO.2
6842137011RING, NO.1(FOR WINDOW GLASS FRONT STOP)
main68421-37011
9011906022
main90119-06022
9011906837
main90119-06837
9011908A33
main90119-08A33
9011908A53
main90119-08A53
9011908C59
main90119-08C59
9014860022
main90148-60022
9015960377
main90159-60377
9015980065
main90159-80065
9017908046
main90179-08046
9020910010
main90209-10010
9024508013
main90245-08013
9038908026
main90389-08026
9056006020
main90560-06020
9165160616
main91651-60616
9616000400
main96160-00400
9616000600
main96160-00600
50 parts on this diagram · 1 diagram in section
