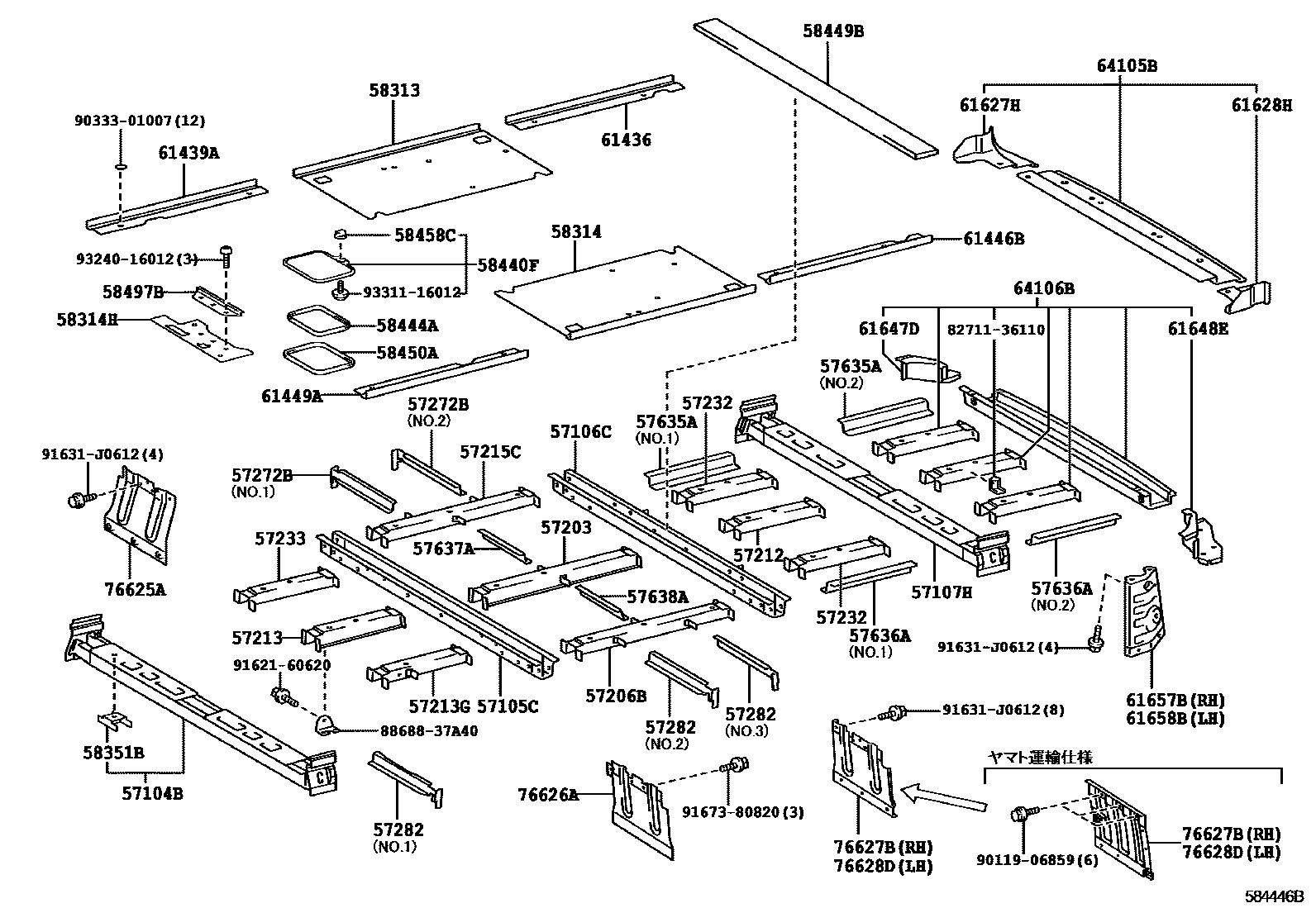

REAR FLOOR PANEL & REAR FLOOR MEMBER
57104BCROSSMEMBER SUB-ASSY, FLOOR, NO.4
57105CCROSSMEMBER SUB-ASSY, FLOOR, NO.5
57106CCROSSMEMBER SUB-ASSY, FLOOR, NO.6
57107HCROSSMEMBER SUB-ASSY, FLOOR, NO.7
57203STRENGTH SUB-ASSY, ANCHOR NO.3
57206BSTRENGTH SUB-ASSY, ANCHOR
57212STRENGTH, ANCHOR, NO.2
57213STRENGTH, ANCHOR, NO.3
57213GSTRENGTH, ANCHOR, NO.3
57215CSTRENGTH, ANCHOR, NO.5
57232STRENGTH, ANCHOR SIDE, NO.2
57233STRENGTH, ANCHOR SIDE, NO.3
57272BSTRENGTH, REAR FLOOR HOUSING, SIDE, RH
57282STRENGTH, REAR FLOOR HOUSING, SIDE, LH
57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH
57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH
57637AREINFORCEMENT, REAR FLOOR SIDE, RH
57638AREINFORCEMENT, REAR FLOOR SIDE, LH
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58314HPANEL, REAR FLOOR, LH
58351BREINFORCEMENT, REAR FLOOR PANEL, RH
58440FCOVER ASSY, BATTERY SERVICE HOLE
BLUISH GRAY,TRIM1#
58444APACKING, BATTERY SERVICE HOLE COVER
58449BPACKING, BATTERY SERVICE HOLE COVER
58450APACKING, BATTERY SERVICE HOLE COVER
58458CKNOB, BATTERY SERVICE HOLE COVER
58497BPLATE, BATTERY SERVICE HOLE COVER LOCK
BLUISH GRAY,TRIM1#
61436RAIL, NO.6 LOWER INNER, RH
61439ARAIL, NO.5 LOWER INNER, RH
61446BRAIL, NO.6 LOWER INNER, LH
61449ARAIL, NO.5 LWR INNER, LH
61627HEXTENSION, QUARTER PANEL, REAR LOWER RH
61628HEXTENSION, QUARTER PANEL, REAR LWR LH
61647DREINFORCEMENT, QUARTER PANEL, LOWER RH
61648EREINFORCEMENT, QUARTER PANEL, LOWER LH
61657BHOUSING, QUARTER PANEL END, LOWER RH
61658BHOUSING, QUARTER PANEL END, LOWER LH
64105BRAIL SUB-ASSY, LOWER BACK, OUTER
64106BRAIL SUB-ASSY, LOWER BACK, INNER
76625AMUDGUARD, REAR BODY, RH
76626AMUDGUARD, REAR BODY, LH
8271136110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-36110
8868837A40BRACKET, COOLER DIAPHRAGM
main88688-37A40
9011906859
main90119-06859
9033301007
main90333-01007
9162160620
main91621-60620
91631J0612
main91631-J0612
9167380820
main91673-80820
9324016012
main93240-16012
9331116012
main93311-16012
53 parts on this diagram · 1 diagram in section
