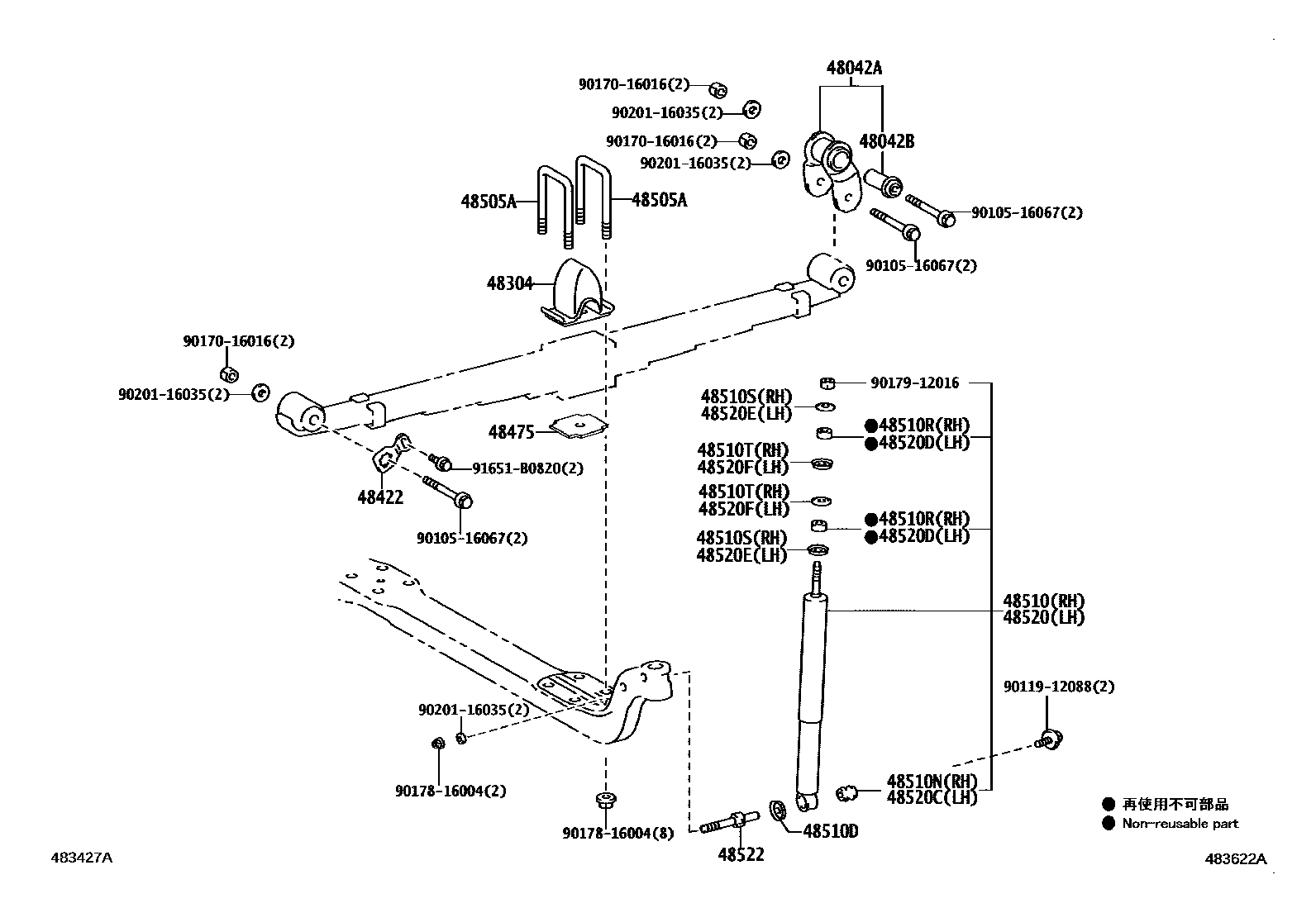

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 12-LEAF

48042ASHACKLE SUB-ASSY, FRONT SPRING, NO.2

main48042-37030iXZU282201203

48042BBUSH, FRONT SPRING NO.2 SHACKLE

main90389-16025iXZU282201203

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-36150iXZU282201203

48422SUPPORT, FRONT SPRING PIN

main48422-37010iXZU282201203

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iXZU282201203

48505ABOLT, U(FOR FRONT SPRING)

main90117-16071iXZU282201203

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-80113iXZU282201203

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03011iXZU282201203

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90385-19006iXZU282201203

48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH

main90948-01004iXZU282201203

48510SRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH

main90948-02009iXZU282201203

48510TRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH

main90948-02054iXZU282201203

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-80113iXZU282201203

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90385-19006iXZU282201203

48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH

main90948-01004iXZU282201203

48520ERETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH

main90948-02009iXZU282201203

48520FRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH

main90948-02054iXZU282201203

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-37030iXZU282201203

9010516067

main90105-16067

9011912088

main90119-12088

9017016016

main90170-16016

9017816004

main90178-16004

9017912016

main90179-12016

9020116035

main90201-16035

91651B0820

main91651-B0820

25 parts on this diagram · 2 diagrams in section
