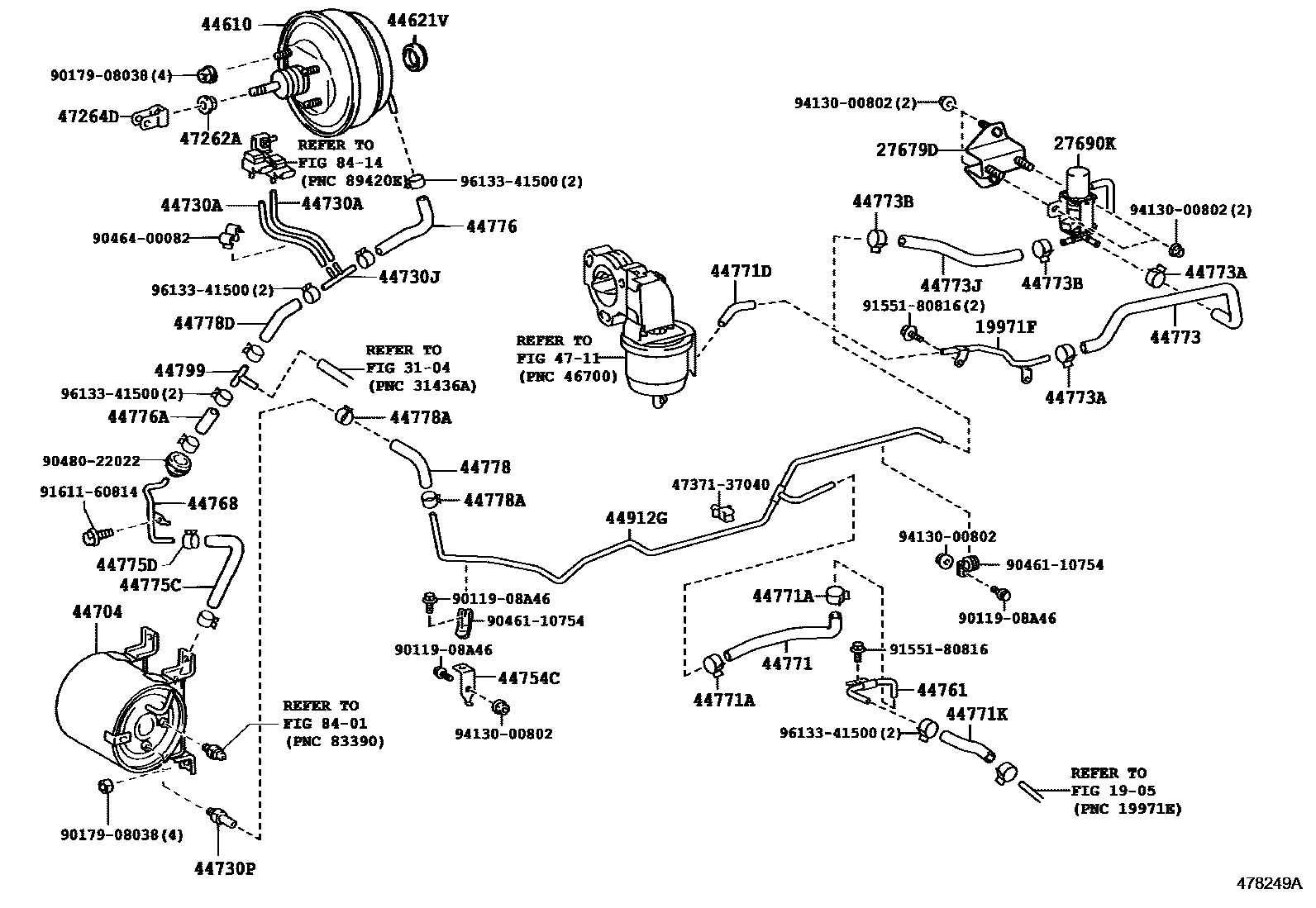

BRAKE BOOSTER & VACUUM TUBE
1905
19971FPIPE, VACUUM
sub19971-78281
27679DBRACKET, EXHAUST BRAKE SOLENOID
27690KSOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
3104
44610BOOSTER ASSY, BRAKE
44621VSEAL, BOOSTER BODY
44704RESERVOIR SUB-ASSY, VACUUM
44730AHOSE, VACUUM, NO.1
44730JWAY(FOR BOOSTER VACUUM)
44730PVALVE ASSY, VACUUM CHECK, NO.1
44754CBRACKET, VACUUM TUBE, NO.1
44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44768TUBE, BOOSTER VACUUM
44771HOSE, VACUUM TUBE CONNECTOR
44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)
44771DHOSE, VACUUM TUBE CONNECTOR
sub44771-37A61
44771KHOSE, VACUUM TUBE TO VACUUM PUMP
44773HOSE, VACUUM, NO.2
44773ACLIP, NO.1(FOR VACUUM HOSE, NO.2)
44773BCLIP, NO.2(FOR VACUUM HOSE, NO.2)
44773JHOSE, VACUUM, NO.3
44775CHOSE, CONNECTOR TO WAY
44775DCLAMP(FOR CONNECTOR TO WAY HOSE)
44776HOSE, BRAKE BOOSTER
44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44778HOSE, CONNECTOR TO CHECK VALVE
44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
44778DHOSE, VACUUM TUBE TO CONNECTOR TUBE
44799WAY, BRAKE VACUUM HOSE
44912GTUBE, 3 WAY TO MAGNETIC VALVE
4711
47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
8401
8414
4737137040BRACKET, CONNECTOR
main47371-37040
9011908A46
main90119-08A46
9017908038
main90179-08038
9046110754
main90461-10754
9046400082
main90464-00082
9048022022
main90480-22022
9155180816
main91551-80816
9161160814
main91611-60814
9413000802
main94130-00802
9613341500
main96133-41500
46 parts on this diagram · 1 diagram in section
