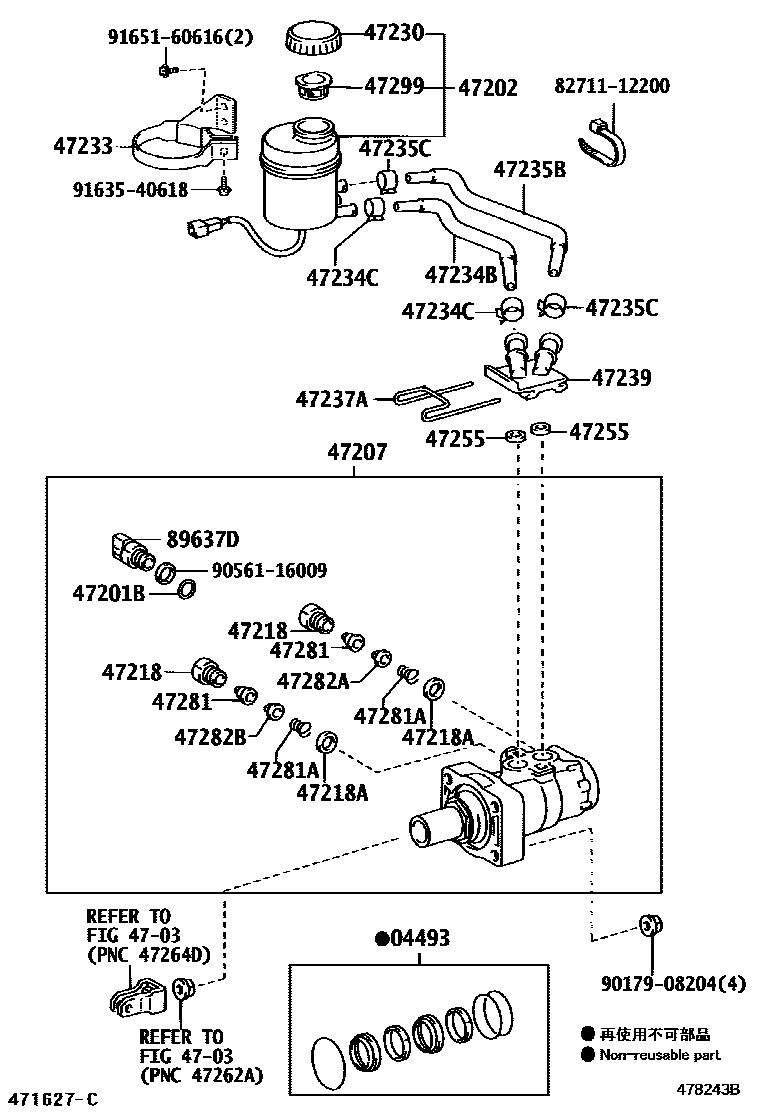

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-36230iXZU282201203

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90301-15014iXZU282201203

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-36080iXZU282201203-201212

sub47220-36120

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-37060iXZU282201203-201212

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36091iXZU282201203

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-16013iXZU282201203

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010iXZU282201203

sub47230-47090

47233BRACKET, RESERVOIR

main47233-37030iXZU282201203

47234BTUBE, RESERVOIR, NO.1

main47234-37110iXZU282201203

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96133-41500iXZU282201203

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37100iXZU282201203

47235CCLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)

main96133-41500iXZU282201203

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-36020iXZU282201203

47239CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR

main47239-36020iXZU282201203

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iXZU282201203

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-36010iXZU282201203

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90905-01054iXZU282201203

47282ASEAT, OUTLET CHECK VALVE, NO.1

main47282-36010iXZU282201203

47282BSEAT, OUTLET CHECK VALVE, NO.2

main47282-36020iXZU282201203

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iXZU282201203

89637DSENSOR, OIL PRESSURE

main89637-51010iXZU282201203-201212

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017908204

main90179-08204

9056116009

main90561-16009

9163540618

main91635-40618

9165160616

main91651-60616

27 parts on this diagram · 1 diagram in section
