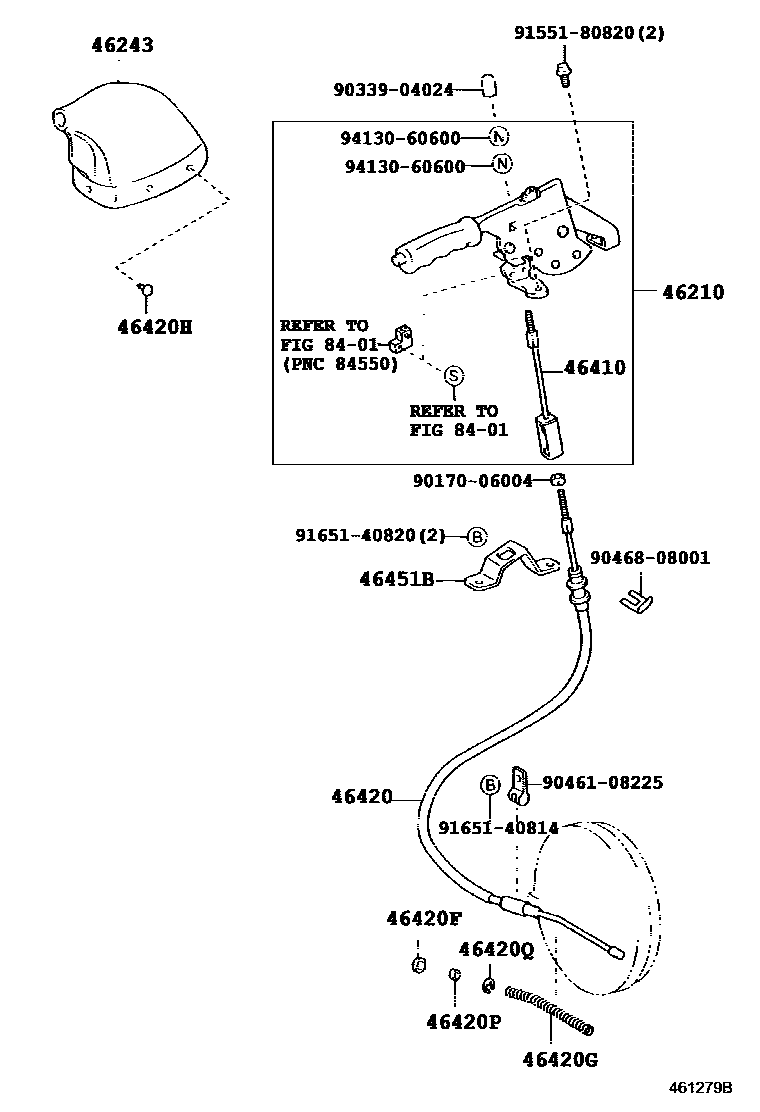

PARKING BRAKE & CABLE
46210LEVER ASSY, PARKING BRAKE
BLUISH GRAY,TRIM1#
46243COVER, PARKING BRAKE LEVER
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
46420FSEAL, DUST(FOR PARKING BRAKE CABLE)
46420GSPRING(FOR PARKING CABLE INNER WIRE SET)
46420HCLIP, NO.2(FOR PARKING BRAKE)
46420PSPACER, PARKING BRAKE
46420QRING, E(FOR PARKING BRAKE CABLE)
46451BBRACKET, PARKING BRAKE CABLE SUPPORT
8401
9017006004
main90170-06004
9033904024
main90339-04024
9046108225
main90461-08225
9046808001
main90468-08001
9155180820
main91551-80820
9165140814
main91651-40814
9165140820
main91651-40820
9413060600
main94130-60600
19 parts on this diagram · 2 diagrams in section
