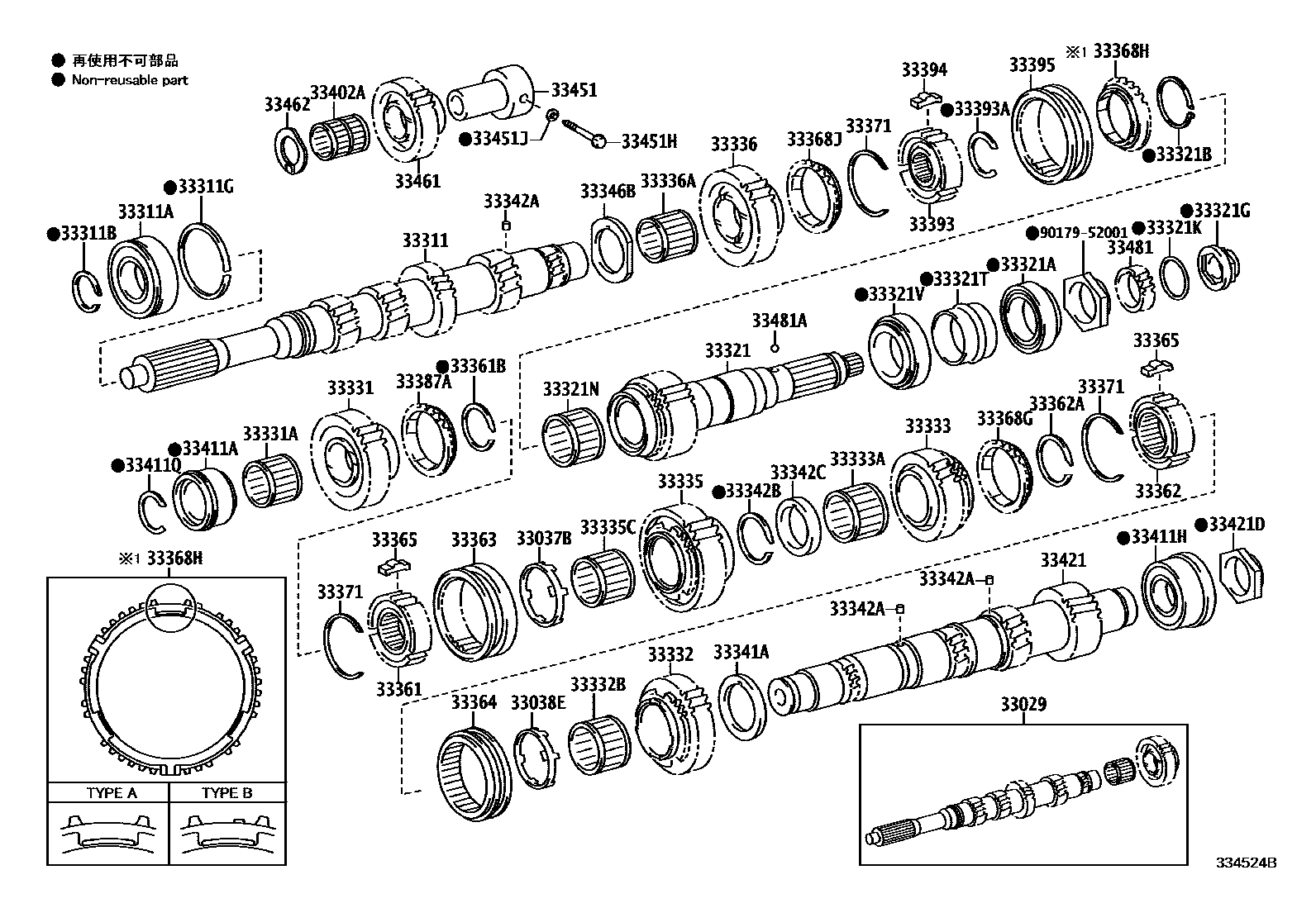

TRANSMISSION GEAR (MTM)
33029SHAFT SET, INPUT
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
sub33302-36010
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321KRING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321TSPACER (FOR OUTPUT SHAFT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33341AWASHER, 2ND GEAR THRUST
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
33342CWASHER, 3RD GEAR THRUST
33346BWASHER, 5TH GEAR THRUST
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33363SLEEVE, TRANSMISSION HUB, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33368GRING, SYNCHRONIZER (FOR 3RD GEAR)
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
sub33396-36010
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33387ARING, REVERSE SYNCHRONIZER
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33394KEY, SYNCHROMESH SHIFTING, NO.3
sub33394-36030
33395SLEEVE, TRANSMISSION HUB, NO.3
sub33395-36050
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33421GEAR, COUNTER
33421DNUT(FOR COUNTER GEAR REAR)
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33461GEAR, REVERSE IDLER
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
9017952001
main90179-52001
60 parts on this diagram · 1 diagram in section
