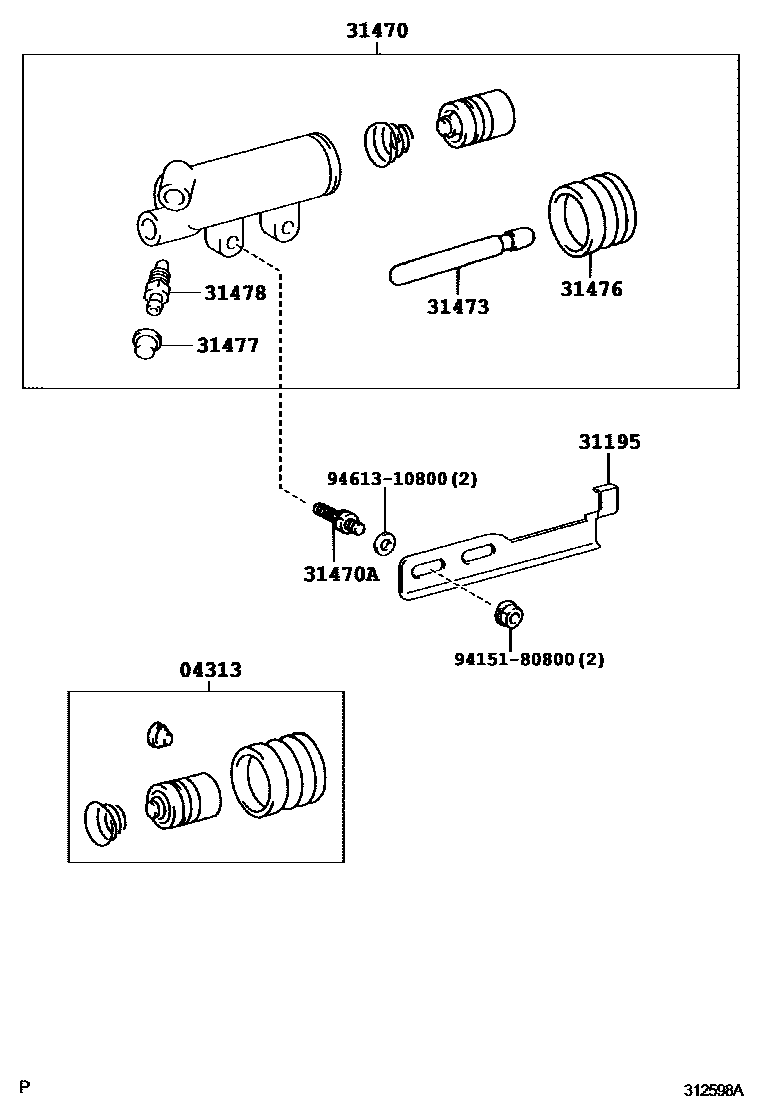

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iXZU282201203

31195PLATE, CLUTCH DISC WEAR INDICATOR

main31195-37110iXZU282201203

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-37080iXZU282201203-201212

sub31470-37081

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iXZU282201203

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-37050iXZU282201203

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXZU282201203

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iXZU282201203

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iXZU282201203

9415180800

main94151-80800

9461310800

main94613-10800

10 parts on this diagram · 1 diagram in section
