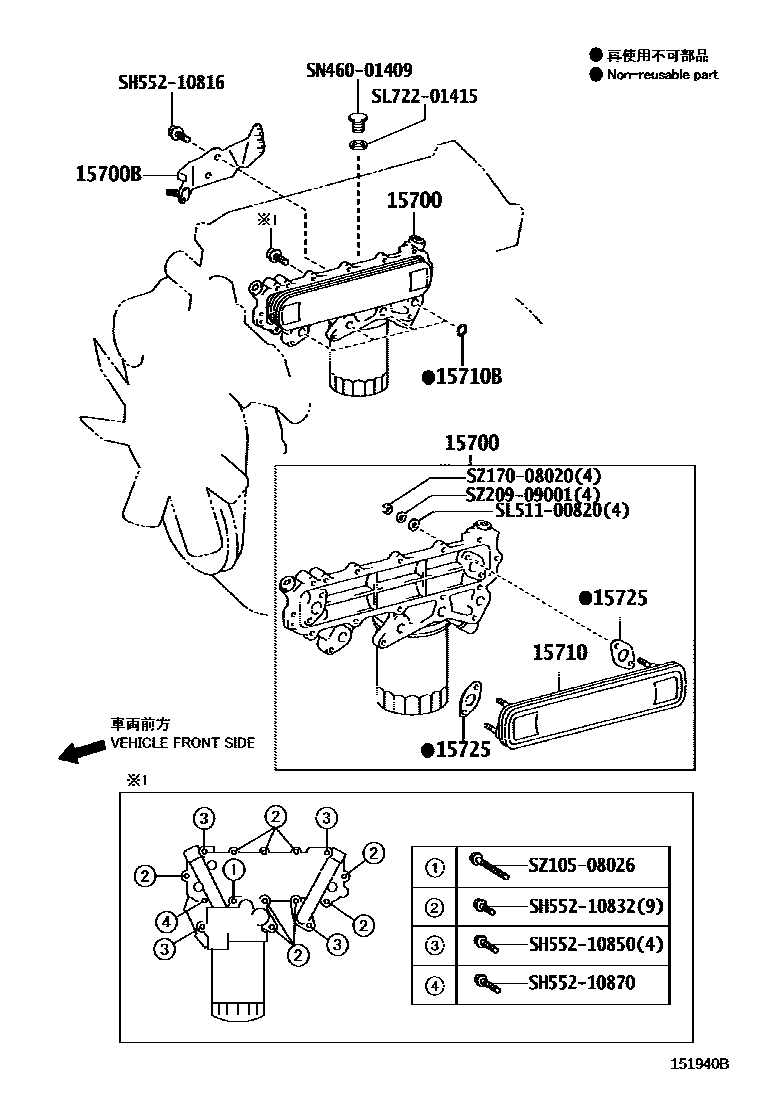

ENGINE OIL COOLER

15700COOLER ASSY, OIL W/BRACKET

main15700-E0013iN04C..XZU282201203

sub15700-E0014

15700BBRACKET(FOR OIL COOLER)

main16269-78030iN04C..XZU282201203

15710COOLER ASSY, OIL

mainS157122250iN04C..XZU282201203

sub16491-EV040

15710BRING, O(FOR OIL COOLER)

mainSZ30119015iN04C..XZU282201203

15725GASKET, OIL COOLER COVER

mainS157171270iN04C..XZU282201203-201212

sub15785-EV010

SH55210816

mainSH552-10816

SH55210832

mainSH552-10832

SH55210850

mainSH552-10850

SH55210870

mainSH552-10870

SL51100820

mainSL511-00820

SL72201415

mainSL722-01415

SN46001409

mainSN460-01409

SZ10508026

mainSZ105-08026

SZ17008020

mainSZ170-08020

SZ20909001

mainSZ209-09001

15 parts on this diagram · 1 diagram in section
