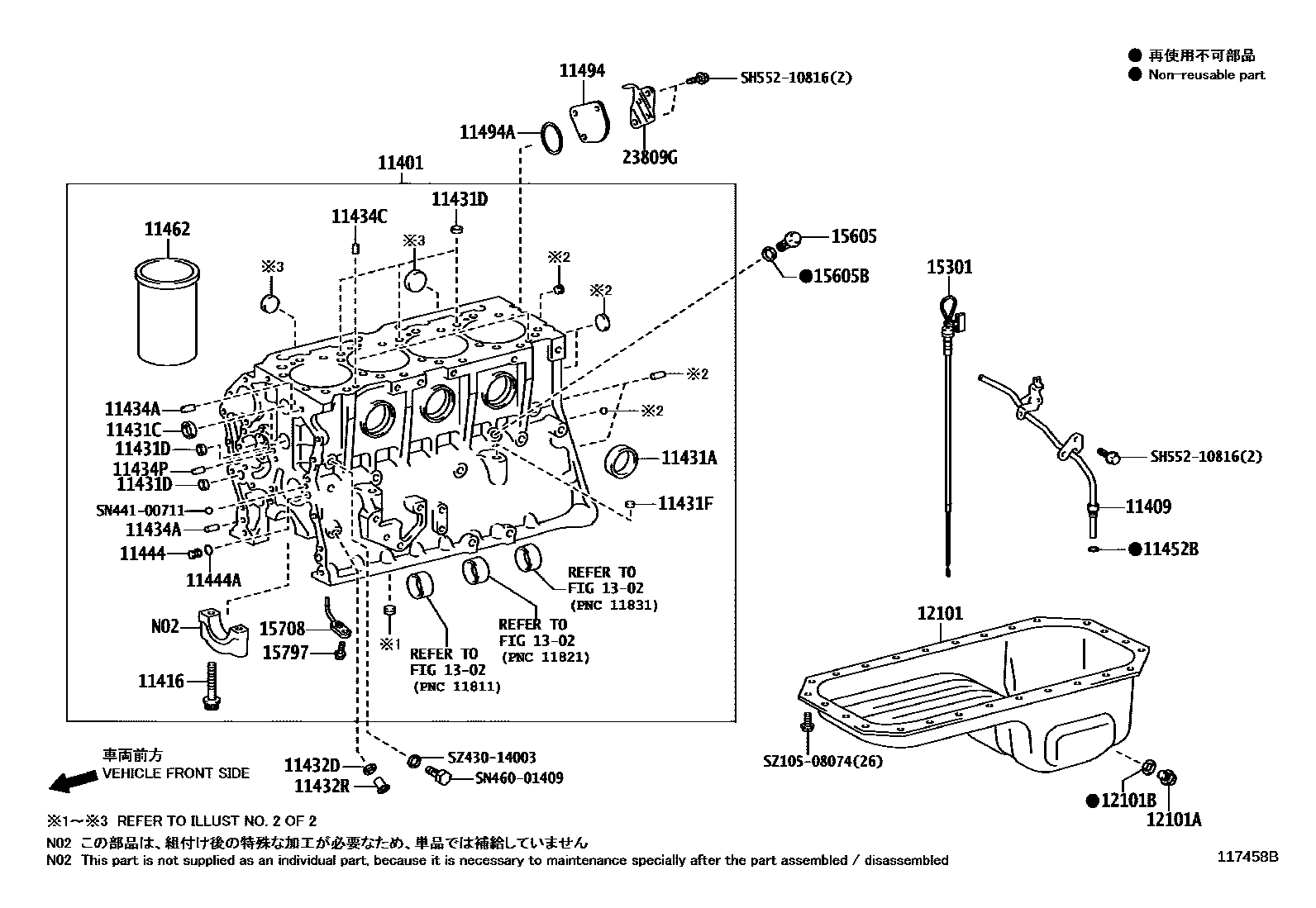

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
sub11410-E0E42
11409GUIDE SUB-ASSY, OIL LEVEL GAGE
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
11432DGASKET, W/HEAD TAPER SCREW PLUG
subSL723-01010
11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11434PPIN, STRAIGHT(FOR OIL PUMP SET)
11444PLUG, HOLE
11444ARING, O
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11494PLATE, OIL HOLE COVER
11494ARING, O(FOR OIL HOLE COVER)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
1302
15301GAGE SUB-ASSY, OIL LEVEL
15605VALVE SUB-ASSY, OIL CHECK
sub15602-E0010
15605BGASKET(FOR OIL CHECK VALVE)
15708NOZZLE SUB-ASSY, OIL, NO.1
15797BOLT, OIL NOZZLE UNION
23809GSUPPORT SUB-ASSY, FUEL PIPE
SH55210816
mainSH552-10816
SN44100711
mainSN441-00711
SN46001409
mainSN460-01409
SZ10508074
mainSZ105-08074
SZ43014003WASHER, SOFT, NO.1
mainSZ430-14003
33 parts on this diagram · 2 diagrams in section
