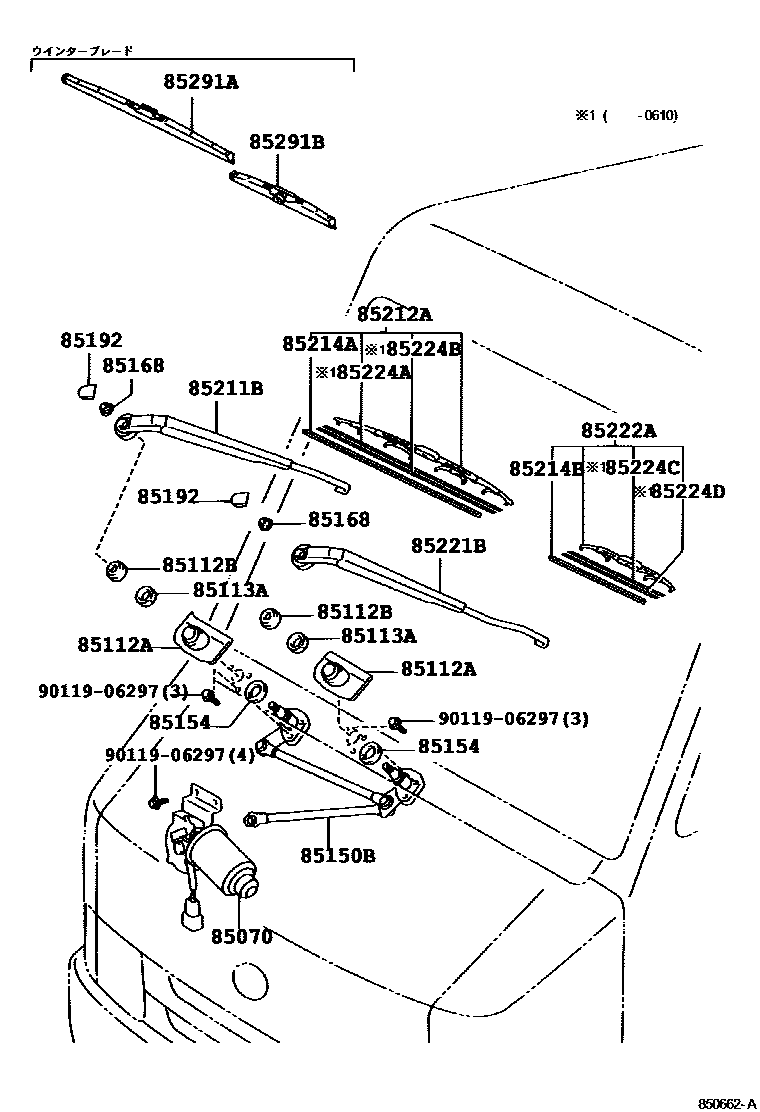

WINDSHIELD WIPER

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-37160iBU28#..DSL199908-200610

main85070-37170iXKU280200001-200610

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-37010iBU280..LPG199908-200610

main85112-37020iXKU280199908-200610

85112BCOVER, WINDSHIELD WIPER SHAFT, NO.2

main85112-37030iXKU280199908-200610

85113ANUT, FR WIPER

main85113-37010iBU280..LPG199908-200610

85150BLINK ASSY, WIPER

main85150-37120iBU280..LPG199908-200610

85154PACKING, FRONT WIPER SHAFT

main85154-37040iBU280..LPG199908-200610

85168NUT, WINDSHIELD WIPER LINK PIVOT

main90178-10001iBU280..LPG199908-200610

85192COVER, WINDSHIELD WIPER ARM

main85292-37020iLY228,270199908-200610

85211BARM, FRONT WIPER, RH

main85211-37120iRZU280..D;BU28#..DSL199908-200610

85212ABLADE, FR WIPER, RH

main85212-37100iBU280..LPG199908-200610

85214ARUBBER, WIPER, RH

main85214-44130iBU280..LPG199908-200501

sub85214-44140

main85214-44140iRZU280,XZU28#200502-200610

85214BRUBBER, WIPER, LH

main85214-44080iBU28#,LY228,270,RZU280,XZU28#199908-200501

main85214-68010iRZU280,XZU28#200502-200607

sub85214-68011

main85214-68011iRZU280,XZU28#200608-200610

85221BARM, FRONT WIPER, LH

main85221-37180iRZU280..D;BU28#..DSL199908-200610

85222ABLADE, FR WIPER, LH

main85222-37161iRZU280,XZU28#200608-200610

main85222-44050iBU28#,LY228,270,RZU280,XZU28#199908-200607

sub85222-44051

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44060iBU28#,LY228,270,RZU280,XZU28#199908-200610

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44060iBU28#,LY228,270,RZU280,XZU28#199908-200610

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-44031iBU28#,LY228,270,RZU280,XZU28#199908-200610

sub85224-44070

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-44031iBU28#,LY228,270,RZU280,XZU28#199908-200610

sub85224-44070

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-44070iRZU280..D;BU28#..DSL199908-200610

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-44010iBU280..LPG199908-200610

9011906297

main90119-06297

21 parts on this diagram · 1 diagram in section
