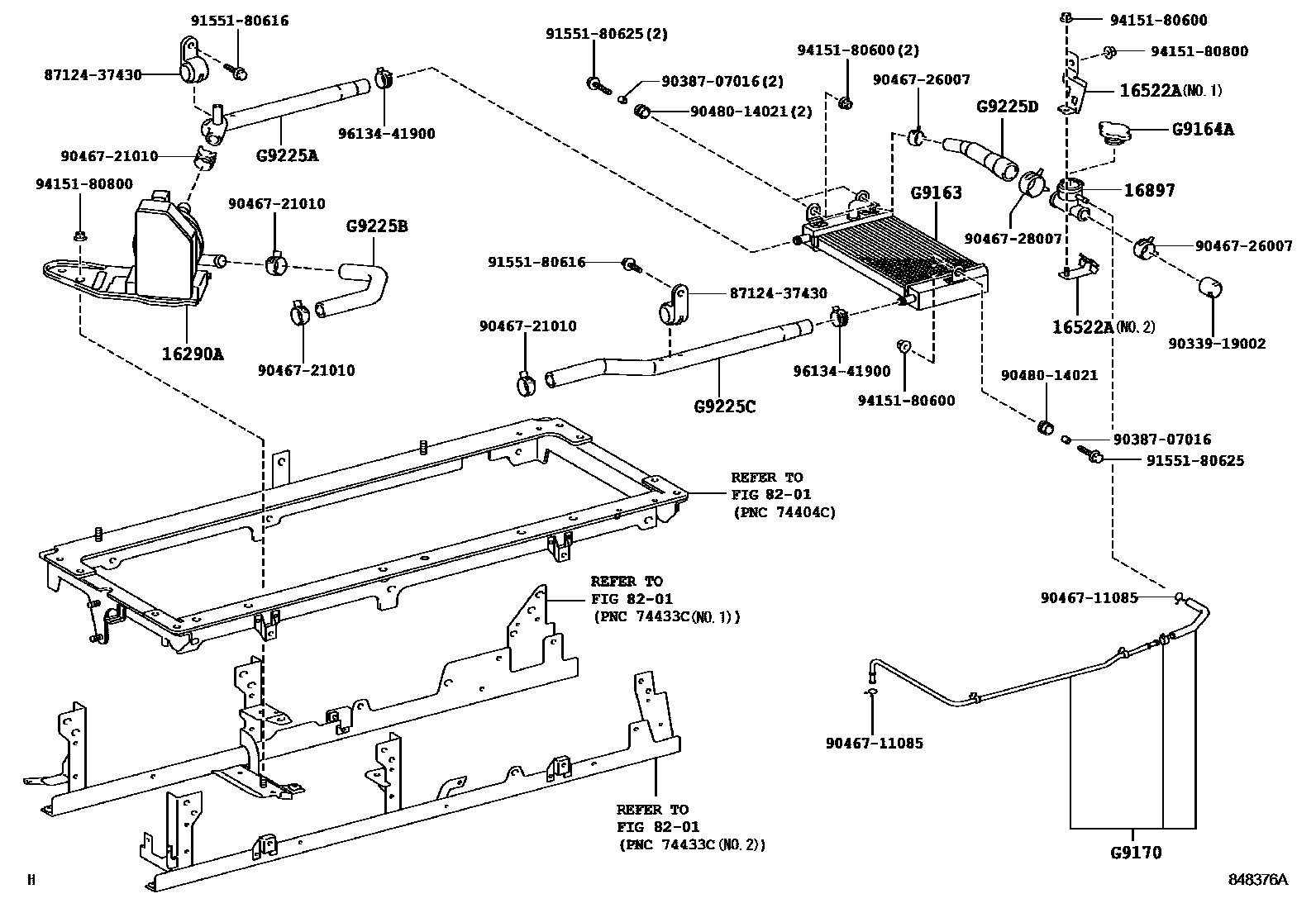

INVERTER COOLING

16290APUMP ASSY, WATER W/MOTOR & BRACKET

mainG902047021iN04C..XKU280200610-200707

subG9020-47022

mainG902047022iN04C..XKU280200708

16522ABRACKET, WATER FILLER

main16522-89201iN04C..XKU280200610

main16522-89202iN04C..XKU280200610

16897NECK, FILLER

main16897-89201iN04C..XKU280200610

8201

G9163RADIATOR, INVERTER

mainG916389201iXKU280200610

G9164ACAP, INVERTER RADIATOR

mainG916489101iXKU280200610

G9170PIPE ASSY, INVERTER COOLING NO.1

mainG917089201iXKU280200610

G9225AHOSE, INVERTER COOLING, NO.7

mainG922589201iXKU280200610

G9225BHOSE, INVERTER COOLING, NO.8

mainG922689201iXKU280200610

G9225CHOSE, INVERTER COOLING, NO.9

mainG922789201iXKU280200610

G9225DHOSE, INVERTER COOLING, NO.10

mainG922889201iXKU280200610

8712437430CLAMP, HEATER

main87124-37430

9033919002

main90339-19002

9038707016

main90387-07016

9046711085

main90467-11085

9046721010

main90467-21010

9046726007

main90467-26007

9046728007

main90467-28007

9048014021

main90480-14021

9155180616

main91551-80616

9155180625

main91551-80625

9415180600

main94151-80600

9415180800

main94151-80800

9613441900

main96134-41900

24 parts on this diagram · 1 diagram in section
