SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1����� & ��������� 0005 1����� & ��������� 0006 1������-� 0007 1��� 0008 1��� 0009 1��� 0010 1��� 0011 1������������ 0012 1������������ 0013 1������������ 0014 1�������� ���� & ��������� ���0015 1���,�-� & ��� 0016 1���,��� & ��� 0017 1���,��� & ���

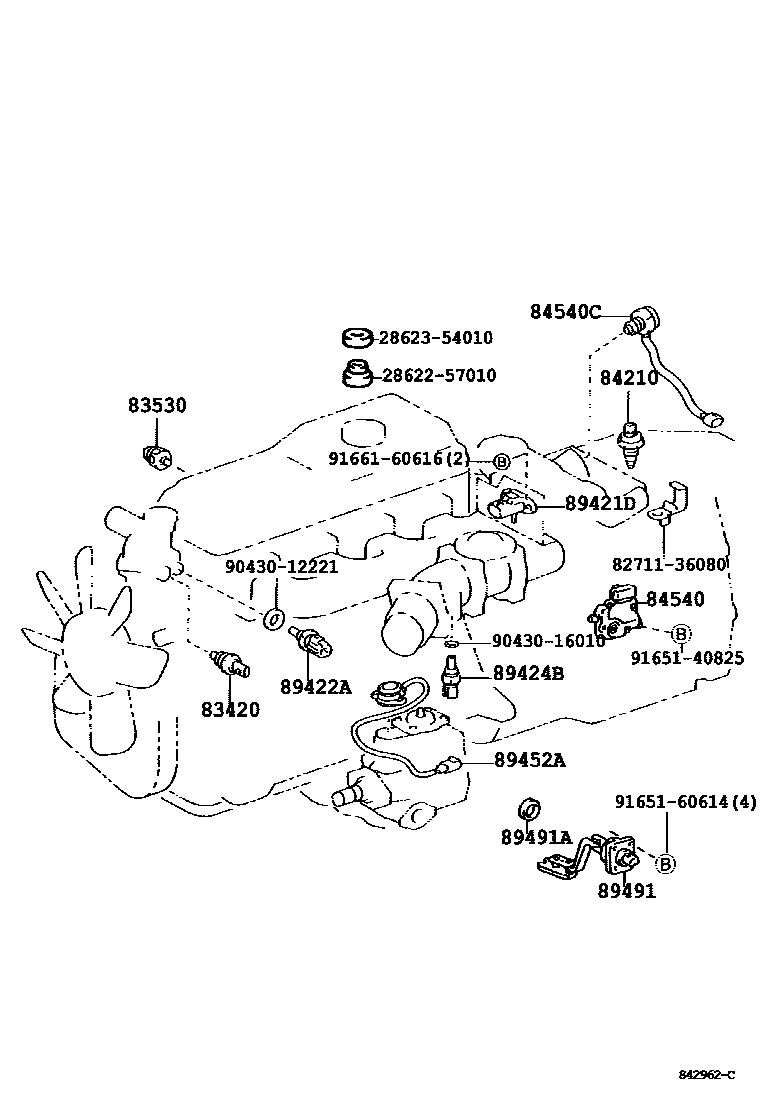

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iBU28#..DSL199908-200407

main83420-20040iBU280..LPG200001-200610

main83420-37020iXKU280200406-200610

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iBU28#..DSL199908-200406

main83530-28020iRZU280..D200001-200610

main83530-37040iXKU280200406-200610

main83530-60010iBU28#..DSL199908-200406

main83530-60030iLY228,270200108-200407

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iBU28#,LY228,270,RZU280,XZU28#..MTM199908-200610

sub84210-52050

main84210-37020iXKU280200610-201109

84540SWITCH ASSY, NEUTRAL START

main84540-25010iLY228..ATM200108-200407

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36090iBU28#..DSL199908-200610

main84540-37040iXKU280200610-201109

sub84540-37060

89421DSENSOR, TURBO PRESSURE

main89421-21010iBU28#..DSL199908-200405

89422ASENSOR, WATER TEMPERATURE

main89422-20010iLY228,270200108-200407

main89422-35010iBU28#..DSL199908-200405

89424BSWITCH, INLET AIR TEMPERATURE

main89424-60010iBU28#..DSL199908-200405

89452ASENSOR, THROTTLE POSITION

main89452-10020iBU28#..DSL199908-200203

89491SENSOR, ENGINE OIL LEVEL

main89491-26160iLY228,270200108-200407

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iLY228,270200108-200407

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271136080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36080

9043012221

main90430-12221

9043016010

main90430-16010

9165140825

main91651-40825

9165160614

main91651-60614

9166160616

main91661-60616

19 parts on this diagram · 17 diagrams in section
