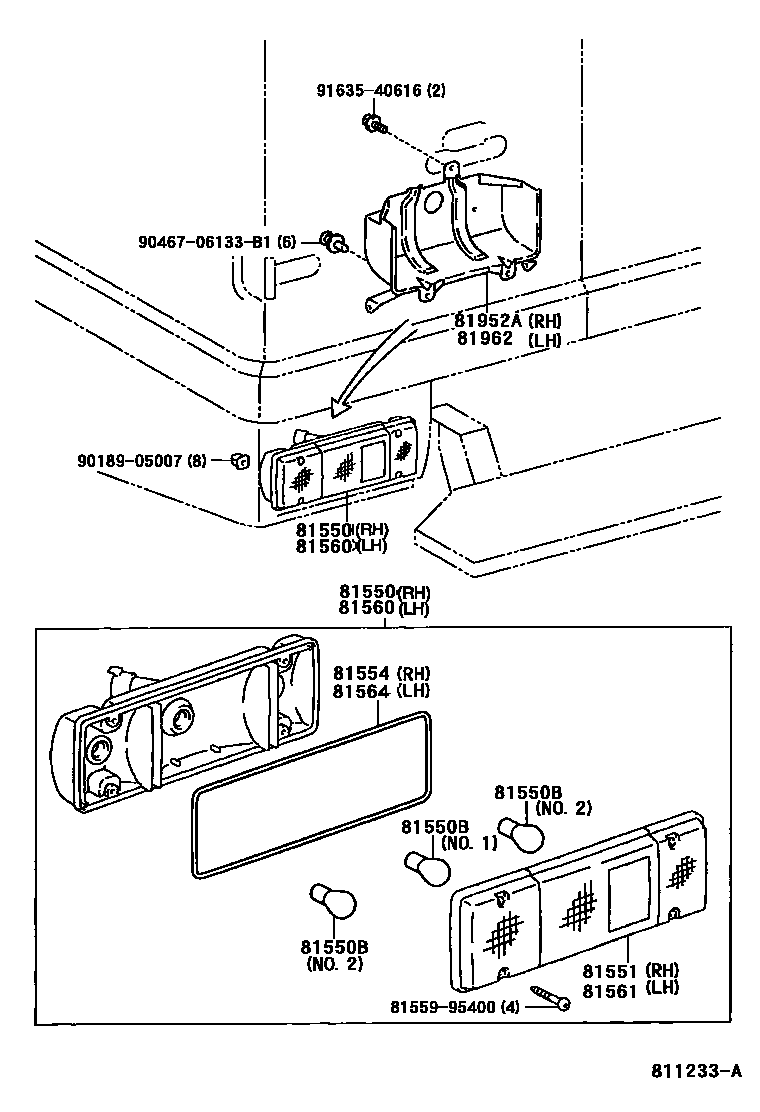

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-25120iBU28#..DSL199908-200203

sub81559-95400

main81550-25121iBU28#,XZU28#..DCR,DSL200203-200509

main81550-37150iLY228,270;BU280,RZU280,XZU281..LPG200203-200509

main81550-37160iXZU28#..DCR200509-200610

main81550-37250iRZU280,XZU281..LPG200509-200610

main81550-90D02iLY228,270;BU280..LPG200001-200203

sub81559-95400

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014×4iXZU28#..DCR200509-200610

main90981-16015×2iXZU28#..DCR200509-200610

main90981-16027×2iBU28#,XZU28#..DCR,DSL200203-200509

main99132-11210×4iRZU280200306-200610

main99132-21210×2iXKU280200610

main99134-11250×4iBU28#..DSL199908-200203

81551LENS, REAR COMBINATION LAMP, RH

main81551-60442iXKU280200610

main81551-60451iBU28#,LY228,270,RZU280,XZU28#199908-200509

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-95400iBU28#,LY228,270,RZU280,XZU28#199908-200610

81560LAMP ASSY, REAR COMBINATION, LH

main81560-25110iBU28#..DSL199908-200203

sub81559-95400

main81560-25111iBU28#,XZU28#..DCR,DSL200203-200509

main81560-37160iLY228,270;BU280,RZU280,XZU281..LPG200203-200509

main81560-37250iXZU28#..DCR200509-200610

main81560-37260iRZU280,XZU281..LPG200509-200610

main81560-90D02iLY228,270;BU280..LPG200001-200203

sub81559-95400

81561LENS, REAR COMBINATION LAMP, LH

main81561-60372iRZU280,XZU28#200509-200610

main81561-60381iBU28#,LY228,270,RZU280,XZU28#199908-200509

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-95400iXKU280200610

81952ACOVER, REAR LAMP, RH

main81952-37030iBU28#,LY228,270,RZU280,XZU28#199908-200610

81962COVER, REAR LAMP, LH

main81962-37020iBU28#,LY228,270,RZU280,XZU28#199908-200610

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

9018905007

main90189-05007

9046706133B1

main90467-06133B1

9163540616

main91635-40616

13 parts on this diagram · 2 diagrams in section
