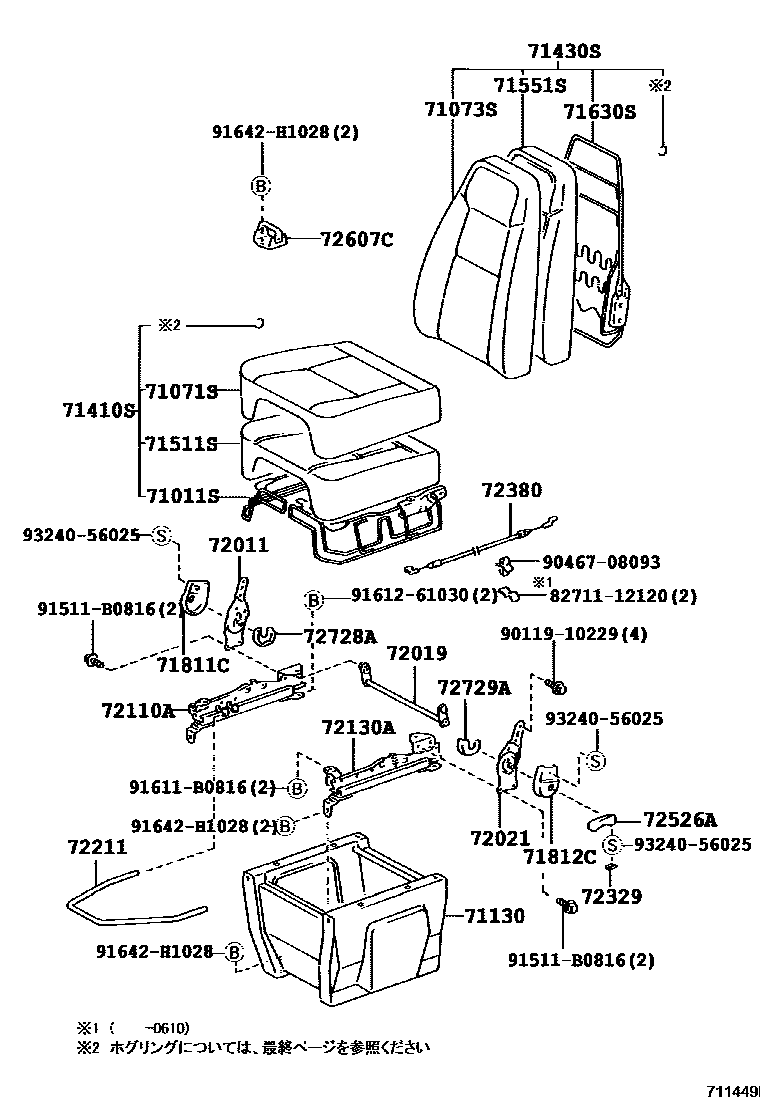

SEAT & SEAT TRACK

0001 1 0002 1 0003 1�������

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71610-37040iBU280..LPG199908-200610

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37560-B0iBU28#,LY228,270,RZU280,XZU28#199908-201109

BLUISH GRAY,TRIM1#

sub71071-37561

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-37700-B0iBU28#,LY228,270,RZU280,XZU28#199908-201109

BLUISH GRAY,TRIM1#

sub71073-37701

71130LEG ASSY, FRONT SEAT, RH

main71130-37010-B0iBU28#,LY228,270,RZU280,XZU28#199908-200610

BLUISH GRAY,TRIM1#

main71130-37011-B0iXKU280200610-201109

BLUISH GRAY,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-37760-B0iBU28#,LY228,270,RZU280199908-200308

***,BLUISH GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-37140-B0iBU28#,LY228,270,RZU280199908-200308

***,BLUISH GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-37090iBU280..LPG199908-200610

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-37180iBU280..LPG199908-200610

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-37100iBU280..LPG199908-200610

71811CCOVER, RECLINING ADJUSTER, RH

main71834-60100-B0iBU28#,LY228,270,RZU280,XZU28#199908-201109

MD.GRAY,TRIM1#

sub71834-60100

71812CCOVER, RECLINING ADJUSTER, LH

main71834-60090-B0iBU28#,LY228,270,RZU280,XZU28#199908-201109

MD.GRAY,TRIM1#

sub71834-60090

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72720-37010iBU28#,LY228,270,RZU280,XZU28#199908-200610

72019RETAINER SUB-ASSY, SEAT TRACK, REAR RH

main72019-37010iBU28#,LY228,270,RZU280,XZU28#199908-200610

72021ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

main72740-37010iBU28#,LY228,270,RZU280,XZU28#199908-200610

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-37040iBU28#,LY228,270,RZU280,XZU28#199908-200610

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-37040iBU28#,LY228,270,RZU280,XZU28#199908-200610

72211HANDLE, SEAT TRACK ADJUSTING

main72211-37030iBU28#,LY228,270,RZU280,XZU28#199908-200610

72329COVER, SEAT ADJUSTER BOLT

main72329-60010-B0iBU28#,LY228,270,RZU280,XZU28#199908-201109

MD. GRAY,TRIM1#

sub72329-60010

72380CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

main72380-60110iBU28#199908-200011

sub72380-60150

main72380-60150iBU28#,LY228,270,RZU280,XZU28#200011-200610

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72525-60050-B0iBU28#,LY228,270,RZU280,XZU28#199908-201109

MD.GRAY,TRIM1#

sub72525-60050

72607CSTRIKER SUB-ASSY, FRONT SEAT CUSHION LOCK

main72607-37010iBU280..LPG199908-200610

72728APROTECTOR, FRONT SEAT RECLINING, INNER RH

main72728-60010iBU28#,LY228,270,RZU280,XZU28#199908-200610

72729APROTECTOR, FRONT SEAT RECLINING, INNER LH

main72729-60010iBU28#,LY228,270,RZU280,XZU28#199908-200610

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

9011910229

main90119-10229

9046708093

main90467-08093

91511B0816

main91511-B0816

91611B0816

main91611-B0816

9161261030

main91612-61030

91642H1028

main91642-H1028

9324056025

main93240-56025

31 parts on this diagram · 3 diagrams in section
