SLIDE ROLLER & RAIL

68043ARM SUB-ASSY, FRONT SLIDE DOOR UPPER ROLLER, RH

main68043-37010iRZU280..D;BU28#..DSL199908-200406

68044ARM SUB-ASSY, FRONT SLIDE DOOR UPPER ROLLER, LH

main68044-37010iBU280..LPG199908-200306

68307AROLLER SUB-ASSY, SLIDE DOOR

main68307-37010×2iBU280..LPG199908-200306

68308AROLLER SUB-ASSY, SLIDE DOOR

main68307-37010×2iBU280..LPG199908-200306

68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE

main68334-95700×2iBU280..LPG199908-200306

68334CROLLER, SLIDE DOOR CENTER GUIDE

main68334-95700×2iBU280..LPG199908-200306

68403ARAIL SUB-ASSY, FRONT SLIDE DOOR, CENTER RH

main68403-37010iBU280..LPG199908-200306

68404ARAIL SUB-ASSY, FRONT SLIDE DOOR, CENTER LH

main68404-37010iBU280..LPG199908-200306

68405ARAIL SUB-ASSY, FRONT SLIDE DOOR, UPPER RH

main68411-37010iBU280..LPG199908-200306

68406ARAIL SUB-ASSY, FRONT SLIDE DOOR, UPPER LH

main68412-37010iBU280..LPG199908-200306

68430ROLLER ASSY, FRONT SLIDE DOOR, CENTER RH

main68430-37010iBU28#199908-200108

main68430-37011iBU280..LPG200108-200306

main68430-37012iBU28#,LY228,270,RZU280200309-200404

main68430-37013iBU28#;RZU280..D200404-200406

68440ROLLER ASSY, FRONT SLIDE DOOR, CENTER LH

main68440-37010iBU28#199908-200108

main68440-37011iBU280..LPG200108-200306

main68440-37012iBU28#,LY228,270,RZU280200309-200404

main68440-37013iBU28#;RZU280..D200404-200406

68450ROLLER ASSY, FRONT SLIDE DOOR, LOWER RH

main68450-37010iBU280..LPG199908-200306

68457BASE, FRONT SLIDE DOOR CUSHION

main68457-37010iBU280..LPG199908-200306

68457ABASE, FRONT SLIDE DOOR CUSHION

main68457-37010iXKU280200610

68460ROLLER ASSY, FRONT SLIDE DOOR, LOWER LH

main68460-37010iBU280..LPG199908-200306

68465BRACKET, FRONT SLIDE DOOR LOWER ROLLER

main68465-37010iBU280..LPG199908-200306

68465ABRACKET, FRONT SLIDE DOOR LOWER ROLLER, LH

main68466-37010iBU280..LPG199908-200306

68478PLATE, FRONT SLIDE DOOR ARM STOPPER

main68478-37010iBU280..LPG199908-200306

68478APLATE, FRONT SLIDE DOOR ARM STOPPER

main68478-37010iBU280..LPG199908-200306

68491PACKING, FRONT SLIDE DOOR LOWER ROLLER

main68491-90D00iBU280..LPG199908-200306

68491APACKING, FRONT SLIDE DOOR LOWER ROLLER

main68491-90D00iBU280..LPG199908-200306

68701AHINGE SUB-ASSY, FRONT SLIDE DOOR, CENTER RH

main68701-37020iBU280..LPG200108-200306

68702HINGE SUB-ASSY, FRONT SLIDE DOOR, CENTER LH

main68702-37020iBU280..LPG200108-200306

68703AHINGE SUB-ASSY, FRONT SLIDE DOOR, UPPER RH

main68704-26010iRZU280..D;BU28#..DSL199908-200406

68704AHINGE SUB-ASSY, FRONT SLIDE DOOR, UPPER LH

main68703-26010iBU280..LPG199908-200306

69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE

main69043-95D00×4iBU280..LPG199908-200306

69405ASTOP, FRONT SLIDE DOOR

main69405-37010iRZU280..D;BU28#..DSL199908-200406

main69406-37010iRZU280..D;BU28#..DSL199908-200406

69413STOP, SLIDE DOOR DOWN MALE

main69416-95D00×4iLY228,270199908-200407

75498BSEAL, OUTSIDE MOULDING, NO.2

main75498-90F01×18iBU280..LPG199908-200306

6842137011RING, NO.1(FOR WINDOW GLASS FRONT STOP)

main68421-37011

9011906022

main90119-06022

9011906748

main90119-06748

9011906837

main90119-06837

9015960377

main90159-60377

9017908046

main90179-08046

9020910010

main90209-10010

9024508013

main90245-08013

9038908026

main90389-08026

9056006020

main90560-06020

91631B0820

main91631-B0820

9163360825

main91633-60825

9165160616

main91651-60616

9616000400

main96160-00400

9616000600

main96160-00600

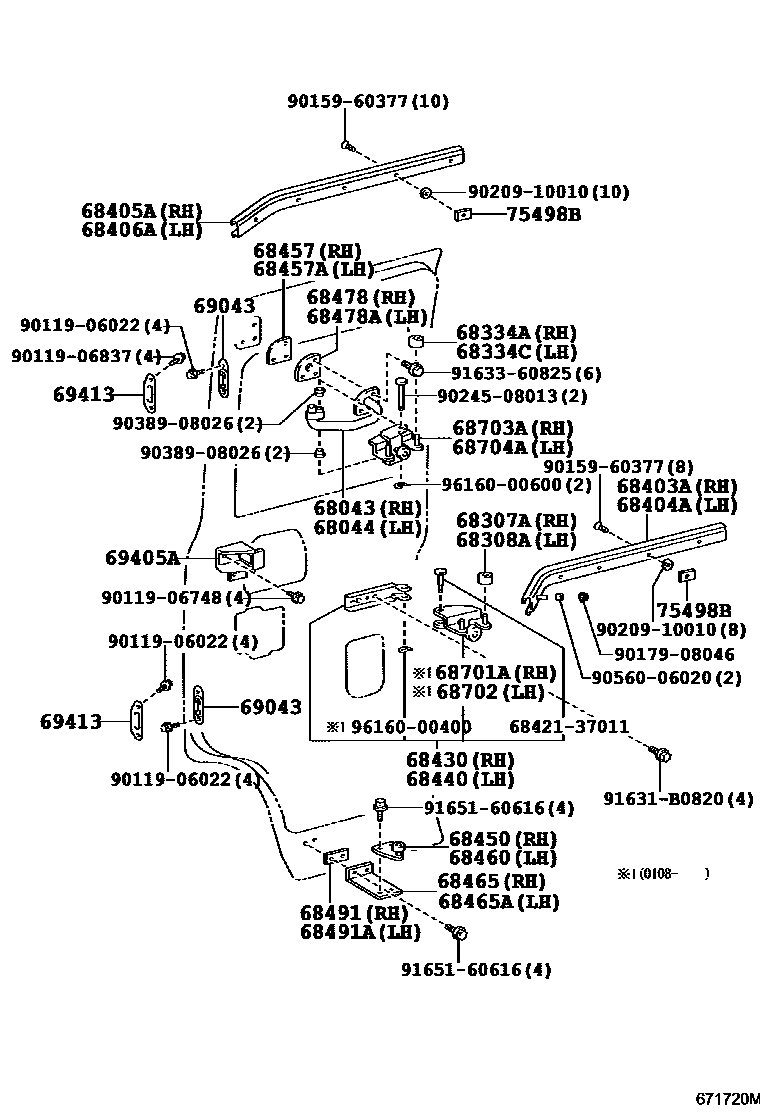

45 parts on this diagram · 1 diagram in section
