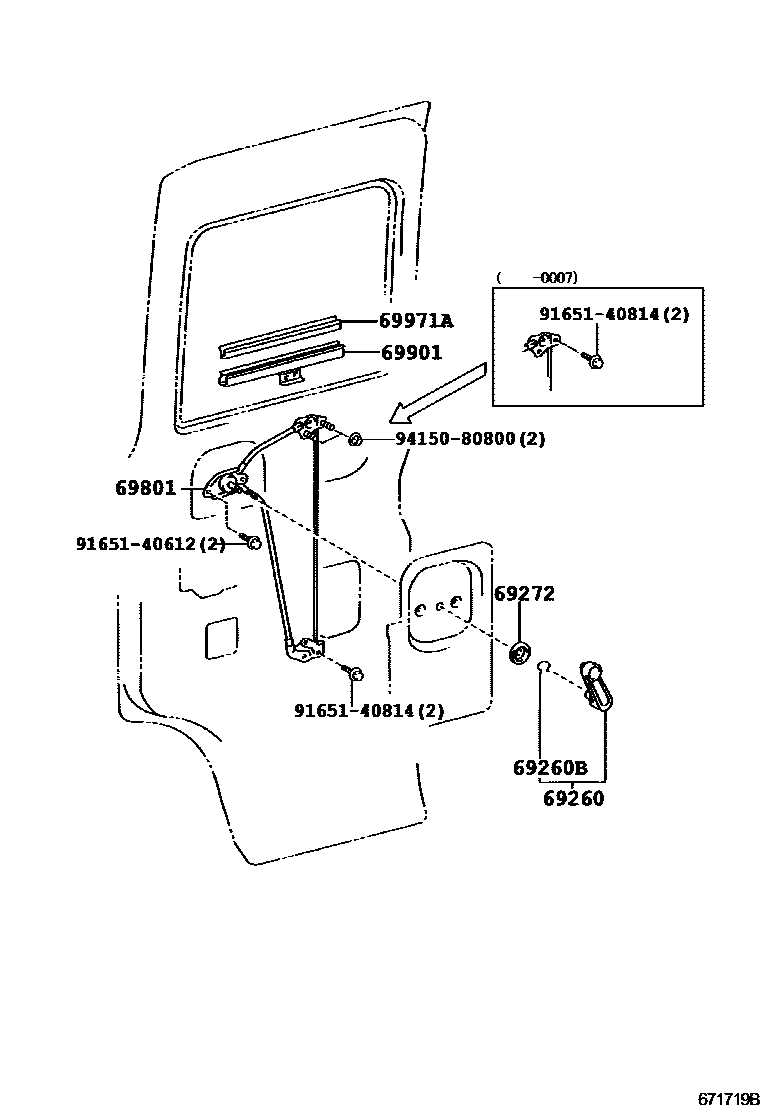

FRONT DOOR WINDOW REGULATOR & HINGE

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14030-B1iBU28#,LY228,270,RZU280,XZU28#199908-201109

BLUISH GRAY,TRIM1#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iLY228,270199908-200610

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69272-30010iXKU280200610

main69272-30010-08iXZU28#199908-200610

NATURAL WHITE,TRIM1#

sub69272-30010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-37060iBU28#199908-200007

main69810-37061iBU280..LPG200007-200610

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-90D00iBU28#,LY228,270,RZU280,XZU28#199908-201109

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-90D00iBU28#,LY228,270,RZU280,XZU28#199908-201109

9165140612

main91651-40612

9165140814

main91651-40814

9415080800

main94150-80800

9 parts on this diagram · 1 diagram in section
