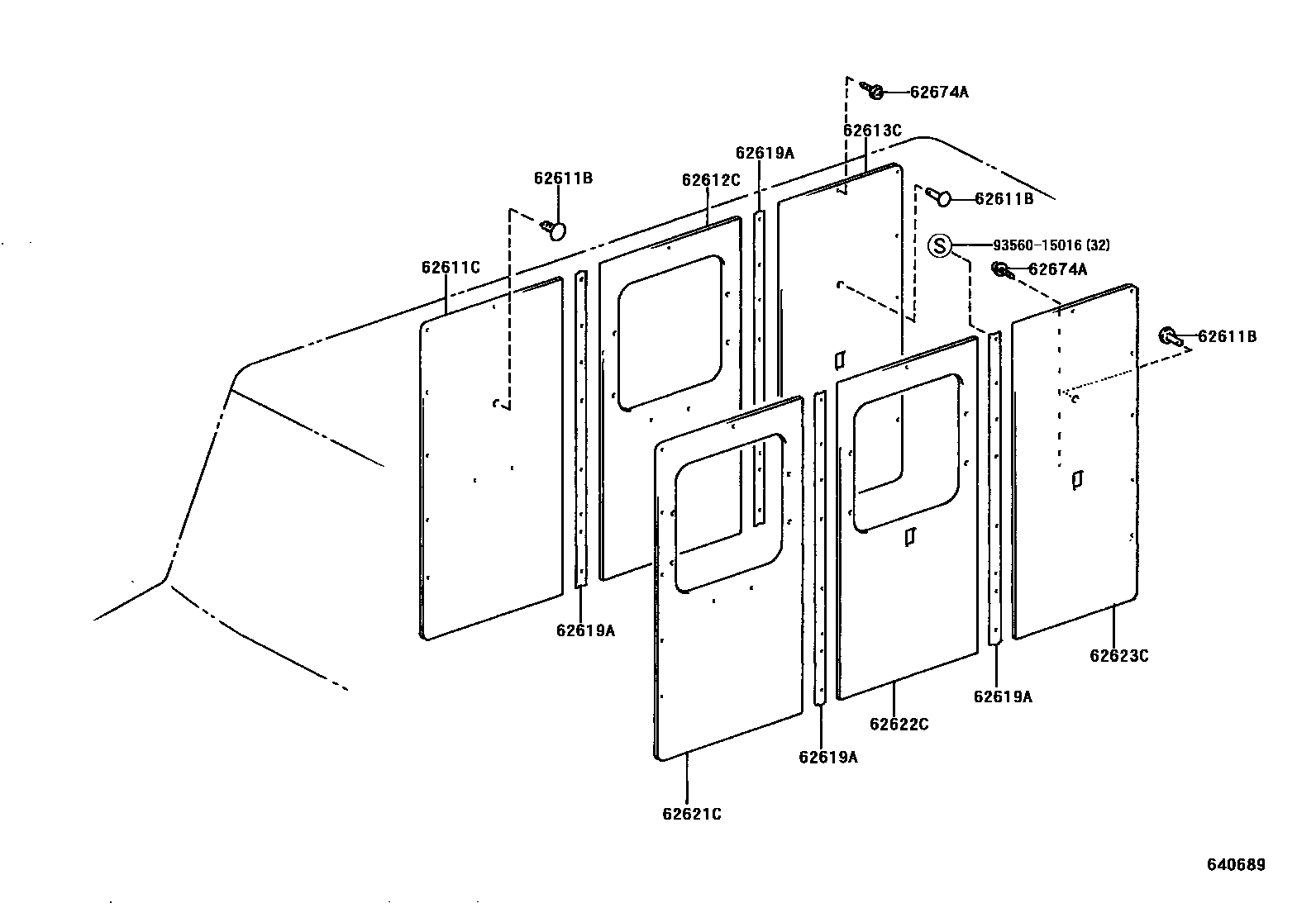

INSIDE TRIM BOARD

0001 1 0002 1

62611BCLIP (FOR SIDE TRIM BOARD)

main67771-36030-A0iXKU280200610-201109

IVORY,TRIM1#

sub67771-36030

main90467-08104-A1iBU280..D..DSL199908-200406

sub90467-08104

main90467-08104-A1iBU280..D..DSL199908-200312

sub90467-08104

main90467-08104-A1iBU280..D..DSL199908-200312

sub90467-08104

main90467-08104-A1iBU281,LY228,270200001-200610

IVORY,TRIM1#

sub90467-08104

62611CBOARD, SIDE TRIM NO.1, RH

main62611-37010iLY228,270199908-200610

main62611-37020iBU280..D..DSL199908-200407

62612CBOARD, SIDE TRIM NO.2, RH

main62612-37010iBU280..N..DSL199908-200610

main62612-37010iBU280..LPG200001-200610

main62612-37020iBU280..D..DSL199908-200406

main62612-37030iBU280..D..DSL199908-200406

main62612-37040iBU280..DSL199908-200610

main62612-37050iBU280..D..DSL199908-200406

main62612-37060iBU281200003-200610

main62612-37120iLY228,270200108-200407

main62612-37130iLY228,270200108-200407

main62612-37140iLY228,270200108-200407

main62612-37150iLY228,270200108-200407

main62612-37160iLY228,270200108-200407

main62612-37170iXKU280200610

62613CBOARD, SIDE TRIM NO.3, RH

main62613-37010iRZU280,XZU280..N200001-200610

main62613-37010iBU280..DSL199908-200406

main62613-37020iBU280..D..DSL199908-200406

main62613-37030iBU281200003-200610

main62613-37060iXKU280200610

62619APLATE, SIDE TRIM SET

main62619-37010iBU280..LPG199908-200610

62621CBOARD, SIDE TRIM NO.1, LH

main62621-37010iBU280..D..DSL199908-200407

main62621-37020iBU280..D..DSL199908-200407

main62621-37020iBU280..LPG199908-200610

main62621-37030iLY228,270199908-200407

main62621-37040iLY228,270199908-200407

62622CBOARD, SIDE TRIM NO.2, LH

main62622-37010iBU280..D..DSL199908-200406

main62622-37020iBU280..D..DSL199908-200406

main62622-37030iBU280..D..DSL199908-200406

main62622-37040iBU280..LPG200001-200610

main62622-37040iBU280..DSL199908-200406

main62622-37050iBU281200003-200610

main62622-37100iLY228,270200108-200407

main62622-37110iLY228,270200108-200407

main62622-37120iLY228,270200108-200407

main62622-37130iLY228,270200108-200407

main62622-37140iLY228,270200108-200407

62623CBOARD, SIDE TRIM NO.3, LH

main62623-37010iBU280..D..DSL199908-200406

main62623-37020iBU280..DSL199908-200406

main62623-37020iRZU280..D;BU280..LPG200001-200610

main62623-37030iXZU281200003-200610

62674ARETAINER, QUARTER TRIM SET

main62674-37010iLY228,270200001-200403

sub62674-37011

main62674-37010iBU280..D..DSL199908-200406

sub62674-37011

main62674-37010iBU280..D..DSL199908-200406

sub62674-37011

main62674-37010iBU280..N..DSL199908-200403

sub62674-37011

main62674-37010iBU280..N..DSL199908-200402

sub62674-37011

main62674-37011iBU280..N200403-200610

main62674-37011iRZU280..D200403-200610

main62674-37011iLY228,270200403-200407

main62674-37011iXKU280200610

9356015016

main93560-15016

10 parts on this diagram · 2 diagrams in section
