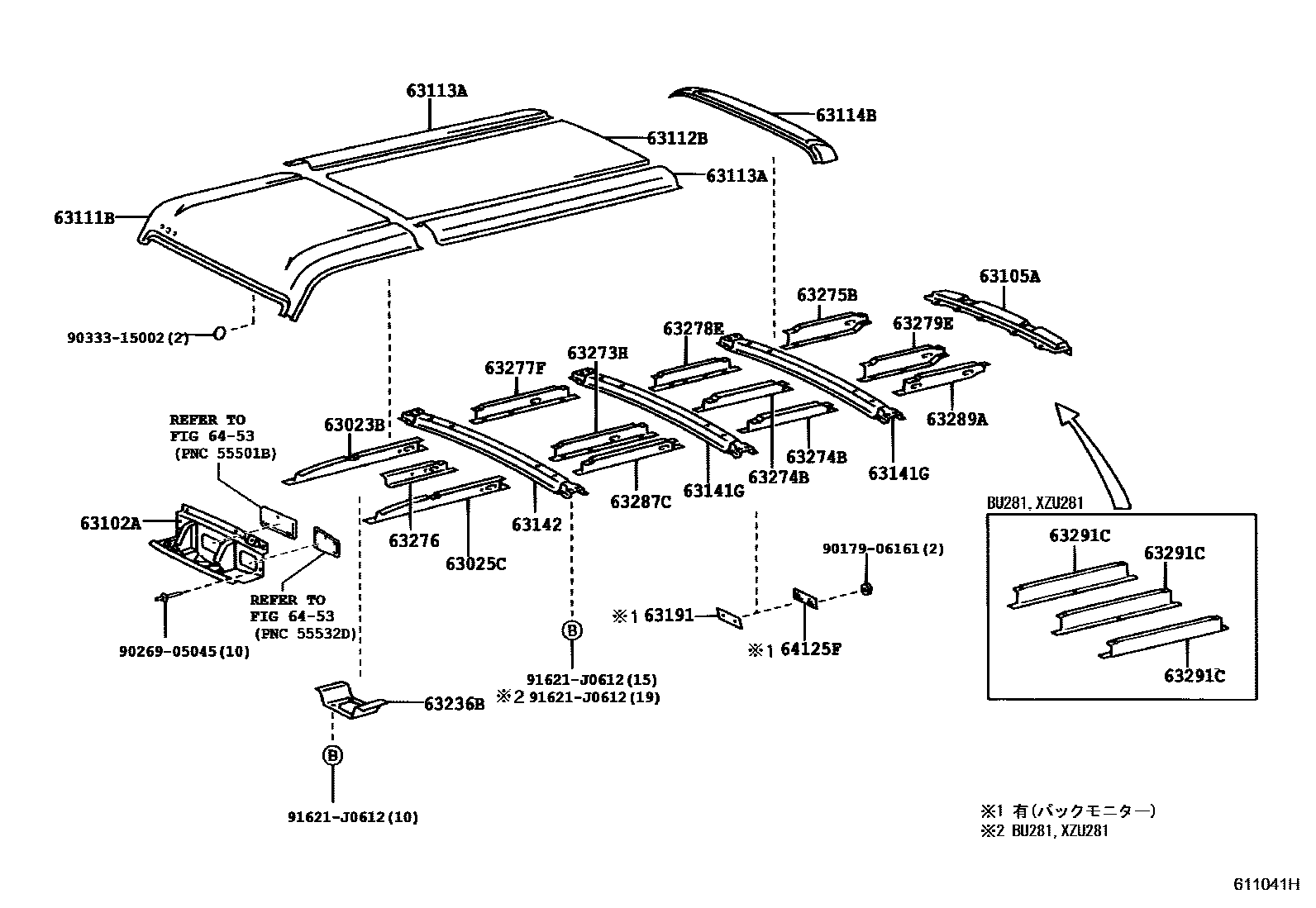

ROOF PANEL & BACK PANEL

0001 1 0002 1��(����-�-�) 0003 1

63023BSTRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.2

main63023-37010iLY228,270199908-200610

63025CSTRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.6

main63025-37010iXKU280199908-200610

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-37060iXKU280200610

main63102-37060iBU280..LPG199908-200610

main63102-37070iRZU280..D;BU28#..DSL199908-200610

sub63102-37060

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-37011iRZU280,XZU28#..N199908-200610

mainC370940010iBU280..D..DSL199908-200206

63111BPANEL, ROOF, NO.1

main63014-37010iXZU28#200406-200610

main63014-37010iBU28#;RZU280..D200306-200610

main63014-37020iBU280..D200306-200407

main63111-37210iLY228,270200108-200306

sub63014-37010

main63111-37210iBU280..LPG;BU28#..N..DSL199908-200306

sub63014-37010

main63111-37220iBU280,LY228,270..D..DSL199908-200306

sub63014-37020

63112BPANEL, ROOF, REAR

main63112-37050iXKU280199908-200610

main63112-37070iXZU281200003-200610

main63112-37080iLY228,270200108-200407

63113APANEL, ROOF, NO.3

main63113-37030iRZU280,XZU280..N199908-200610

main63113-37050iBU281200003-200610

main63113-37060iLY228,270200108-200407

63114BPANEL, ROOF, NO.4

main63115-37010iXKU280199908-200610

main63115-37040iXKU280199908-200610

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-37060iBU281199908-200610

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-37020iRZU280,XZU28#..N200001-200610

main63104-37020iBU280..DSL199908-200407

main63104-37030iBU280..D..DSL199908-200407

main63104-37040iBU280..D..DSL199908-200206

63191RETAINER, ROOF PANEL

main63191-37020iBU280..LPG199908-200610

63236BBRACKET, ROOM SPEAKER

main63236-37010iBU280..N..DSL199908-200407

main63236-37010iRZU280,XZU28#..N199908-200610

63273HSTRENGTH, ROOF PANEL, NO.3

main63273-37010iLY228,270199908-200610

63274BSTRENGTH, ROOF PANEL, NO.4 RH

main63274-37010iLY228,270199908-200610

63275BSTRENGTH, ROOF PANEL, NO.5

main63275-37010iBU280..LPG199908-200610

main63275-37030iLY228,270200108-200407

63276HOLDER, REMOVABLE ROOF HINGE, LH

main63276-37010iBU280..LPG199908-200610

63277FSTRENGTH, ROOF PANEL, NO.7 RH

main63277-37010iBU280..LPG199908-200610

63278ESTRENGTH, ROOF PANEL, NO.8 RH

main63081-37010iXKU280200410-200610

main63278-37010iLY228,270199908-200410

63279ESTRENGTH, ROOF PANEL, NO.9 RH

main63279-37010iRZU280,XZU28#..N199908-200610

63287CSTRENGTH, ROOF PANEL, NO.7 LH

main63287-37010iLY228,270199908-200610

63289ASTRENGTH, ROOF PANEL, NO.9 LH

main63289-37010iRZU280,XZU28#..N199908-200610

main63289-37020iLY228,270200108-200407

63291CSTRENGTH, ROOF PANEL, NO.10

main63291-37010iBU281200003-200610

64125FBRACKET, UPPER BACK PANEL

main64125-37020iLY228,270199908-200610

6453

9017906161

main90179-06161

9026905045

main90269-05045

9033315002

main90333-15002

91621J0612

main91621-J0612

28 parts on this diagram · 3 diagrams in section
