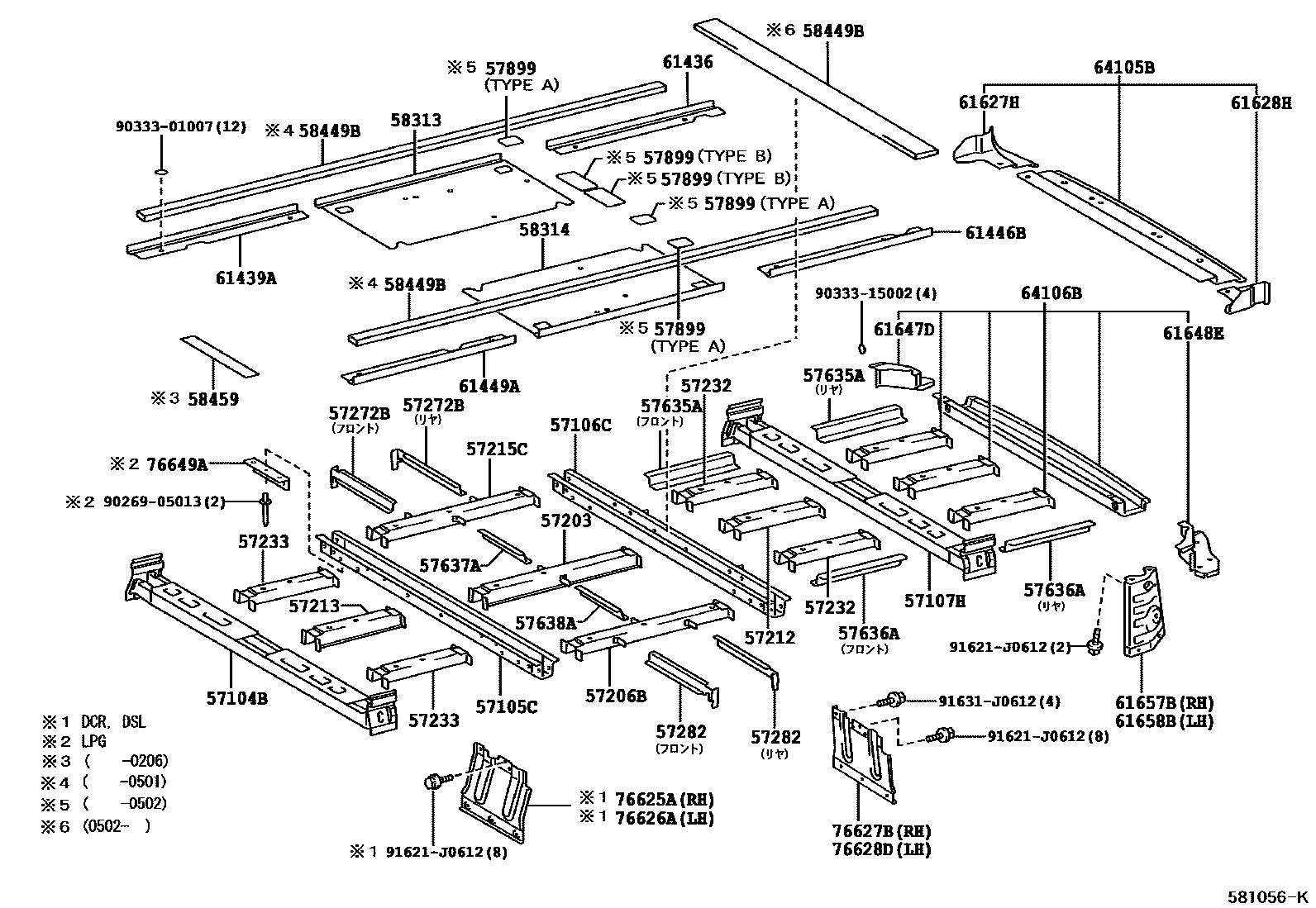

REAR FLOOR PANEL & REAR FLOOR MEMBER
57104BCROSSMEMBER SUB-ASSY, FLOOR, NO.4
57106CCROSSMEMBER SUB-ASSY, FLOOR, NO.6
57107HCROSSMEMBER SUB-ASSY, FLOOR, NO.7
57203STRENGTH SUB-ASSY, ANCHOR NO.3
57212STRENGTH, ANCHOR, NO.2
57213STRENGTH, ANCHOR, NO.3
57232STRENGTH, ANCHOR SIDE, NO.2
57233STRENGTH, ANCHOR SIDE, NO.3
57272BSTRENGTH, REAR FLOOR HOUSING, SIDE, RH
57282STRENGTH, REAR FLOOR HOUSING, SIDE, LH
57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH
57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH
57637AREINFORCEMENT, REAR FLOOR SIDE, RH
57638AREINFORCEMENT, REAR FLOOR SIDE, LH
57899SEAL, REAR FLOOR, REAR
58449BPACKING, BATTERY SERVICE HOLE COVER
58459PANEL, REAR FLOOR BOARD, NO.5 A
61436RAIL, NO.6 LOWER INNER, RH
61439ARAIL, NO.5 LOWER INNER, RH
61446BRAIL, NO.6 LOWER INNER, LH
61449ARAIL, NO.5 LWR INNER, LH
61627HEXTENSION, QUARTER PANEL, REAR LOWER RH
61628HEXTENSION, QUARTER PANEL, REAR LWR LH
61647DREINFORCEMENT, QUARTER PANEL, LOWER RH
61648EREINFORCEMENT, QUARTER PANEL, LOWER LH
61657BHOUSING, QUARTER PANEL END, LOWER RH
61658BHOUSING, QUARTER PANEL END, LOWER LH
64105BRAIL SUB-ASSY, LOWER BACK, OUTER
64106BRAIL SUB-ASSY, LOWER BACK, INNER
76625AMUDGUARD, REAR BODY, RH
76626AMUDGUARD, REAR BODY, LH
76627BMUDGUARD, REAR BODY, REAR RH
76628DMUDGUARD, REAR BODY, REAR LH
76649ABRACKET, REAR BODY MUDGUARD, NO.2 RH
9026905013
main90269-05013
9033301007
main90333-01007
9033315002
main90333-15002
91621J0612
main91621-J0612
91631J0612
main91631-J0612
44 parts on this diagram · 4 diagrams in section
