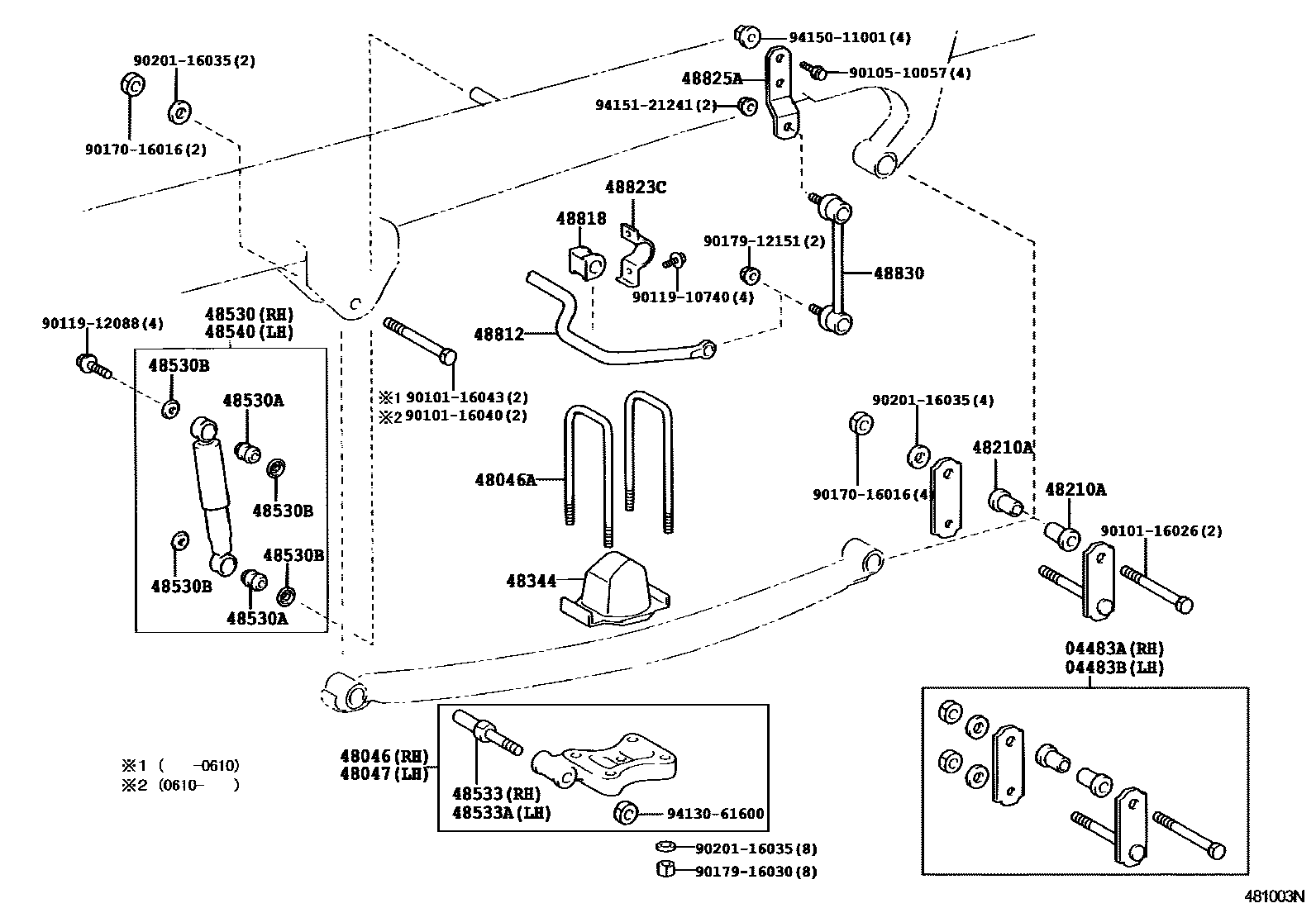

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 12-LEAF 0004 1

04483SHACKLE KIT, REAR SPRING

main04483-25040×2iLY228,270200108-200407

04483ASHACKLE KIT, REAR SPRING, RH

main04483-36080iBU28#,RZU280199908-200406

main04483-36140iXKU280200610

04483BSHACKLE KIT, REAR SPRING, LH

main04483-36080iBU28#,RZU280199908-200406

main04483-36140iRZU280,XZU28#200406-200610

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-25110iLY228,270200108-200407

main48046-37170iXKU280200610

main48046-37180iBU28#,RZU280,XZU28#199908-200610

48046ABOLT, U(FOR REAR SPRING)

main90117-16007×4iBU28#,RZU280,XZU28#199908-200610

main90117-16074×4iLY228,270200108-200407

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-25110iLY228,270200108-200407

main48046-37170iXKU280200610

main48046-37180iBU28#,RZU280,XZU28#199908-200610

48210SPRING ASSY, REAR RH

main48210-2E300iLY228,270200108-200407

main48210-37C70iXKU280200610

main48210-3V270iBU28#,RZU280,XZU28#199908-200610

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-23002×4iBU28#,RZU280,XZU28#199908-200610

48344STOPPER, BUMPER, REAR

main48344-37260×2iBU28#,RZU280,XZU28#199908-200610

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29755iLY228,270200108-200407

main48531-80172iBU28#199908-200302

main48531-80715iBU28#,RZU280,XZU28#200302-200610

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16010×4iLY228,270200108-200407

main90385-19006×4iBU28#,RZU280,XZU28#199908-200610

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011×4iXKU280200610

48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH

main48522-36041iBU280199908-200002

main48522-37030iBU28#,RZU280,XZU28#200002-200610

48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH

main48522-36041iBU280199908-200002

main48522-37030iXKU280200610

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29755iLY228,270200108-200407

main48531-80172iBU28#199908-200302

main48531-80715iBU28#,RZU280,XZU28#200302-200610

48812BAR, STABILIZER, REAR

main48812-37050iRZU280,XZU28#..N199908-200610

48818BUSH, STABILIZER, REAR

main48815-37060×2iRZU280..D;BU28#..DSL200209-200401

main48818-36020×2iBU28#199908-200209

48823CCOVER, REAR STABILIZER BRACKET

main48823-36030×2iBU28#199908-200209

main48823-37011×2iBU280..LPG200209-200306

48825ABRACKET, REAR STABILIZER END

main48825-37030×2iBU280..LPG199908-200306

48830LINK ASSY, REAR STABILIZER

main48830-36020×2iBU28#199908-200209

main48830-37020×2iBU280..LPG200210-200306

9010116026

main90101-16026

9010116040

main90101-16040

9010116043

main90101-16043

9010510057

main90105-10057

9011910740

main90119-10740

9011912088

main90119-12088

9017016016

main90170-16016

9017912151

main90179-12151

9017916030

main90179-16030

9020116035

main90201-16035

9413061600

main94130-61600

9415011001

main94150-11001

9415121241

main94151-21241

33 parts on this diagram · 4 diagrams in section
