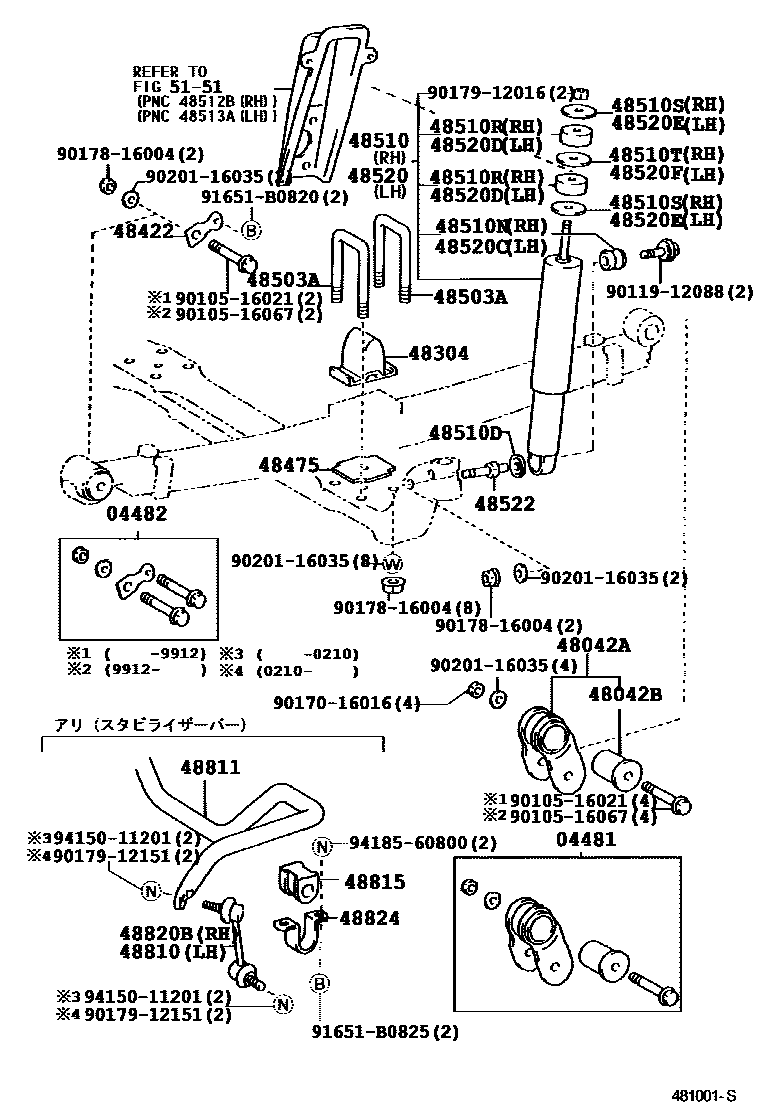

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 12-LEAF 0003 1 0004 12-LEAF

04481SHACKLE KIT, FRONT SPRING

main04481-37010×2iBU280..LPG200001-200306

main04481-37020×2iRZU280,XZU28#200406-200610

04482PIN KIT, FRONT SPRING

main04482-37040×2iRZU280,XZU28#200406-200610

main04484-36080×2iBU28#,RZU280199908-200406

48042ASHACKLE SUB-ASSY, FRONT SPRING, NO.2

main48042-37030×2iXKU280200610

48042BBUSH, FRONT SPRING NO.2 SHACKLE

main90389-16025×2iRZU280,XZU28#..N199908-200610

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-36150×2iBU280..LPG199908-200306

48422SUPPORT, FRONT SPRING PIN

main48422-36030×2iBU28#199908-200208

main48422-37010×2iRZU280..D;BU28#..DSL200208-200406

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iRZU280..N;BU280,XZU28#..DCR,LPG199908-200610

main48475-36090iXKU280200610

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90117-16071×4iXKU280200610

main90117-16080×4iBU280..LPG199908-200306

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-80082iBU280..LPG200001-200306

main48511-80090iLY228,270200108-200407

main48511-80113iRZU280,XZU28#200406-200610

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03011×2iBU280..LPG199908-200306

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90385-19006iBU280..LPG199908-200306

48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH

main90948-01004×2iBU280..LPG199908-200306

48510SRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH

main90948-02009×2iBU280..LPG199908-200306

48510TRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH

main90948-02054×2iBU280..LPG199908-200306

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-80082iBU280..LPG200001-200306

main48511-80090iLY228,270200108-200407

main48511-80113iRZU280,XZU28#200406-200610

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90385-19006iBU280..LPG199908-200306

48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH

main90948-01004×2iBU280..LPG199908-200306

48520ERETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH

main90948-02009×2iBU280..LPG199908-200306

48520FRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH

main90948-02054×2iBU280..LPG199908-200306

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-37030×2iBU280..LPG199908-200306

48810LINK ASSY, FRONT STABILIZER, LH

main48810-37010iBU28#199908-200210

sub90179-12151

main48810-37011iBU28#,RZU280200210-200406

48811BAR, STABILIZER, FRONT

main48811-25050iLY228,270200108-200407

sub48811-25051

sub48815-25060

main48811-37080iBU28#,RZU280199908-200406

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-25050×2iLY228,270200108-200407

sub48815-26420

main48815-26270×2iBU28#,RZU280199908-200406

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-37030iBU28#199908-200210

sub90179-12151

main48820-37031iBU28#,RZU280200210-200406

48824BRACKET, STABILIZER, FRONT

main48824-30110×2iBU28#,RZU280199908-200406

5151

9010516021

main90105-16021

9010516067

main90105-16067

9011912088

main90119-12088

9017016016

main90170-16016

9017816004

main90178-16004

9017912016

main90179-12016

9017912151

main90179-12151

9020116035

main90201-16035

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9415011201

main94150-11201

9418560800

main94185-60800

38 parts on this diagram · 4 diagrams in section
